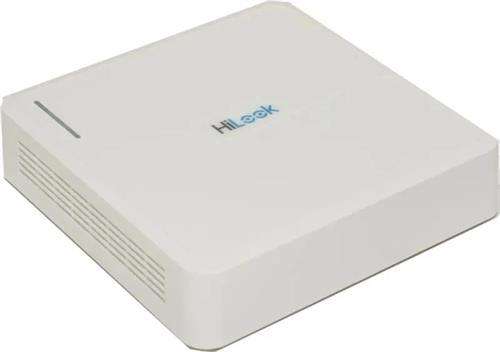

HiLook 8 Channel Hybrid High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 8 Channel Analogue and HD-TVI video input, BNC interface (1.0Vp-p, 75 ?),supporting coaxitron connection, Audio Input: 1-ch RCA and 8-ch via coaxial cable Audio via coaxial cable, SATA Interface Support up to 4TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 ￗ 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 5 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Deep learning based human and vehicle targets classification of Motion Detection 2.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cell phone, Retail Box , 1 Year Warranty
Product Overview
HiLook 8CH Hybrid DVR High Definition Stand Alone DVR
Features
ﾕH.265 Pro+/H.265 Pro/H.265 video compression
ﾕHDTVI/AHD/CVI/CVBS/IP video input
ﾕUp to 10-ch IP camera input (up to 5 MP)
Specifications
ﾕDescription: HiLook 8CH Hybrid DVR High Definition Stand Alone DVR
ﾕVideo Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
ﾕEncoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
ﾕFor 720p stream access: 720p/WD1/4CIF/VGA/CIF
ﾕFor SD stream access: WD1/4CIF/VGA/CIF
ﾕMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
ﾕFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
ﾕFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
ﾕFor 1080p and 720p stream access CIF/QVGA@15 fps
ﾕFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
ﾕSupport H.265+/H.265/H.264+/H.264 IP cameras
ﾕBNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
ﾕHDTVI Input:1080p25, 1080p30, 720p25, 720p30
ﾕAHD Input: 1080p25, 1080p30, 720p25, 720p30
ﾕHDCVI Input: 1080p25, 1080p30, 720p25, 720p30
ﾕHDMI Output: 1-ch, 1920 ￗ 1080/60Hz, 1280 ￗ 1024/60Hz, 1280 ￗ 720/60Hz
ﾕVGA Output: 1-ch, 1920 ￗ 1080/60Hz, 1280 ￗ 1024/60Hz, 1280 ￗ 720/60Hz
ﾕVideo Output Mode: HDMI/VGA simultaneous output
ﾕAudio Input: 1-ch RCA (2.0 Vp-p, 1 K?)
ﾕAudio Output: 1-ch, RCA (Linear, 1 K?)
ﾕTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPﾙ, HTTPS
ﾕ1, RJ45 10/100 Mbps self-adaptive Ethernet interface
ﾕPower Supply: 12 VDC, 1.5 A
