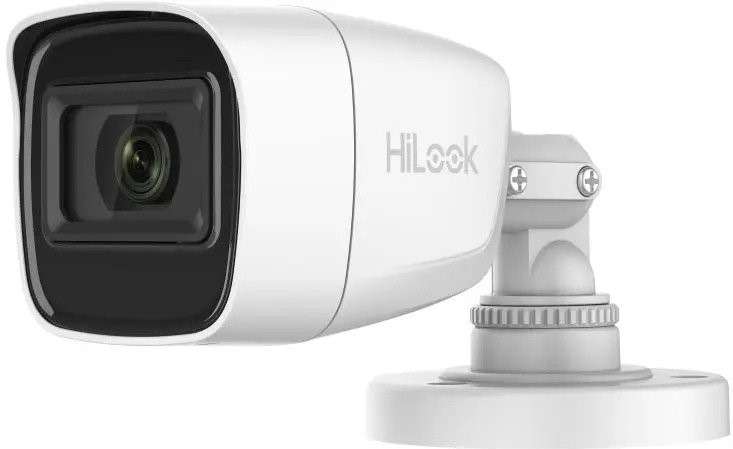

HiLook Outdoor Bullet High Quality 1080P 4in1, 2.8mm Lens, 20m IR Distance, 80 Degree View Angle, Metal Casing + built-in Microphone for AoC DVR, Retail Box, 1 Year warranty
HiLook Outdoor Bullet High Quality 1080P 4in1, 2.8mm Lens, 20m IR Distance, 80 Degree View Angle.
Product code:THC-B120-PS
Description: HiLook Outdoor Bullet High Quality 1080P 4in1, 2.8mm Lens
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System: PAL/NTSC
Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Supplement Light Range: IR Distance: up to 25 m
Image Parameters Switch: STD/HIGH-SAT
Image Settings: Brightness;Sharpness;Mirror;Smart IR;AGC
TVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Day/Night Mode: Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR): Digital WDR
Image Enhancement: DWDR;BLC;HLC;Global
Noise Reduction: 2D DNR
White Balance: Auto/Manual
Video Output: Switchable TVI/AHD/CVI/CVBS
Audio: Built-in mic
Power: 12 VDC ± 25%, max. 2.7 W
Dimension: 58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
Weight: Approx. 160 g (0.35 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less
