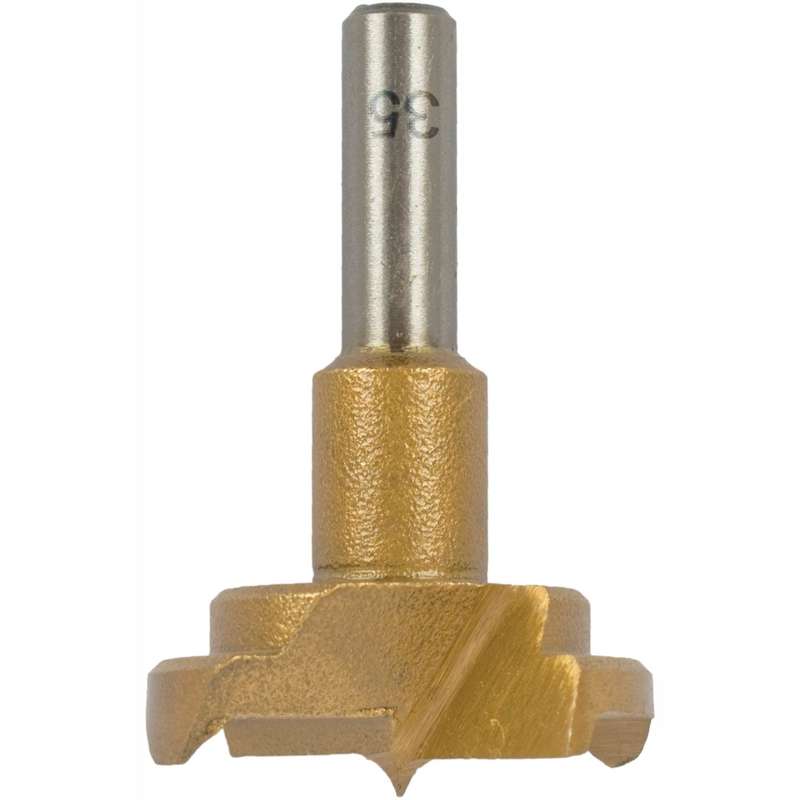

Hinge Boring Bit 35 Mm Titanium Coated

A Hinge Bore Is Required If You Need To Use Cup Shaped Euro Hinges For A
Wooden Cupboard Door.

How To Use The Hinge Bore Bit:

The Radius Of The Hinge Bore Is 17.5mm And It Is Also The Centre Point Distance. It
Would Be Safe To Have A 4 5mm Shoulder From The Side Of The Cupboard Door. So
The Distance From The Edge
To Start Boring Is 17.5+4.5=22mm.

It Is Critical To Bore The Correct Depth.
Most Cupboard Doors Vary In Thickness From 16 22mm. The Standard Depth To Bore Is 13mm For Most Euro Hinges.

&Nbsp;

&Nbsp;

Sharpening:

Hardwoods Require A Slow Speed When Boring. The Hinge Bore Can Easily Be
Sharpened Using A Diamond File. Click

Here To Have A Look At The Dmt Diamond Products.

Tip:

Use A Drill Press, It Is Easier To Control The Correct Depth Adjustment. It Is
Also Possible To Make A Jig For Future Hinge Boring.
