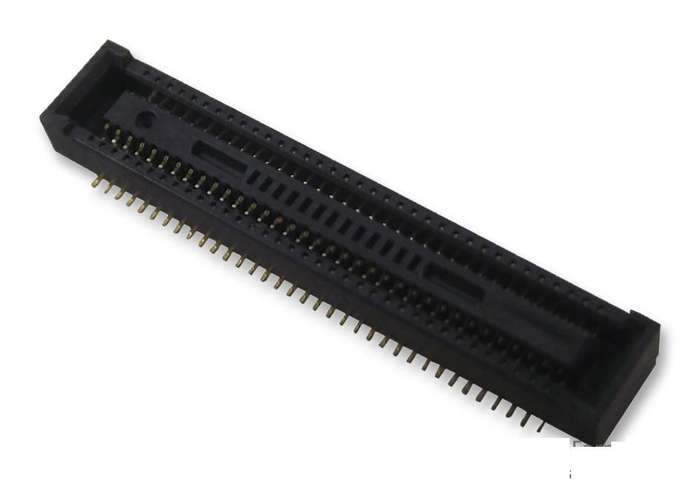

Hirose (DF40C(2.0)-70DS-0.4V(51)) Mezzanine Connector, Receptacle, 0.4 mm

Mezzanine Connector, Receptacle, 0.4 mm, 2 Rows, 70 Contacts, Surface Mount,Phosphor BronzeProduct OverviewThe DF40C(2.0)-70DS-0.4V(51) is a 70-position 2-row 0.4mm female unshieldedStacking Board Receptacle with gold plated phosphor bronze contacts and a blackLCP insulator. The DF40 series connector has 2mm stacking height, SMT mountingstyle and straight connector orientation. Space saving design has minimumconnector width, yet still remains a sufficient vacuum area for easypick-and-place 3.38mm mounting minimum width. The use of guide ribs allows0.33mm of self-alignment on this connector. Both sides of the connector havebeen reinforced with the addition of shock absorption ribs. Nickel platedbarriers were added to protect the contact areas from potential solder wicking.0.3A Rated current30VAC/DC Rated voltage5Gbps Transmission rate90mR Maximum contact resistance100V Maximum withstanding voltage30 Mating/unmating cyclesApplicationsIndustrialProduct InformationMezzanine Connector Type: Receptacle (View Associated Connectors)No. of Contacts: 70ContactsPitch Spacing: 0.4mmNo. of Rows: 2RowsConnector Mounting: Surface MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: DF40
