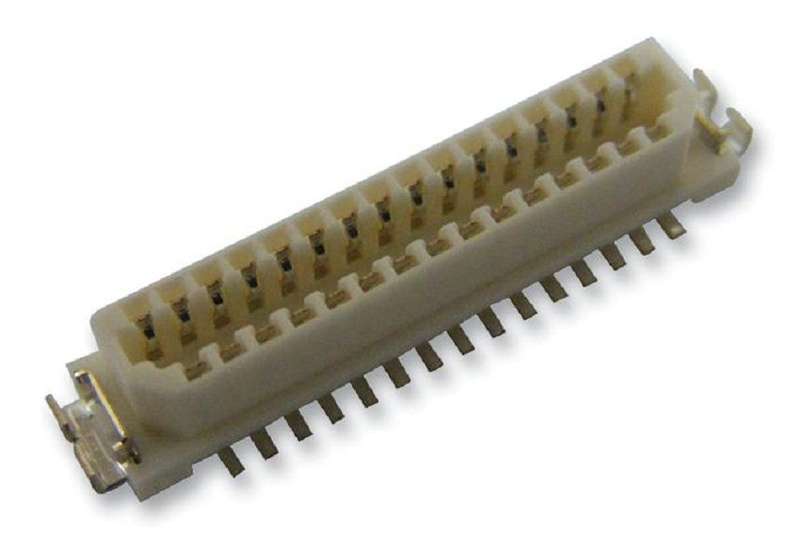

Hirose (DF9-31S-1V(32)) Mezzanine Connector, Receptacle, 1 mm, 2 Rows

Mezzanine Connector, Receptacle, 1 mm, 2 Rows, 31 Contacts, Surface Mount,Phosphor BronzeProduct OverviewThe DF9-31S-1V(32) is a 31-position 2-row 1mm female Board-to-board Receptaclewith tin plated phosphor bronze contacts, a beige polyamide insulator and tinplated brass metal fitting. The DF9 series connector has SMT mounting style andstraight connector orientation. Comply with the standard connector specificationfor the flat panel display interface, which U.S VESA. has selected as FPDI-1.The mating area is designed in a trapezoidal structure and perfectly preventsthe misinsertion despite the miniature size. The easy lock mechanism assures thefirm insertion and extraction properties as well as the insertion/extractionfeeling touch. The contact is constructed without the material frangible surfacein the contact portion and provides a smooth insertion and use feeling.0.5A Rated current150VAC Rated voltage50mR Maximum contact resistance500MR Minimum insulation resistance250V Maximum withstanding voltage30 Mating/unmating cyclesApplicationsImaging, Video & Vision, Audio, Communications & Networking, Computers &Computer PeripheralsProduct InformationMezzanine Connector Type: Receptacle (View Associated Connectors)No. of Contacts: 31ContactsPitch Spacing: 1mmNo. of Rows: 2RowsConnector Mounting: Surface MountContact Material: Phosphor BronzeContact Plating: Tin Plated ContactsProduct Range: DF9
