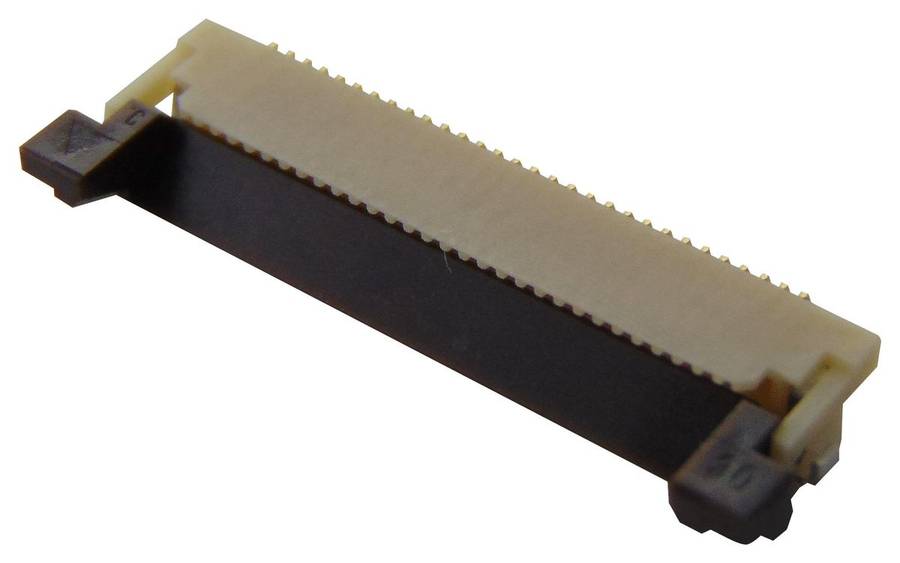

Hirose (FH12A-30S-0.5SH(55)) FFC / FPC Board Connector, ZIF, 0.5 mm

FFC / FPC Board Connector, ZIF, 0.5 mm, 30 Contacts, Receptacle, FH12, SurfaceMount, TopProduct OverviewThe FH12 series FFC/FPC Board Connector feature one-touch rotating ZIF mechanismis easier to operate and works with a light force. A clear tactile click isdelivered upon the successful completion of the mating process. The FH12Fversion connector supports a 0.18mm thick FPC (±0.05).Rotating one-touch ZIF mechanismClear tactile clickSupports high density mountingReinforced actuator provides an extra measure of security against actuatorbreakage0.5A Rated current50VAC Rated voltageApplicationsIndustrialProduct InformationPitch Spacing: 0.5mmNo. of Contacts: 30ContactsGender: Receptacle (View Associated Connectors)Product Range: FH12Contact Termination Type: Surface MountContact Position: TopNo. of Rows: 1 RowContact Plating: Gold Plated ContactsContact Material: Phosphor BronzeFFC/FPC Thickness: 0.3mm
