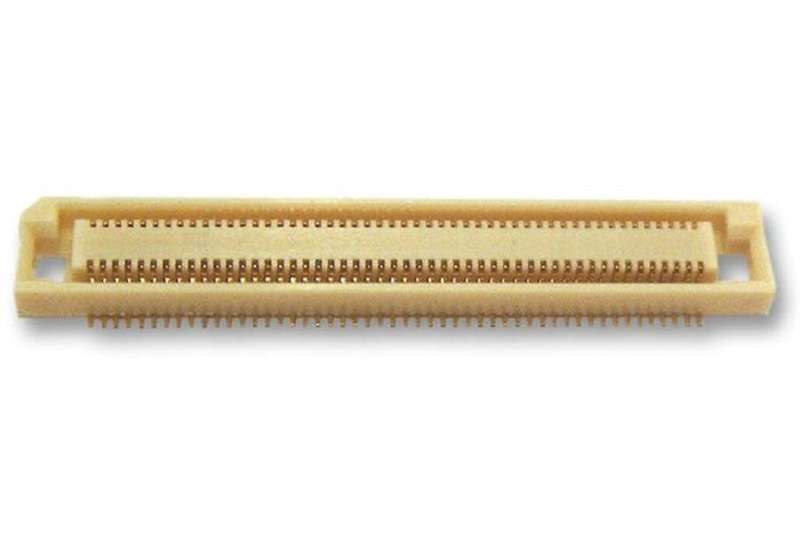

Hirose (FX8-60S-SV(21)) Mezzanine Connector, 0.6mm Height, Receptacle

Mezzanine Connector, 0.6mm Height, Receptacle, 0.6 mm, 2 Rows, 60 Contacts,Surface MountProduct OverviewThe FX8 series Stacking Connector feature stacking height of mated connectorranges from 3 to 16mm. The coplanar tolerance at the solder area is less than0.1mm. Built-in guide ribs and a chamfer allow for ±0.6mm of mis-alignment andensure easy mating. Bosses located on the bottom side of the connector differ inposition and diameter to prevent mis-orientating the parts on the board. Inorder to enhance mounting reliability and accuracy when mounting two of the sameconnectors at the same time, Hirose offers the option of having two connectorsattached to one another by means of a spacer. Pitch between the two connectorsis 11mm.SMT CoplanarityMis-insertion PreventionDual Connected ProductsApplicationsIndustrialProduct InformationMezzanine Connector Type: Receptacle (View Associated Connectors)No. of Contacts: 60ContactsPitch Spacing: 0.6mmNo. of Rows: 2RowsConnector Mounting: Surface MountContact Material: Phosphor BronzeContact Plating: Gold Plated ContactsProduct Range: FunctionMax FX8
