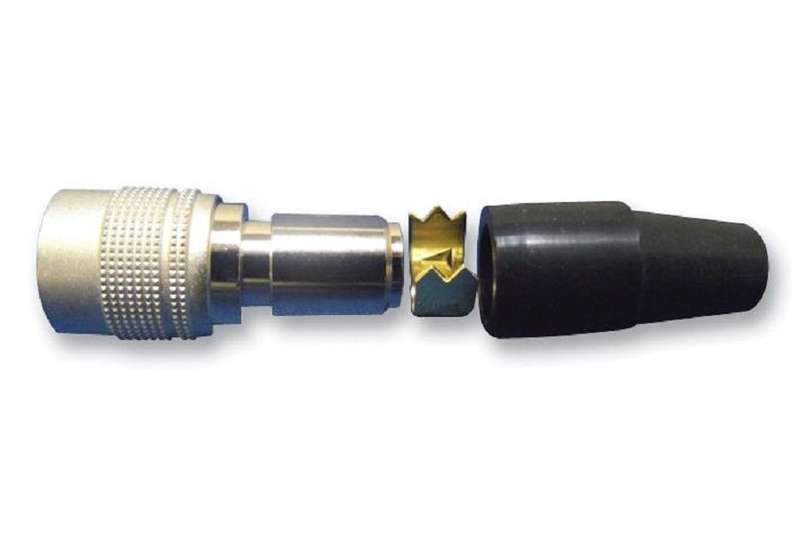

Hirose (HR10A-10P-10S(73)) Circular Connector, Plug, 10 Contacts

Circular Connector, HR10 Series, Cable Mount Plug, 10 Contacts, Solder Socket,Push-PullProduct OverviewThe HR10A-10P-10S(73) is a 10-position male high performance miniature CircularConnector with polyamide resin and PBT resin insulator, silver plated copperalloy contacts. The HR10 series socket has straight connector orientation,soldering wire termination method and push-pull locking style. It is recommendedfor use with 26AWG wire. Although small in size, full featured with a wellintegrated design. Easy to operate, the single-action push-pull lock structureallows for quick and efficient locking and unlocking.Simple, yet highly reliable design for compact, high density applicationsExtremely easy mating/unmating operations7mm Cable outer diameter2A Rated current100VAC, 140VDC Rated voltage10mR Maximum contact resistance1000MR Minimum insulation resistance300VAC for one minute Withstanding voltage1000 Mating/unmating cyclesApplicationsIndustrialProduct InformationProduct Range: HR10 SeriesCircular Connector Shell Style: Cable Mount PlugNo. of Contacts: 10ContactsCircular Contact Type: Solder SocketCoupling Style: Push-PullConnector Body Material: Brass Zinc Alloy BodyConnector Body Plating: NickelContact Material: Copper AlloyContact Plating: Silver
