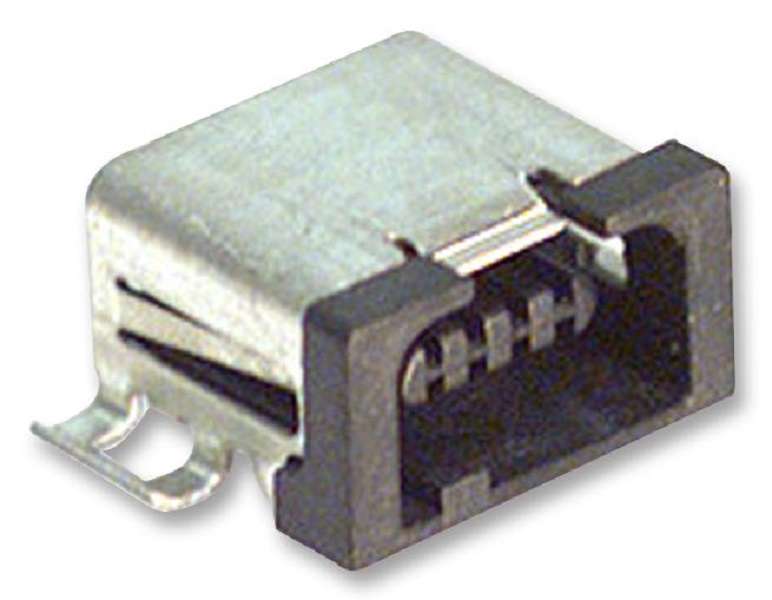

Hirose (MQ172X-4PA(30)) I/O Connector, Micro-Miniature, 4 Contacts

I/O Connector, Micro-Miniature, 4 Contacts, Receptacle, I/O, Surface Mount,MQ172, PCB MountProduct OverviewThe MQ172X-4PA(55) is a 4-position male micro-miniature Interface Receptaclewith black synthetic resin dielectric, gold plated phosphor bronze terminal,stainless steel metal fittings and lock case. The MQ172 series connector hasright angle connector orientation and standard on-board mounting side. Withdimensions of 3.9mm(H) x 6.4mm (W) x 6mm (D) for the 3 contact type, this seriesis ideal for today's miniature, lightweight electronic products. The 2-pointcontact design and lead construction provide a contact which is resistant tovibration and shocks. Use of a snap-lock system provides the sensation oflocking at the time of insertion. A wide selection of cable types can beutilized since the plug is of the soldered wiring type. Additionally, the plugcase and cord bushing are integrated into a one piece body, allowing for easyassembly by simply pressing the case into place after the harness work. Both 3and 4-contact types have keys to prevent incorrect insertion.Ultra miniature/low profile SMT designAutomatic mountingReliable contactHigh current capacityPositive lockingWide variety of suitable cablesKeys for preventing incorrect insertion3A Rated current40VAC, 30VDC Rated voltage30mR Maximum contact resistance250VAC Maximum withstanding voltage5000 Mating/unmating cyclesApplicationsPortable Devices, Audio, Communications & Networking, Computers & ComputerPeripherals, Consumer Electronics, Test & MeasurementProduct InformationNo. of Contacts: 4ContactsGender: Receptacle (View Associated Connectors)Connector Type: I/OContact Termination Type: Surface MountProduct Range: MQ172Connector Mounting: PCB MountContact Plating: Gold Plated ContactsContact Material: Phosphor Bronze
