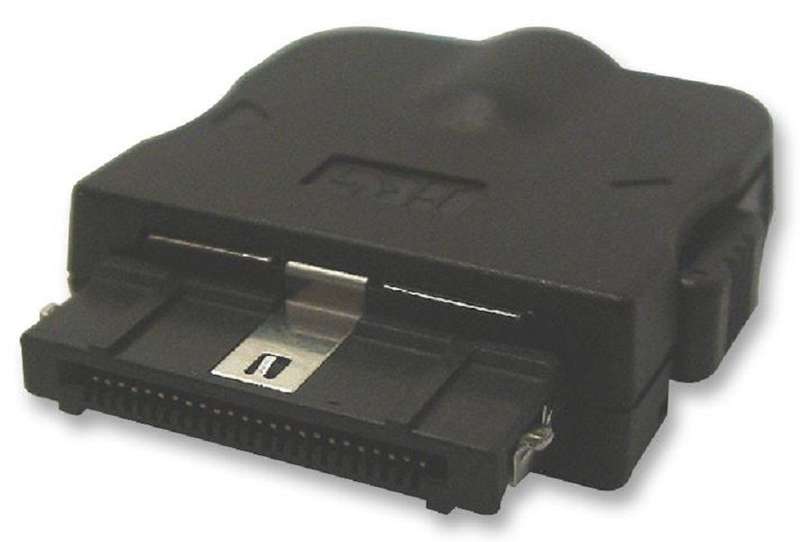

Hirose (ST40X-18S-CV(30)) I/O Connector, 18 Contacts, Plug, I/O, Solder

I/O Connector, 18 Contacts, Plug, I/O, Solder, ST, Cable MountProduct OverviewThe ST40X-18S-CV(80) is a 18-position 1-row female Interface Plug with goldplated brass contacts and glass filled polyacetal resin insulator. The ST seriesconnector has chrome plated brass/zinc alloy shell and straight connectororientation. Specifically designed for use as input/output (I/O) connectors onportable information devices. They feature a unique structure with high strengthwhich resists deformation and helps to prevent improper mating. 3.0mm height and0.5mm contact pitch connector prevents EMI as well. To assure continuousreliability of the connection in an unpredictable consumer environment, matedconnectors will withstand pull force of 49N maximum applied in any direction.Multiple polarization keys will not allow incorrect insertion of the matingplug. In addition, contacts will not be damaged when the user attempts to insertonly the corner of the mating plug.Strong locking mechanismPrevention against reversed or angle insertionOptimal I/F for small devices1A Rated current100VAC Rated voltage350V Maximum withstanding voltage10000 Mating/unmating cyclesApplicationsConsumer Electronics, Computers & Computer Peripherals, AudioProduct InformationNo. of Contacts: 18ContactsGender: Plug (View Associated Connectors)Connector Type: I/OContact Termination Type: SolderProduct Range: STConnector Mounting: Cable MountContact Plating: Gold Plated ContactsContact Material: Copper Alloy
