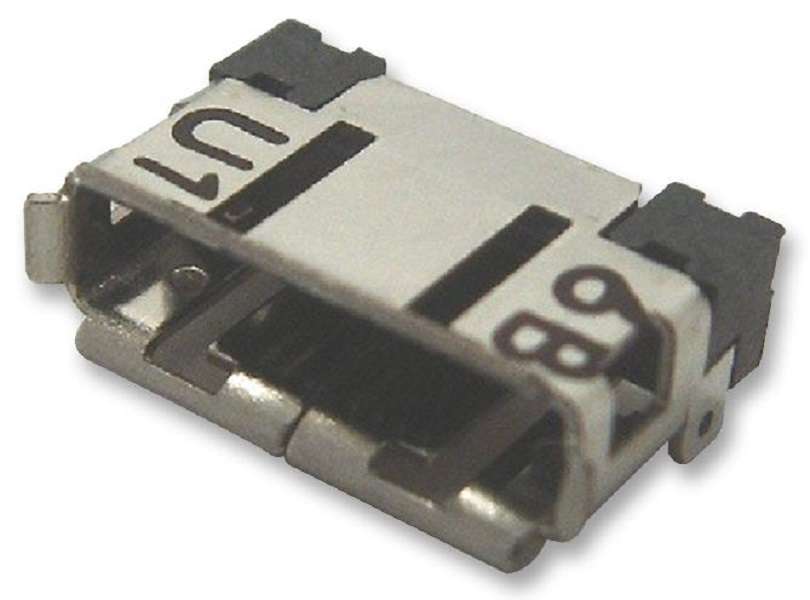

Hirose (ST60-10P(30)) I/O Connector, 10 Contacts, Receptacle, I/O

I/O Connector, 10 Contacts, Receptacle, I/O, Surface Mount, ST, PCB MountProduct OverviewThe ST60-10P is a 10-position 1-row male Interface Plug with gold plated brasscontacts and a glass filled polyacetal resin insulator. The ST series connectorhas tin plated brass/zinc alloy shell, right angle connector orientation andstandard on-board mounting side. Specifically designed for use as input/output(I/O) connectors on portable information devices. They feature a uniquestructure with high strength which resists deformation and helps to preventimproper mating. 3.0mm height and 0.5mm contact pitch connector prevents EMI aswell. To assure continuous reliability of the connection in an unpredictableconsumer environment, mated connectors will withstand pull force of 49N maximumapplied in any direction. Multiple polarization keys will not allow incorrectinsertion of the mating plug. In addition, contacts will not be damaged when theuser attempts to insert only the corner of the mating plug.Strong locking mechanismPrevention against reversed or angle insertionOptimal I/F for small devices1A Rated current100VAC Rated voltage350V Maximum withstanding voltage10000 Mating/unmating cyclesApplicationsConsumer Electronics, Computers & Computer Peripherals, AudioProduct InformationNo. of Contacts: 10ContactsGender: Receptacle (View Associated Connectors)Connector Type: I/OContact Termination Type: Surface MountProduct Range: STConnector Mounting: PCB MountContact Plating: Gold Plated ContactsContact Material: Copper Alloy
