SELECTED OPTION:
OUTPUT VOLTAGE: DC0V-12V
Description: 1. Switching power supply, convertAC 110V/220V toDC 0-12V(0-40A)/DC 0-24V(0-20A) /DC 0-36V(0-15A)/DC 0-48V(0-10A)480W.
2. Come with one knob switch: a 0-12/24/36/48V DCvoltagefully adjustable switch, built in a multi-loop high precision and high-end
potentiometer.
3.Dualhigh precisiondigital display the real-time output DC voltage and current.
4.Smart protections: support shortageprotection, overloadprotection, overvoltageprotection,surge protection, automatic recovery function.

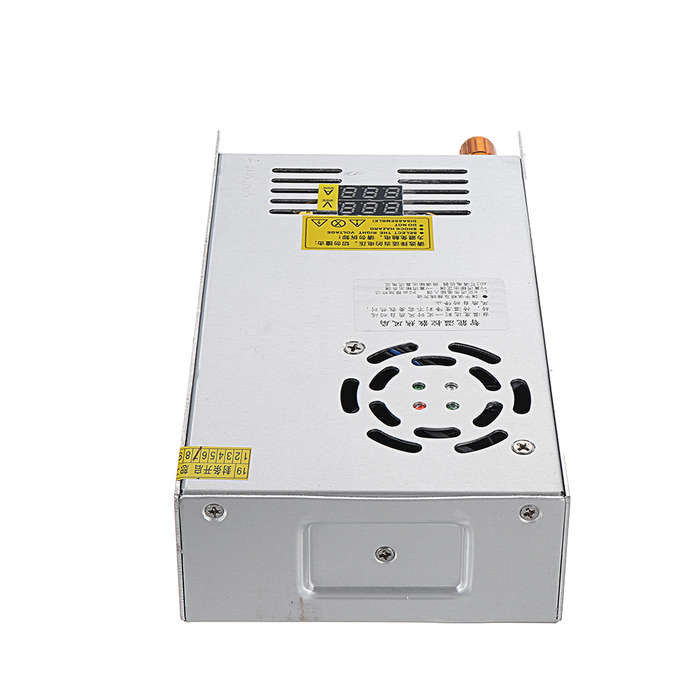

5.Built-in intelligent temperature control cooling fan: it start working when the temperature is up to certain value, and stop working when
no need cooling.

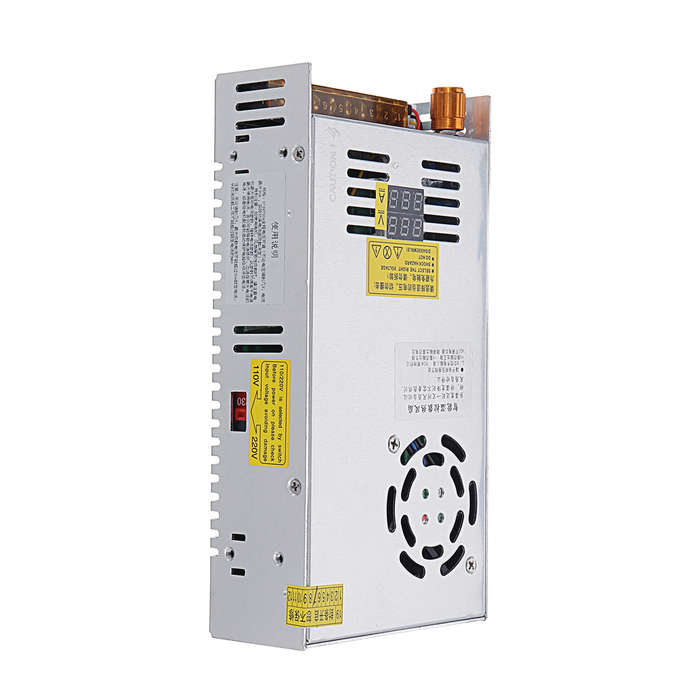

5. Dual input voltage, built-in 110V AC/220 V AC toggle switch(on the side), the defualt voltage is 220V AC.
6.Wide input voltage range, widely used in kinds of DCequipments,DC motor stepless speed adjustment,battery charging,Industrial
automation, LED light strip display,student experiment,communications, etc.
Specification: Product: Switching Power Supply
Type: AC/DC power

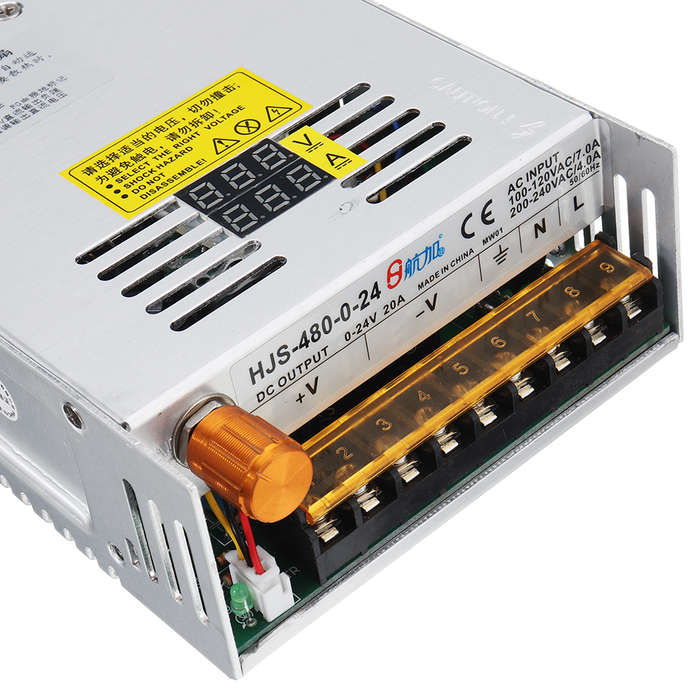

Model:HJS-480
Transistor Connection: Half bridge
PCB: FR-4 double sides double layers
Chip: Imported 494 chip
Input Voltage: AC 110V/220V±15%
Output:
DC 0-48V 0-10A (Max adjustable to 50V)
DC 0-36V 0-15A (Max adjustable to 38V)
DC 0-24V 0-20A(Max adjustable to 20V)
DC 0-12V 0-40A (Max adjustable to 15V)
Power: 0-480W
Output Voltage Accuracy: 0.1(%)
MV: <100MV
Load Regulation: 100% fully adjustable
Output VoltageRegulation:100% fully adjustable
Input Frequency Range: 47/63Hz
Output LCD Screen: 0.56 Inch
Modulation Mode: PWM
Output Start Time: a2S(120V AC),a1S(230V AC)
Output Hold Time: a10mS(120V AC),a20mS(230V AC)
Cooling Fan Type: Intelligent temperature control
Dielectric Strength: Input-Output: AC1500V, 1min
Input-Housing:AC1500V, 1min
Output-Housing:DC500V, 1min
Working Temperature: -10a~+60a
Working Humidity: 20%~90%RH(nocondensation)
SecurityStandard :EN/UL60950
EMC Standard:EN55022 Class B,EN61000-4-2/-3/-4/-5/-6/-11

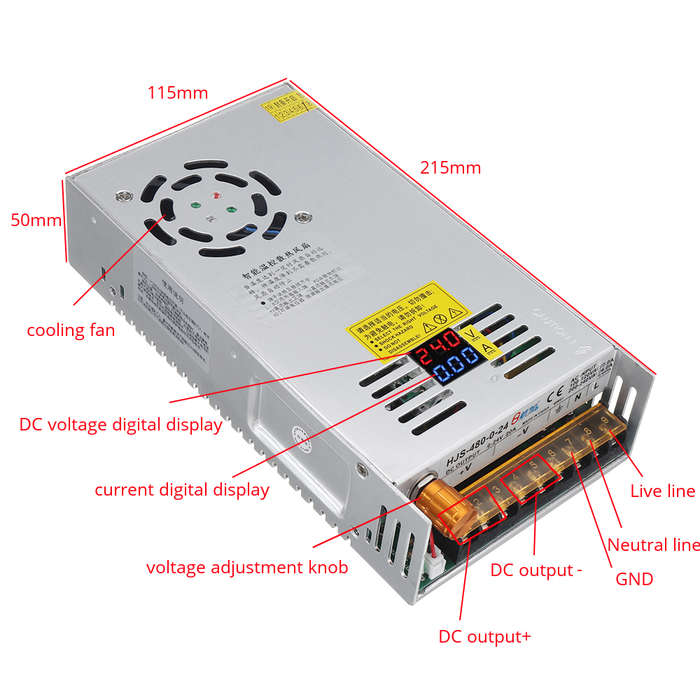

Size: Approx. 215X115X50mm
Gross Weight: Around 900g
Note: 1. This product can work normally only when the input voltage is AC 110V or AC 220V, make sure that the local Using voltage is AC
110V or AC 220V before you place an order.

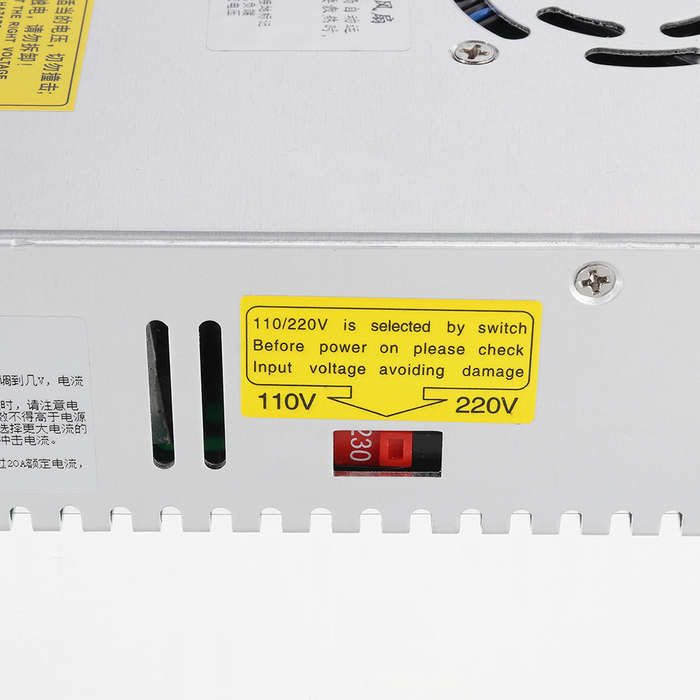

2. The default input voltage is AC 220V, 110/220V is selected by switch on the side of the device, before power on please check input
voltage avoiding damage.
2.The max current is 10A/15A/20A/40A, so any device with less than10A/15A/20A/40A current can be used, any device with a current
10A/15A/20A upper cannot be used.
3.When using inductive loads such as motors and fans, please pay attention to the large starting current parameters of the motor, which
should not be higher than the large operating current of the power supply, otherwise the power supply may be damaged. The power supply
with larger current should be selected, or the motor should be equipped with soft starting protection circuit to absorb shock current.

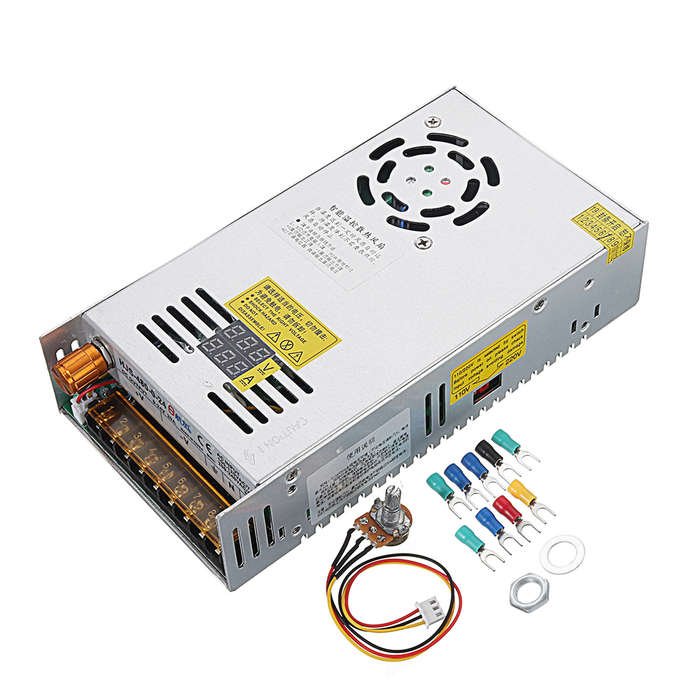

Package Included: 1 X Switching Power Supply
9 X Terminals
1 XExternal Potentiometer
