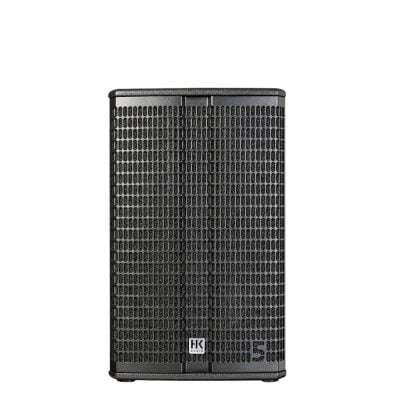

HK Audio Linear 5 MKII 112 XA – 12″ Active Speaker

HK AudioLINEAR 5 MKII 112 XA Compact 12 Multifunctional Active Loudspeaker

The most compact 12 multifunctional mid/high unit in its speaker class.
The LINEAR 5 MK II 112 XA is the most compact and lightest multifunctional mid/high unit in its class. A remote-controllable DSP with 4 directly selectable presets ensures assertive sound and maximum usable sound pressure without distortion. The DSP Out allows the separately processed input signal to be routed to an additional, non-network-compatible speaker. A sturdy birch multiplex hybrid enclosure and the extensive range of accessories make the LINEAR 5 MK II 112 XA a strong partner for bands and sound technicians — either as a powerful system mid/high unit with matching subwoofers or as a transverse stage monitor.

Features

— Most compact and lightest multifunctional mid/high unit in its class
— Enclosure shape with 31° monitor slope
— Remote-controllable high-performance DSP with integrated directly selectable presets for the most common applications: Flat, Monitor, Low Cut, Remote
— DSP Out: balanced XLR output, routes the input signal to a non-networked speaker. The audio signal applied here can be extensively modified using the DSP CONTROL software
— Lockable EtherCon connector for connection to a Mac or PC to control the system
— Balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker
— 12 woofer and tweeter with 1.7 voice coil
— 1200 W peak power bi-amped Class-D power amplifier
— Rotatable horn, 80° x 60° dispersion pattern
— HK Audio DuoTilt with 3° or 7° inclination
— Hybrid enclosure (birch multiplex/MDF)
— Three reinforced M8 (AP-8) fixing points
— Lockable V-Lock mains cable
— 5-year manufacturer warranty after registration
— Made in Germany
— Optional: Weather Protective Cover
