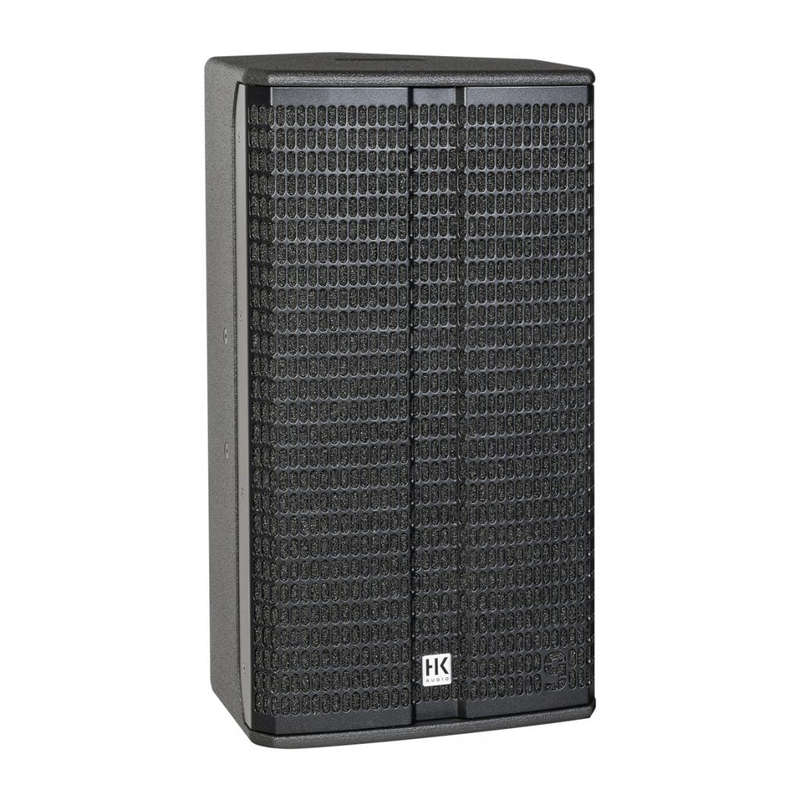

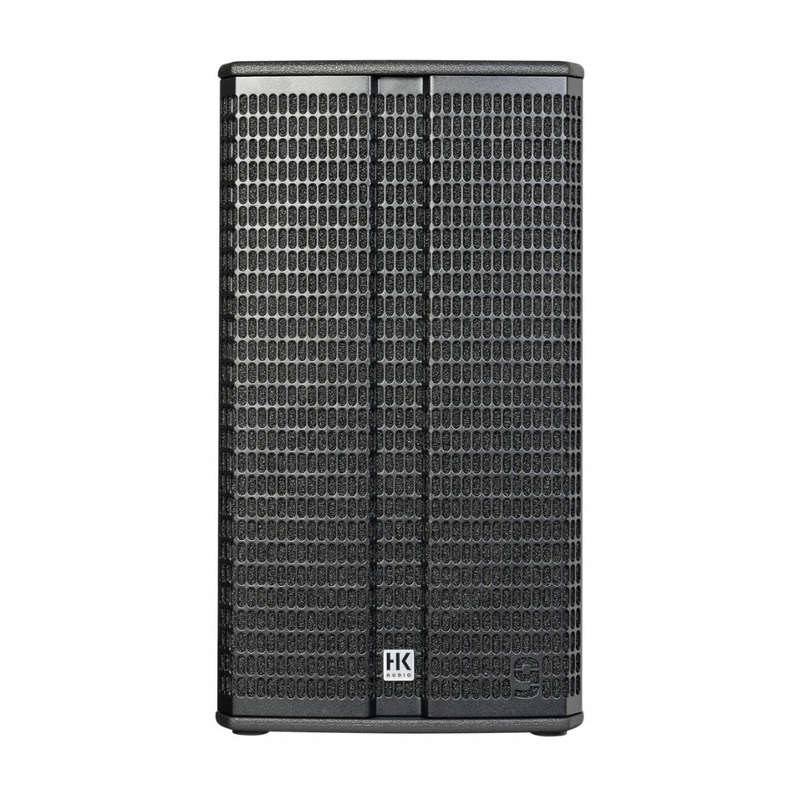

HK Audio LINEAR 9 112 XA Multifunctional Speaker - Each - Black
Optimised horns for perfect dispersion behaviour
The dispersion angle of each speaker's horn is optimised for its intended use. The 12" LINEAR 9 112 XA speaker offers a dispersion angle of 70° x 50 for medium sound coverage depths. It can be rigged either via the rigging points (steel cables or chains in combination with the AP-8 attachment point) or with the TB-28N tilt bracket.
Powerful and wide coverage without loss of sound
LINEAR 9 is a great choice for both its mid/high units and its subwoofers, with outstanding low-frequency sound pressure levels. The sound quality that HK Audio is famous for is even impressively maintained right up to the back row of the audience.
Smart
The LINEAR 9 family has a high-performance integrated DSP with additional DSP Out. The DSP not only allows users to access the right presets directly on the speakers, but also to set up larger systems on a Mac or PC using an Ethernet connection and even make adjustments mid-event. The DSP Out also makes it possible to integrate a non-networked speaker and process its signal with the DSP CONTROL software.
Professional equipment
All LINEAR 9 speakers have professional connections for safe and smooth operation in the demanding day-to-day rental business. For example, both the mid/high units and the subwoofers have lockable PowerCon and EtherCon connections. All the speaker chassis and drivers used have been specially developed for HK Audio and come from premier suppliers.
Multifunctional cabinet for an even wider range of applications

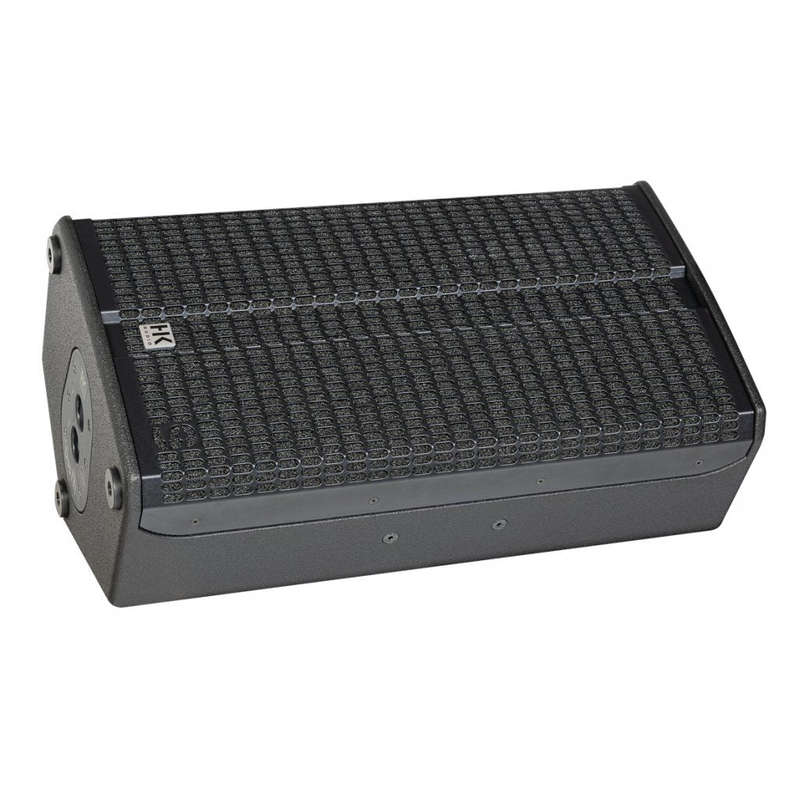

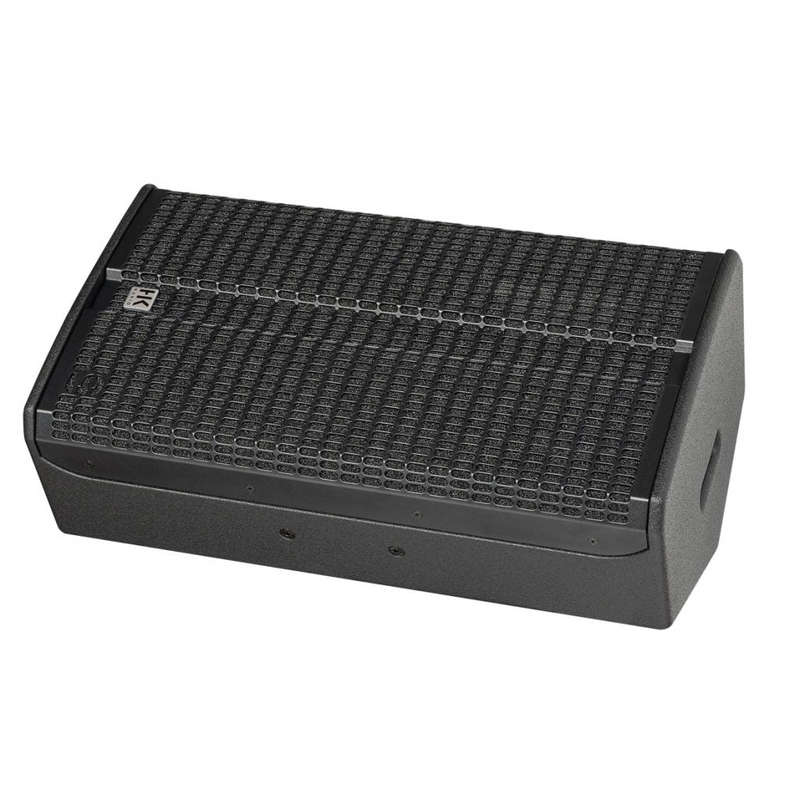

Thanks to their cabinet shape with integrated 30° slant, the multifunctional speakers are also suitable for use as transverse stage monitors. Both models offer a preset optimised for use as a monitor, which compensates for the overemphasis of the low frequencies caused by ground coupling. The practical functionality is rounded off by the standard rigging points. The combination of a multifunctional cabinet and practical features allows the XA models to be used not only as stage monitors, but also as the ideal front, side or near-fill addition to a larger setup consisting of the LINEAR 9 210 LTA.
DSP CONTROL SOFTWARE
Remote Control The next level
All LINEAR 9 series speakers can be conveniently remote controlled from the FoH position using the free HK Audio DSP CONTROL software. Available free of charge for Mac and PC, the software includes the following features for speaker customisation:
Fully parametric 10-band EQ
Tuneable high and low pass filters
Delay, Limiter, Mute, Invert and Volume
Preset management
Specifications:
Max. SPL @ 10% THD 128 dB half space (70 Hz 12 kHz averaged)
Max. SPL peak @ 10 % THD 131 dB half space
Frequency response +/-3 dB 67 Hz 19 kHz
Frequency response -10 dB 62 Hz 20 kHz
Power amp output (RMS) 700 W
Amp type Class D - biamped
LF driver -
Low-/mid speaker 1x 12", 2.5" voice coil
HF driver 1", 1.7" voice coil
Horn directivity 70° x 50° CD horn, rotatable
Active crossover frequency 1.6 kHz FIR X-over with 60 dB/oct.
Maximum input level +20 dBu
Analog inputs 1x XLR combo balanced
Analog thru 1x XLR balanced
DSP Out 1x XLR balanced
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Flat, Monitor, Low Cut, Remote
Remote software DSP CONTROL (Windows, macOS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100240 V
Power consuption 1 A / 100240 V nominal according to EN 62368-1
Clustering angle -
Angles up (Monitor angle) 30°
Pole mount DuoTilt 3°/7°
Rigging points 5x M8 (AP-8)
Carrying handles 1x SingleGrip, 1x MultiGrip
Housing Birch multiplex
Finish PU coating black
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 37 x 67 x 31 cm 14-9/16 x 26-3/8 x 12-13/64"
Weight 20.5 kg / 45.2 lbs
