HM-10 Bluetooth Module with Logic Level Translator

HM-10 Bluetooth Module with Logic Level Translator

New 10 available
R173.64
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOD-159
Bob Shop ID
614718075

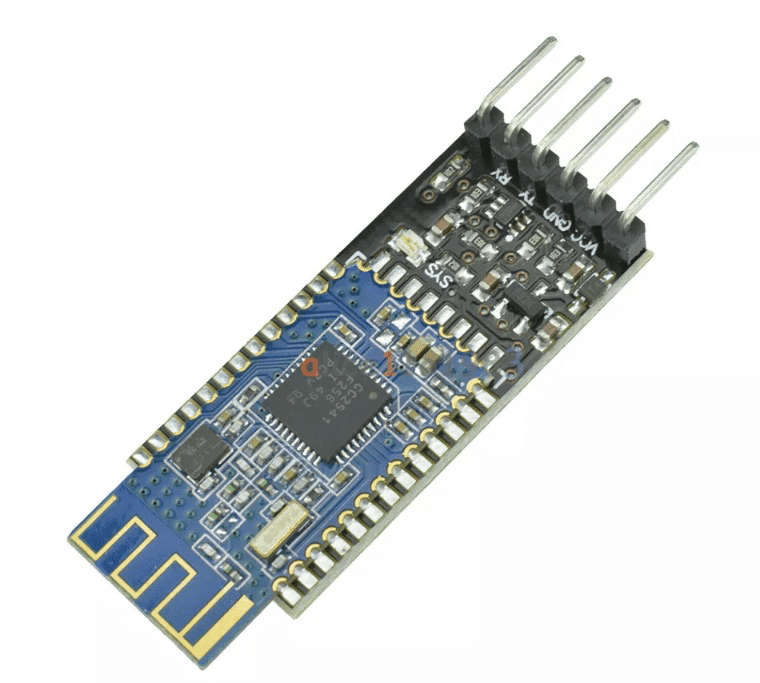

HM-10 Bluetooth module


HM-10 Bluetooth module description

  • Most complete, most convenient, and most stable Bluetooth data transmission, remote control, and data acquisition module
  • Master-slave in one, transparent transmission, replacing serial port
  • Remote control, transparent transmission, MCU is unnecessary
  • Remote data acquisition, transparent transmission, MCU is unnecessary

The HM-10 Bluetooth module for Arduino (Master Slave) uses the TI CC2540 or CC2540 chip, configure 256KB space, and support AT command. Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand. It is very flexible to use.

Product Parameters

  • Bluetooth Protocol: Bluetooth Specification V4.0 BLE
  • USB Protocol: USB V2.0
  • Operating Frequency: 2.4GHz ISM band
  • Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
  • Transmitting Power: 4dBm
  • Sensitivity: -84dBm at 0.1% BER
  • Transmission Rate: Asynchronous: 6 kbps
  • Synchronous: 6 kbps
  • Security Feature: Authentication and encryption
  • Support Service: Central & Peripheral UUID FFE0, FFE1
  • Power Supply: +3.3VDC 50mA
  • Operating Temperature: -5 ~ +65 Centigrade
  • Physical Dimension: 27mm x 13mm x 2.2 mm.
HM-10 Bluetooth Module with Logic Level Translator

Here is an excellent article to get you started: http://www.martyncurrey.com/hm-10-bluetooth-4ble-modules/
