HM-10 Bluetooth Module
Sold

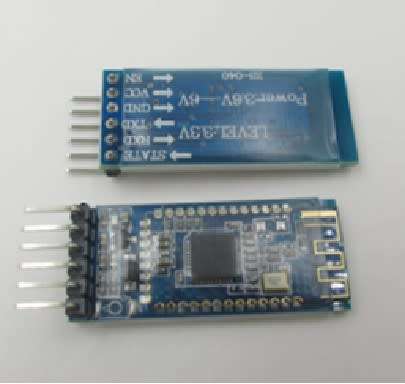

HM-10 Bluetooth Module

New 6 were available
R60.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Module Type
Bluetooth Module
Product code
PRT-HM10
Bob Shop ID
509725661
Bluetooth 4.0 Module Transceiver BLE CC2540 CC2541 HM-10 MLT-BT05

Input voltage: 3.3V/5V Only one power supply is needed.

Built-in level conversion function.

If a 5.0V MCU is used to communicate with the Bluetooth module, the 5.0V power port is powered, and the RX TX logic level is 5V

If using 3.3V MCU to communicate with Bluetooth module, 3.3V power port power supply, RX TX logic level 3.3V

RX, the serial port receiver of the Bluetooth module is connected to the TXD of the MCU.

TX, the serial port of the Bluetooth module is connected to the RXD of the MCU.

GND, ground terminal power negative

3.3V, 3.3V power supply

5V, 5V power supply at the power supply terminal



Product Parameters

BT Version: Bluetooth Specification V4.0 BLE

Working frequency: 2.4GHz ISM band

Modulation method: GFSK (Gaussian Frequency Shift Keying)

RF Power: -23dbm, -6dbm, 0dbm, 6dbm

Speed: Asynchronous: 2-6K Bytes and Synchronous: 2-6K Bytes

Security: Authentication and encryption

Service: 0xFFE0 (Modifiable use AT+UUID command)

Characteristic: 0xFFE1 (Modifiable use AT+UUID command)

Characteristic: Notify and Write    (Modifiable use AT+UUID command)

Power: +2.5V~3.3VDC 50mA

Power: Active state 8.5mA; Sleep state 50~200uA

Working temperature:20 ~ +95 Centigrade

Size: 27mm x 13mm x 2.2 mm
