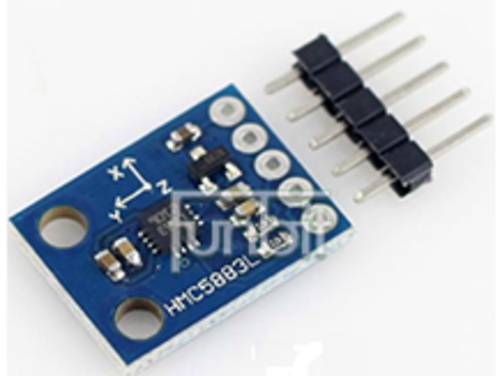

HM5883L TRIPLE AXIS COMPASS MAGNETOMETER SENSOR MODULE FOR ARDUINO
Product information
The HMC5883L utilizes Honeywell’s Anisotropic Magnetoresistive (AMR) technology that provides advantages over other magnetic sensor technologies. These anisotropic, directional sensors feature precision in-axis sensitivity and linearity. These sensors’ solid-state construction with very low cross-axis sensitivity is designed to measure both the direction and the magnitude of Earth’s magnetic fields, from milli-gauss to 8 gauss. Honeywell’s Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry. Applications for the HMC5883L include Mobile Phones, Netbooks, Consumer Electronics, Auto Navigation Systems, and Personal Navigation Devices.
Specifications
Power supply: 3 – 5V>
Low power consumption: 100uA>
Sensors can be used in strong magnetic field environments>
Enables 1 to 2 degree compass heading accuracy>
I2C interface>
I2C Address: 8-bit read address (0x3D) and 8-bit write address (0x3C)>
12-Bit ADC Coupled>
Low noise AMR sensors achieve 2 milli-gauss field resolution in ±8 Gauss fields>
Fast 160 Hz maximum output rate>
Measuring range: ± 1.3-8 Gauss>
Size: 14.4mm x 13.2mm
Package includes
1 x HMC5883L Triple Axis Compass Magnetometer Sensor Module for Arduino
