Overview:

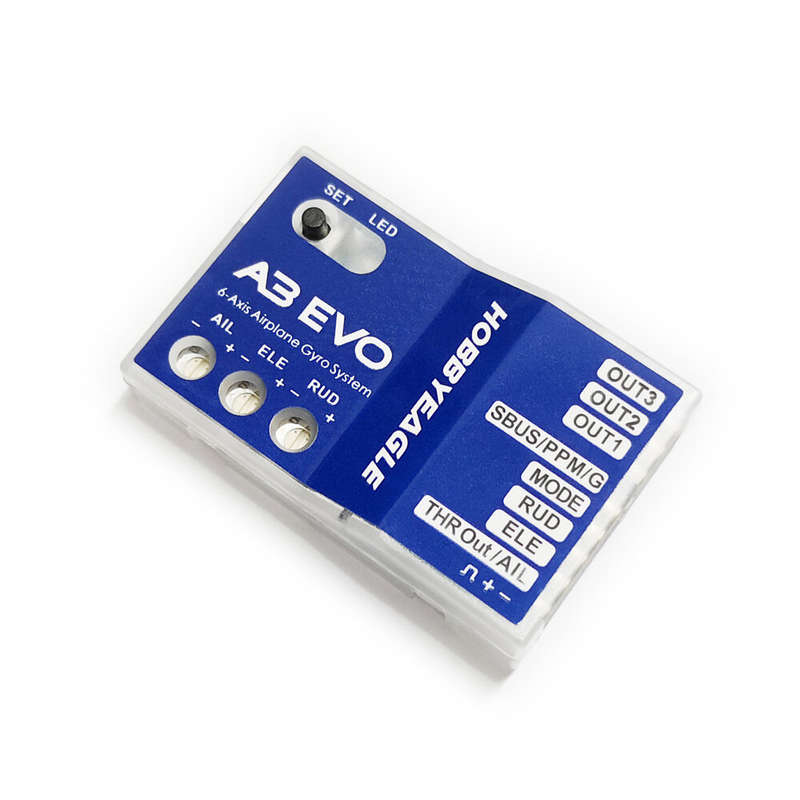

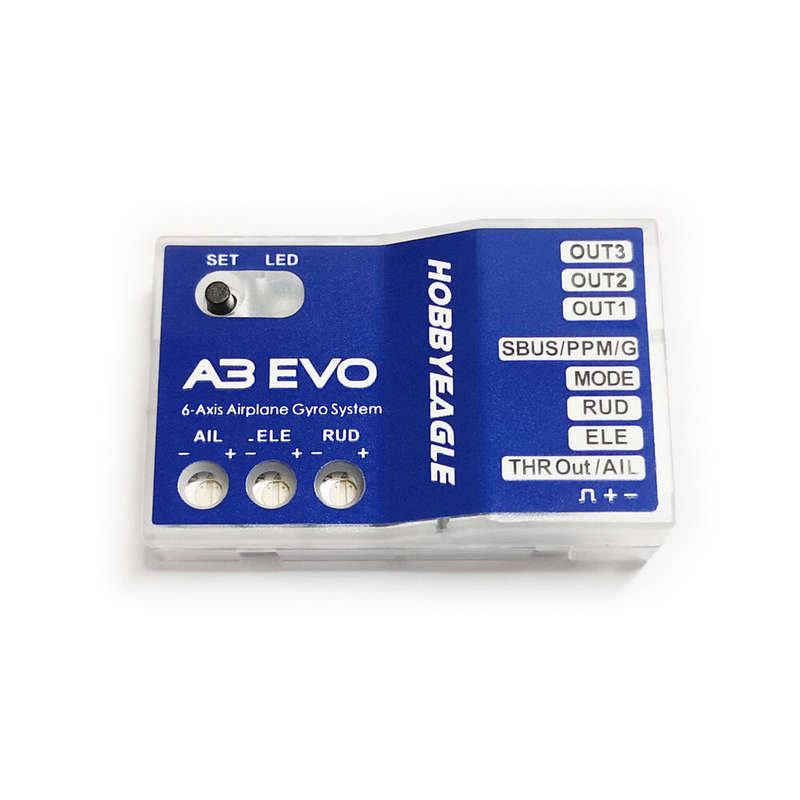

The A3 EVO is the latest 6-axis gyro for airplanes, which is developed based on AVR platform and applies the high efficiency, concise and mature algorithm. Experience with previous gyros and introduces many new features such as PPM receiver support, separate 3-axis basic gain adjustment and the throttle output channel for mini serial receivers. The A3 EVO provides users with more powerful and better performance.
Specifications:
Main Controller: AVR MCU
Sensor: MEMS 3-axis sensor
Gyro Scale Range: ±2000 dps
Accelerometer Scale Range: ±4g
PWM Output: Limit: 970S to 2070S, Neutral: 1520S
Input Voltage: 4.8V to 8.4V (H.V. 2S Lithium Battery Supported)
Operating Temperature: -10 to 50
Size: 43×27×14mm
Weight: 10g (excluding wires)
Features:
- 4 Fli
