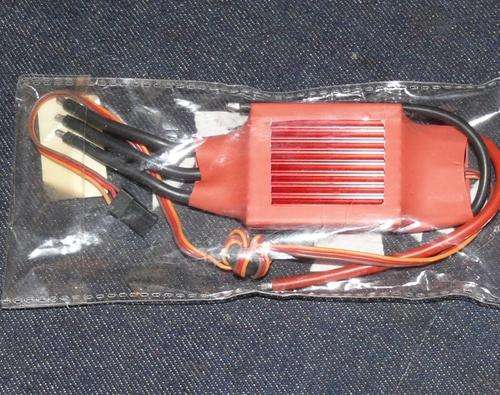

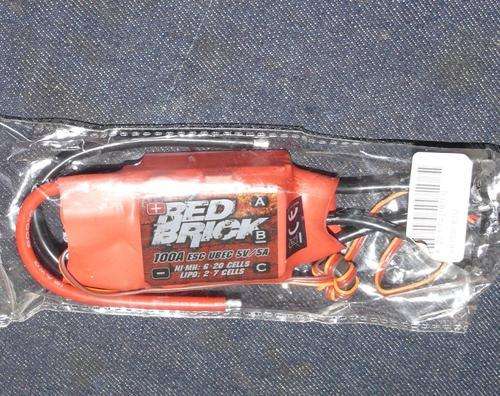

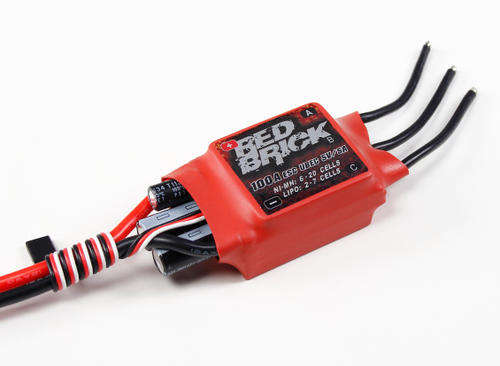

HobbyKing Red Brick 100A ESC 5VBEC

HobbyKing Red Brick 100A ESC 5VBEC
The HobbyKing Red Brick ESCs wont win first place for style, though they will take top points
for simplicity and reliability. With a basic set of programming features these ESCs are a perfect
solution for anyone looking for a basic yet robust speed controller.

The Red Brick ESC has been engineered with heat dissipation in mind. featuring an over sized
Aluminium heat sink for the FETS and and individual heatsink for the MCU the Red Brick ESC is
slightly larger than many ESCs in its class, however this compromise in size is aimed at assisting
to eliminate the problems associated with over heating.

Features:
• Smooth, linear throttle response
• Uses powerful, high performance MCU
• Multiple self protection functions: abnormal voltage input, low battery protection,
over thermal protection, throttle signal loss
• Safe start, motor will not run until ESC is armed correctly

Specs.
Max Amps: 100A
UBEC: 5V / 5A
Cells: 2~7S 7.4~25.9V Lipoly
Size: 62x38x21mm
Weight: 108g
