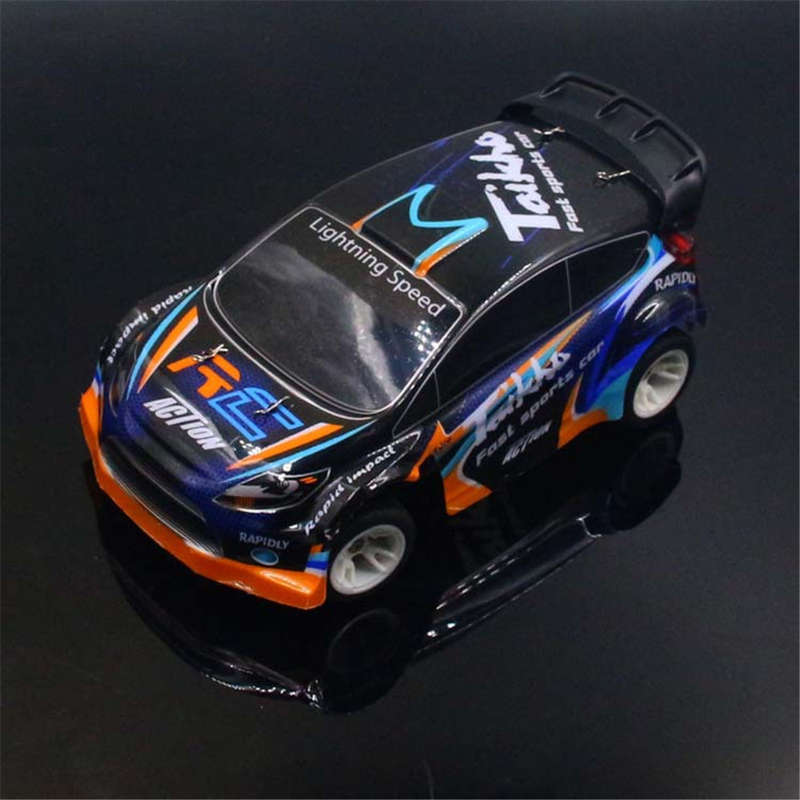

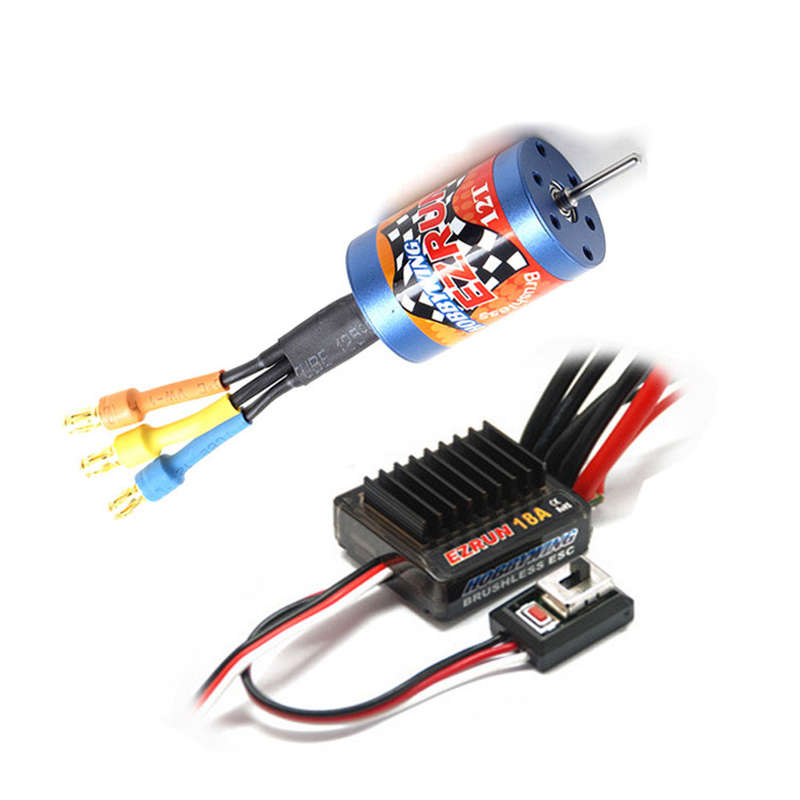

1. This link only sells Hobbywing 2030 brushless motors and Hobbywing 18A ESCs. The car in the picture is not included. If?you need a car, you can buy it separately

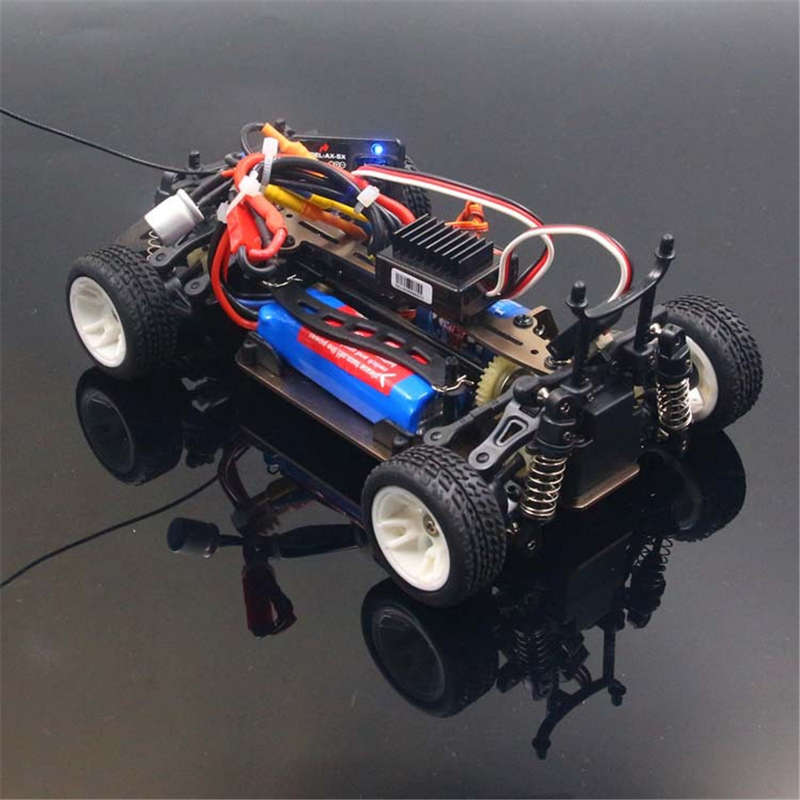

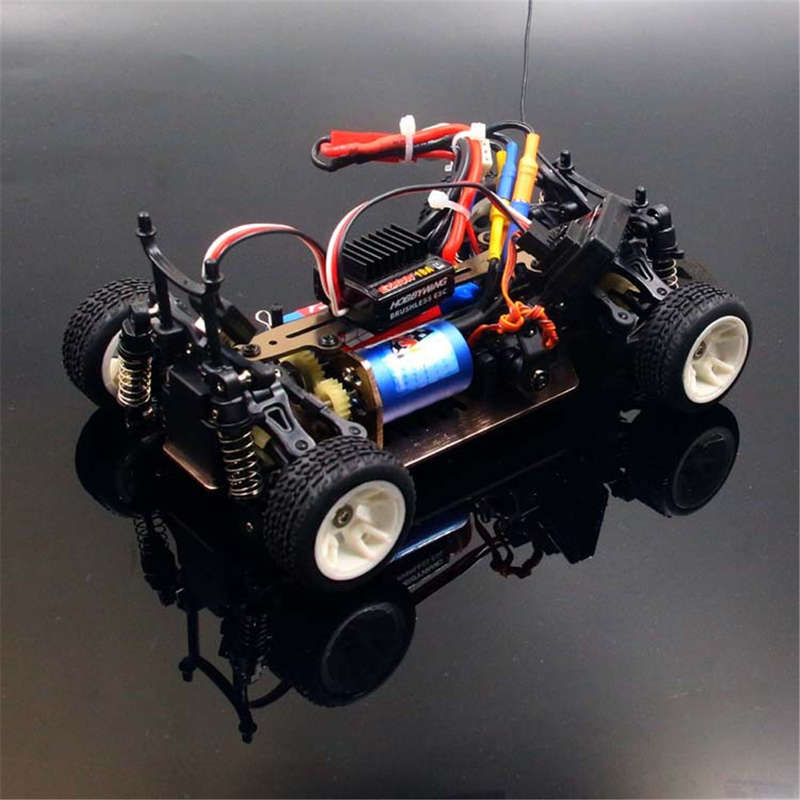

2. This product is suitable for upgrading 1:24 mosquito vehicles (the original motor is 180 motors), such as Weili 1:24 vehicles: A202, A212, A222, A232, A242, A252, and it is also suitable for other brands of 1:24 mosquito vehicles;

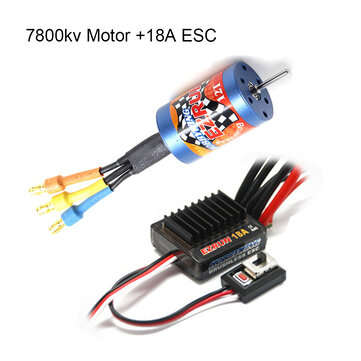

3. Hobbywing EZRUN2030 motor has two KVs to choose from, 5200KV and 7800KV. Under the condition of 2S lithium battery, the torque of 5200KV motor is higher than the price, and the speed of 7800KV is faster. No matter which KV motor is selected, the speed is more than 65KM/hour. . And the torque and speed are greatly improved than the original car.
4. The power connector of the ESC has been changed to a JST plug, which can be directly connected to the original battery;
5. 1:24 car modification and upgrade, need to change brushless motor and brushless ESC, we recommend using 2030 motor and Hobbywing 18A ESC, the linearity is particularly good, the start and speed are very violent, and the steering gear can be retained. . After the upgrade, the remote control needs to be replaced. We strongly recommend the use of the AX5S three-channel remote control. In addition to the good feel, this remote control can reach a distance of 200 meters, and has the function of limited speed gear and out-of-control protection. In addition, The third channel can also be equipped with lights for your car.
Attentions for modification:
1. The original 180 brushed motor, the motor screw is M2, and the screw hole of the 2030 motor is M2.5, before installation, you need to enlarge the mounting hole of the motor base, otherwise the M2.5 screw will not be adjusted well. Clearance of motor teeth;
2. Pay special attention to the official mark of Hobbywing EZRUN2030 motor shaft diameter is 2.0mm, the motor has a lower tolerance, and the actual size will be smaller than 2.0. If the gear is loose, the solution is to make a dot on the motor shaft and gear. Just stick it with AB glue and it`s available in our shop.
3. Modification way: first remove the car shell-remove the second floor plate-remove the original receiver-remove the motor seat-remove the gear (be careful not to damage the gear when removing the gear)-remove the two screws of the motor- Remove the 180 motor, and then reinstall it in the same way. The process is very simple.?
????-?????????????3??????ﾩW?????????¯??|???????????????????¯??????¯??????????????????????????o???????
Package Included:
1x motor
1x ESC
