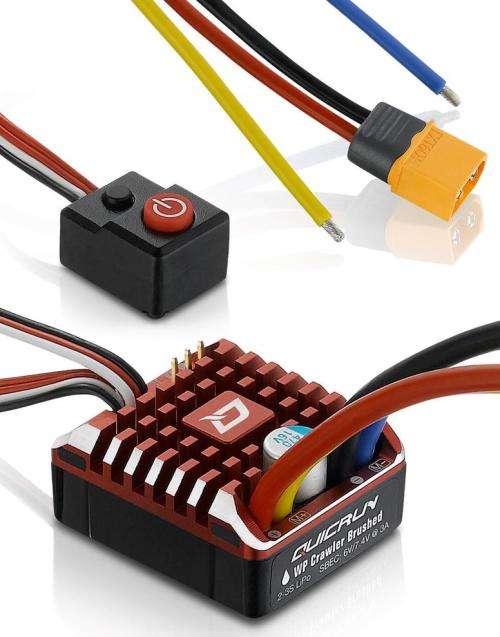

HOBBYWING QUICKRUN QR-1080 WP BRUSHED 80A ESC (2-3S) FOR CRAWLER



• Water-proof and dust-proof, suitable for all weather races.
• Small size, with built-in capacitor module.
• 100% Waterproof
• 15 programmable parameter items
• PWM Frequency: 1K/2K/4K/8K/16K Adjustable
• Freewheeling (DEO) capability
• Drag brake rate in 9 levels (adjustable)
• Electronic switch
• Aluminum case for great heat dissipation
• Great current endurance capability.
• Great built-in BEC output capacity.
• Automatic throttle range calibration, easy to use.
• Multiple protections:
  • Over Voltage Protection
  • Low voltage cut-off protection for battery
  • Over-heating protection
  • Throttle signal loss protection, and much more
• Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America

What's in the box?

• ESC
• LED program card
• Bonus accessories (heat sink, etc)
• User's manual
• Decal

SPECS:

Waterproof	Yes
Dual Mode	No
Fwd Cont. / Peak Rev Cont. / Peak	80A / 400A 30A / 180A
Car Applicable	1/8 - 1/10 Rock Crawler and Tank or Boat
Motor Limit	Brushed Motors 540/550/775 Series 2S LiPo or 6S NiMH: ≥10T orRPM<[email protected]     3S LiPo or 9S NiMH: ≥16T or RPM<[email protected]
Battery	2-3S LiPo or 5-9S NiMH
BEC Output	6V/7.4V @ 3A  (switch mode)
PWM Frequency	Adjustable 1K/2K/4K/8K/16K
Wires	14AWG-200mm w/ XT60 Connector
Size/ Weight	36.5(L)* 32(W)*18(H) (without fan)
External Program Port	External Program Port  Available
Programming	LED Program card
Cooling Fan	Without cooling fan	-
Weight*	58.5g
