HOCO Smart Mini DC UPS & Powerbank 8800mAh -DB25

HOCO PREMIUM PRODUCT

*Product Instructions

1.Built-in lithium battery
2.Microprocessor controller quarantees high reliability
3.Auto start when plugged in
4.Manual power off switch
5.Overload short-circult protection
6.Over-charge and over-discharge protection
7.User's friendly multi-LED status indicators
Allows to set output voltage-9/12 VDC via switch
5V USB/DC output
8.Compitable for Router, Modem,CCTV,Camera, Smart devices

*Features

1) High capacity lithium batteries, provides long backup to the loads.
2) High compatibility, suitable for most digital products in the market.
3) USB output (5V), can supply charging for digital products like mobile
phone, PDA, PSP, IPOD, MP4... etc.
4) Power Over Ethernet(POE) can transmit the data and power at the same
time to simplify wire set.
5) Intelligent circuit design with over-charging, over-discharging and
short circuit protections.
6) Built-in adapter allows wide AC voltage range (100~240Vac).

*How To Use

1.Before connecting the devices to the UPS, you must check the nominal working
voltage, current and polarity of the load, then adjust the voltage of the UPS to the
corresponding load voltage, confirm that the corresponding port is correct then
connect to the load to prevent the machine from being burned out by connecting the
wrong voltage.

Each output terminal of this model has independent output power protection and
short-circuit protection, and has a generals power protection mechanism. The power
of the load connected to all ports cannot exceed the defaulted output power.
Otherwise, the corresponding port will turn off. When the total power setting is
exceeded, the 4 power indicator lights will flash at the same time and all output ports
will turn off. Please remove the overloaded load. The UPS will restart every 5 seconds.
UPS work continuously when the load within overload protection range.

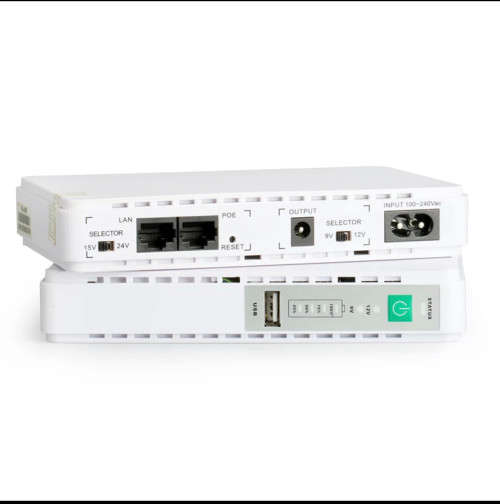

Press and hold the power button for 2-3 seconds to start the UPS. If the 9V or 12V
indicator light is green, it means that the DC port is outputting voltage, and the
output voltage can be selected between 9V and 12V by moving the DC voltage switch.
By moving the POE voltage switch, the output voltage of the POE port can be selected
between 15V and 24V. Plug and play USB provides stable 5V power supply for digital
products.

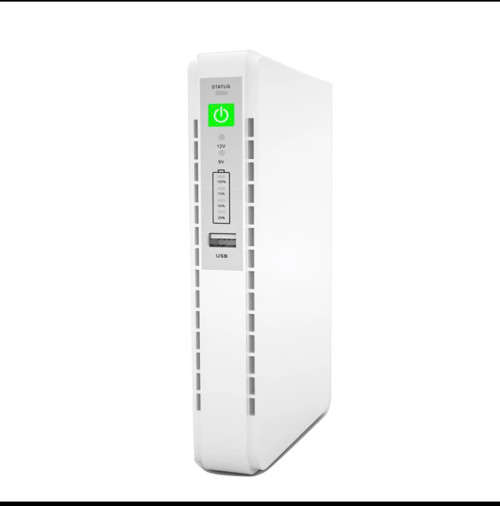

After plugging in the AC mains supply, the status indicator turns green, it means AC
mode. During the charging process, the power indicator will indicate the battery
capacity with 25%, 50%, 75% and 100% power respectively. After disconnecting the
grid, the battery backup status indicator will turn red, and the power indicator will turn
off from 100%, 75%, 50% to 25%. When the 25% indicator flashes, it means the
battery power is very low, and the UPS will stop output at any time.
