Descriptions:
The Digital Insulation Resistance Tester series have high performance, and safe configuration and improved electrocircuit. It is one new item which has more fully function, higher precision, and easier operation. It's also one quakeproof, dustproof and dampproof tester and can fit work environment of outdoor.
The output testing voltage changed between 500V/1000V/2500V/5000V for different item no. The resistance 200GΩ, the tester also can measure alternating voltage.
This Tester apply for all kinds or electric equipment and insulation materials such as transformer, electromotor, cable, switch, appliance, etc.
It is a perfect electrical testing meter.Specifications:
Testing Voltage:500v/1000v/2500v/5000v
Insulation Resistance:1MΩ-200GΩ
Accurancy: 1MΩ -200MΩ :±(3.0% of rdg + 5 digits);
200MΩ-10GΩ :±(5.0% of rdg + 5 digits);
10MΩ -200GΩ:±(10.0% of rdg + 5 digits);
AC Voltage:750V Accurancy:±(2.0% of rdg + 5 digits);
Display:1999
Range Select:AUTO
Data Hold:yes
Low battery indication:yes
Back Light:yes
HV red indication lamp light:yes
Features:
Size of LCD: 68×55mm (Height of character is 35mm)

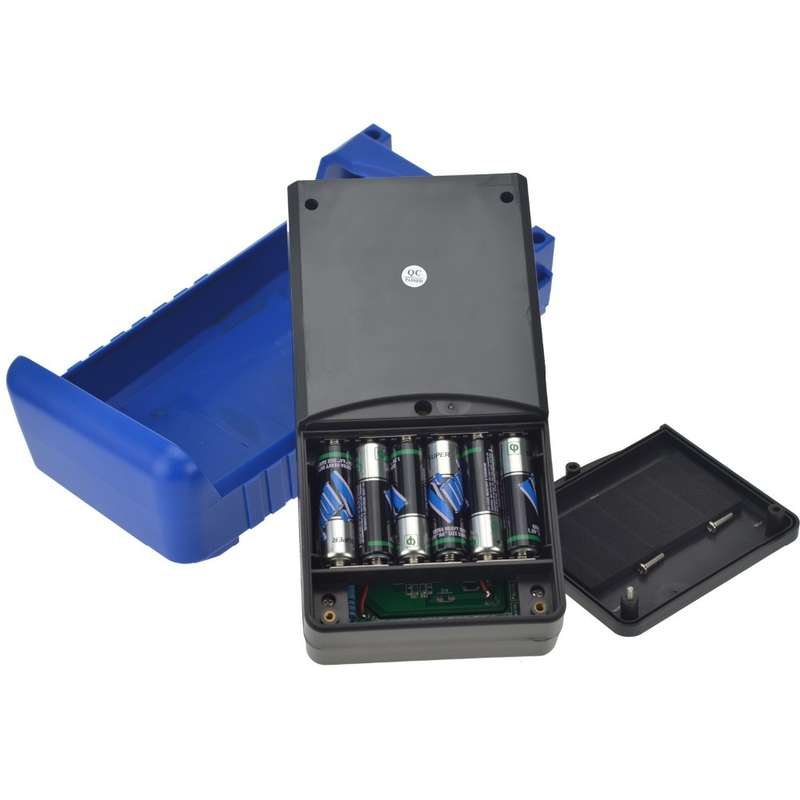

Power: 1.5V(AA)*6
Size of shape: 218×122×75mm
Weight: 900g
Environment:Working temperature: 0~40°C,relative humidity <80%
Storage temperature: -10~50°C, relative humidity <85%.
Package Included:
1 x HP-6688B Resistance Tester
3 x Test Lead
1 x Retail Box
1 x English Manual
1 x Test Leads
1 x HP-6688B Black bag

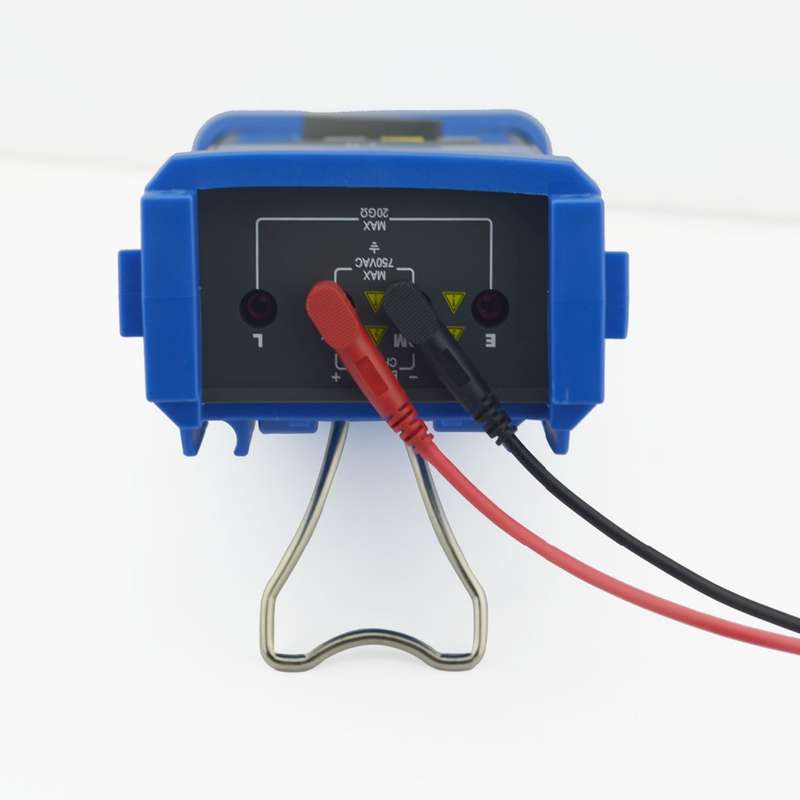

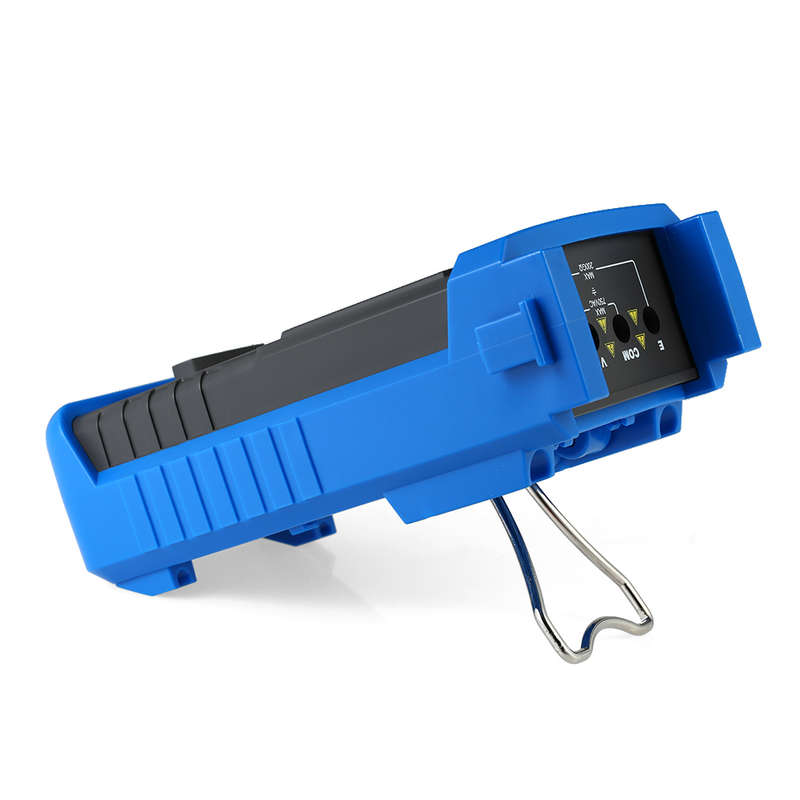

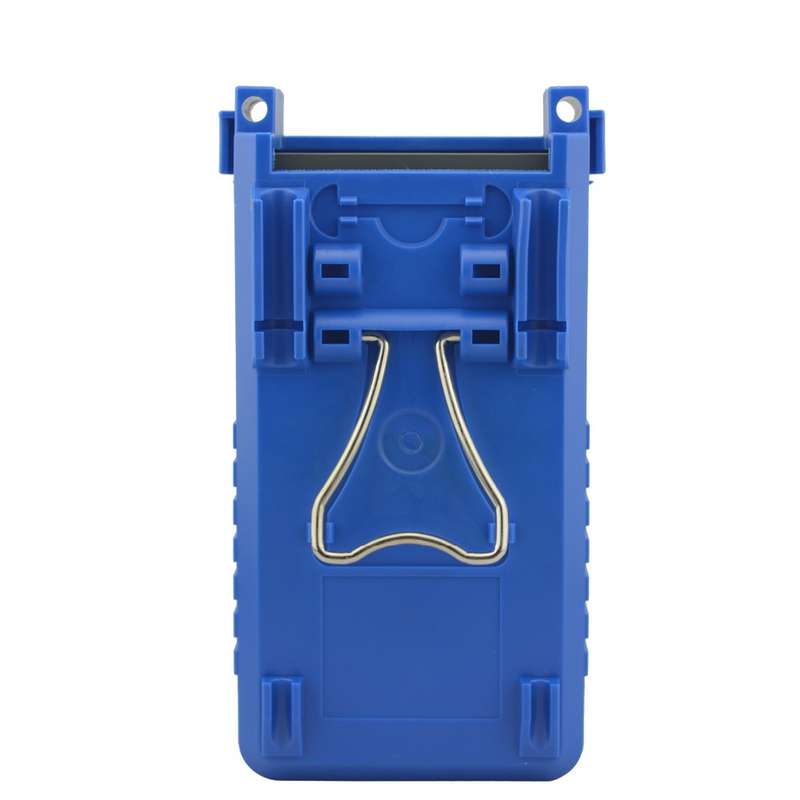

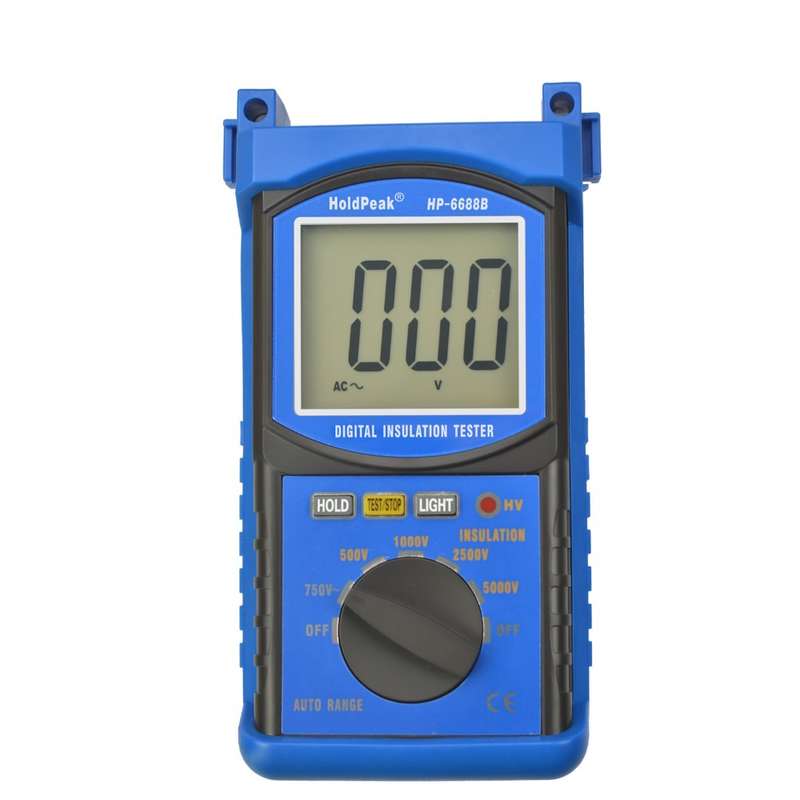

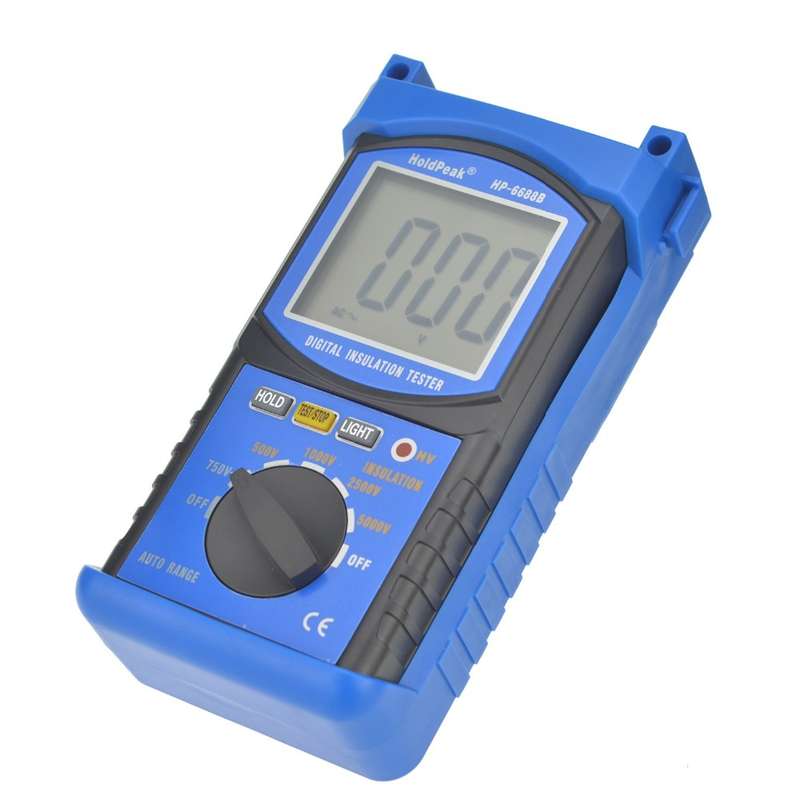

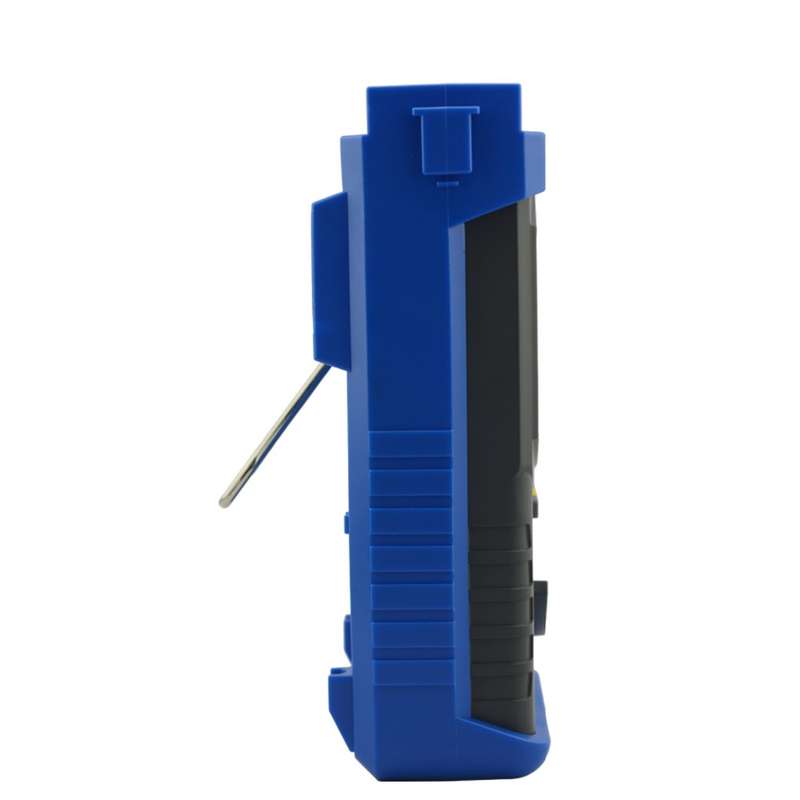

Detail Pictures:
