Holybro M8N GPS - #12012
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

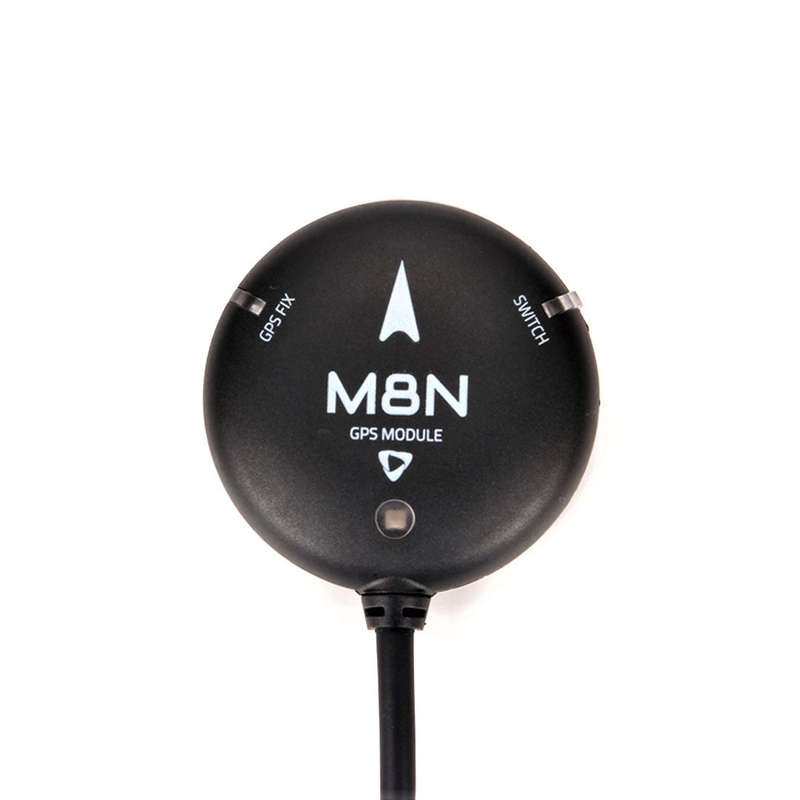

The M8N GPS has an UBLOX M8N module, IST8310 compass, tri-colored LED indicator, and a safety switch. There are 3 different connectors options for different purposes.
PX4 Autopilot users:
The GPS RGB LED Driver Chip has been updated. Ensure the PX4 firmware is Stable Release v1.12.2 or newer for proper LED driver Support.
Ardupilot User:
If unable to preform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.
Descriptions
The M8N GPS has an UBLOX M8N module, IST8310 compass, tri-colored LED indicator, and a safety switch. There are 3 different connectors options for different purposes.
This module ships with a baud rate of 38400 5Hz
Features and Specifications:
Ublox Neo-M8N module
Industry leading 167 dBm navigation sensitivity
Cold starts: 26s
LNA MAX2659ELT+
25 x 25 x 4 mm ceramic patch antenna
Rechargeable Farah capacitance
Low noise 3.3V regulator
Current consumption: less than 150mA @ 5V
Fix indicator LEDs
Protective case
26cm cable included
Diameter 50mm total size, 32 grams with case.
PIN MAP

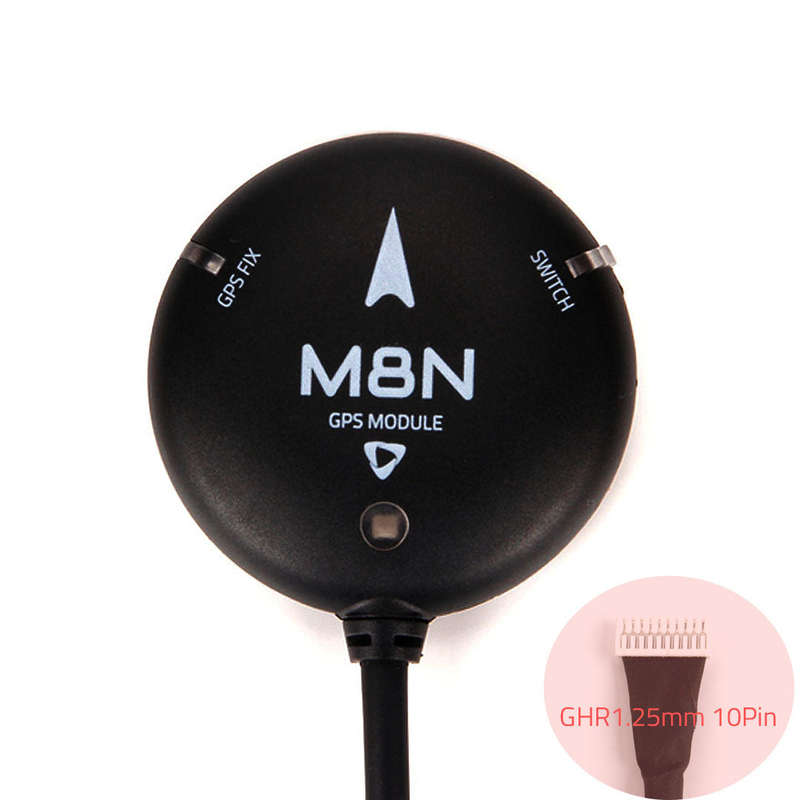

SKU12012 Holybro M8N GPS (JST GHR1.25mm 10pin cable):
This JST GH 10Pin connector can be used on Pixhawk Standard Flight Controller 10pin"GPS Module"or "GPS1" input port.
Package Included:
NEO-M8 with compass module *1

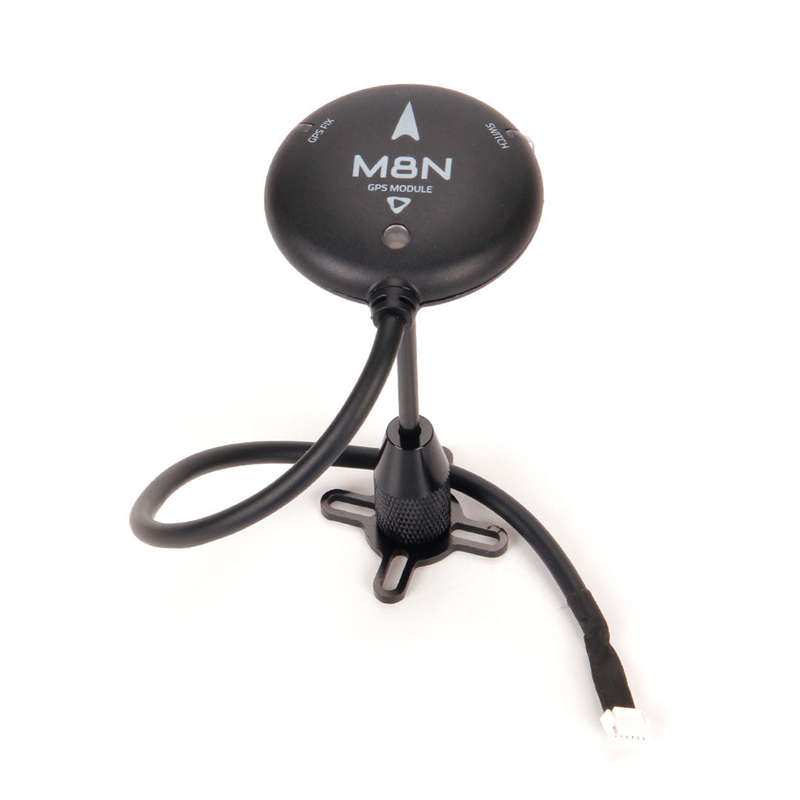

'X' type folding pedestal mount *1
Carbon rod 70mm & 140mm *1
