Holybro PIX32 V5 Pixhawk Flight Controller & PM02 V3 Power Management Board & GPS UBLOX NEO-M8N & Base Board for RC Drone Multirotor

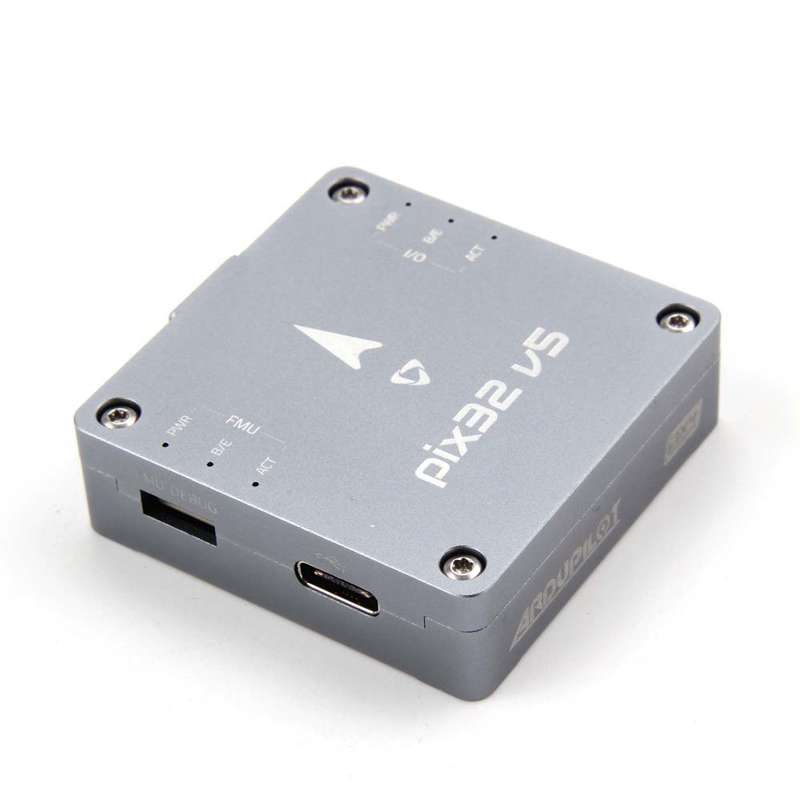

HolyBro Pix32 v5 is a new flight controller we have developed on the base of FMUv5 scheme, which can be regarded as a variant version of `Pixhawk4`. The Pix32 v5 is comprised of a separate flight controller and carrier board which are connected by a 100pin connector. It is designed for those pilots who need a high power, flexible and customisable flight control system. By using a carrier board designed for the style of model you need you can make sure that the physical size, pinouts and power distribution requirements match the model perfectly. Different carrier boards designed for multirotors, fixed wing aircraft, ground based vehicles or even water based models ensure that you have all the connections you need and none of the expense and bulk of connectors you dona??t. We have made the carrier board schematics public, you can either make a custom carrier board by yourself or just let HolyBro help you with it. If youa??ve tried to use a PixHawk4 but struggled to make it work with your design then the Pix32 v5 may be the answer with its ability to fit within a custom carrier board with just what you need. As the Pix32 v5 is based on the PX4 and ArduPilot systems you can also take advantage of all of the latest peripherals, software and enhancements offered by those systems for a quick easy setup and flying experience.
Specification:
Brand name: Holybro?
Item name: PIX32 V5 Flight Controller & PM02 V3 Power Management Board & Base Board &?GPS UBLOX NEO-M8N?
Technical Specifications?
Main FMU Processor: STM32F765
- 32 Bit Arm ? Cortex?
-M7, 216MHz, 2MB memory, 512KB RAM?
IO Processor: STM32F100
- 32 Bit Arm ? Cortex?
-M3, 24MHz, 8KB SRAM?
On-board sensors
- Accel/Gyro: ICM-20689
- Accel/Gyro: BMI055
- Mag: IST8310 - Barometer: MS5611
GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310
Interfaces
8-16 PWM servo outputs (8 from IO, 8 from FMU)
3 dedicated PWM/Capture inputs on FMU
Dedicated R/C input for CPPM
Dedicated R/C input for Spektrum / DSM and S.Bus
with analog / PWM RSSI input
Dedicated S.Bus servo output
5 general purpose serial ports
- 2 with full flow control
- 1with separate 1.5A current limit
3 I2C ports
4 SPI buses
- 1 internal high speed SPI sensor bus with 4 chip selects and 6 DRDYs
- 1 internal low noise SPI bus dedicated for
- Barometer with 2 chip selects, no DRDYs
- 1 internal SPI bus dedicated for FRAM
- Supports dedicated SPI calibration EEPROMlocated on sensor module
- 1 external SPI buses a??? Up to 2 CANBuses for dual CAN with serial E
- Each CANBus has individual silent controls or ESC RX-MUX control
Analog inputs for voltage / current of 2 batteries
2 additional analog inputs
Electrical Data
Voltage Ratings:
Power module output: 4.9~5.5V
Max input voltage: 6V
Max current sensing: 120A
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Mechanical Data
Dimensions: 45x45x13.5mm
Weight: 33.0g
Environmental Data, Quality & Reliability
Operating temp. -40~85a??
Storage temp. -40~85a???
CE
FCC
RoHS compliant (lead-free)
Downloads:

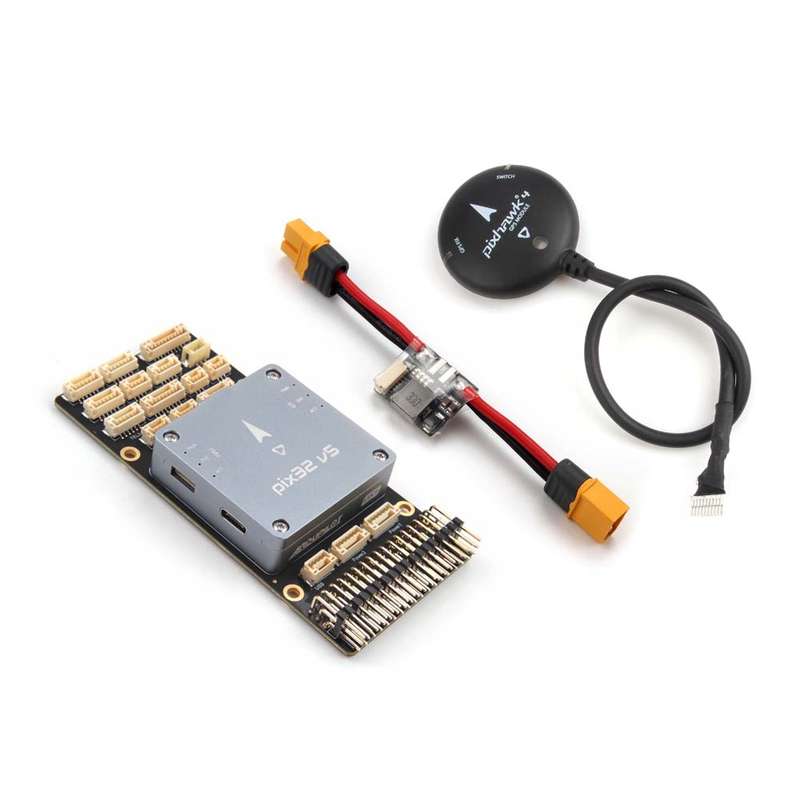

Package Included:
1 x PIX32 V5 Flight Controller
1 x?GPS (UBLOX NEO-M8N)

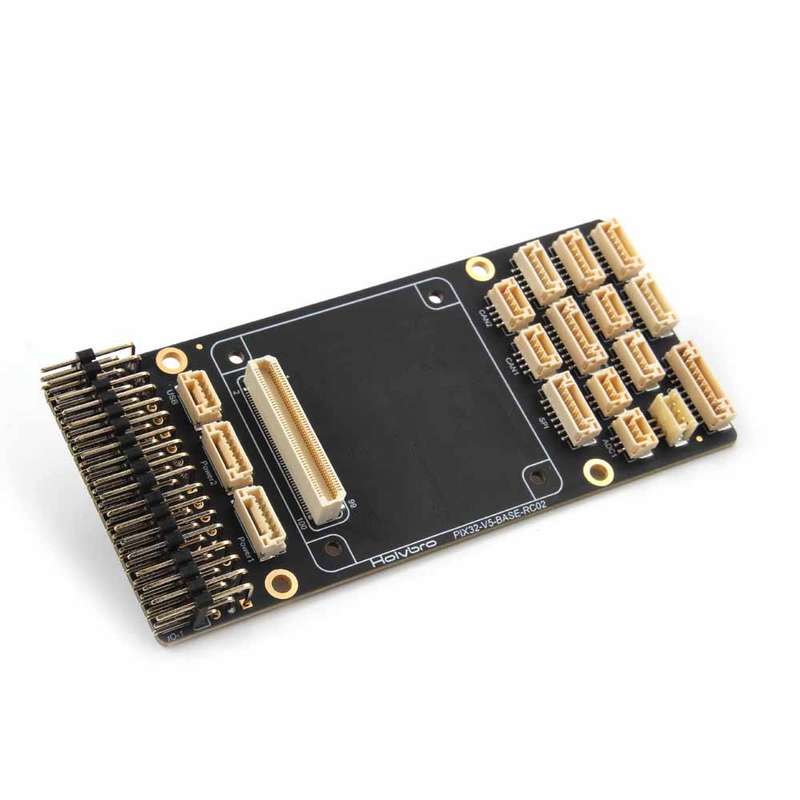

1 x?PIX32 V5?Base Board
1 x PM02 Power Management Board?
