Instruction manual in box

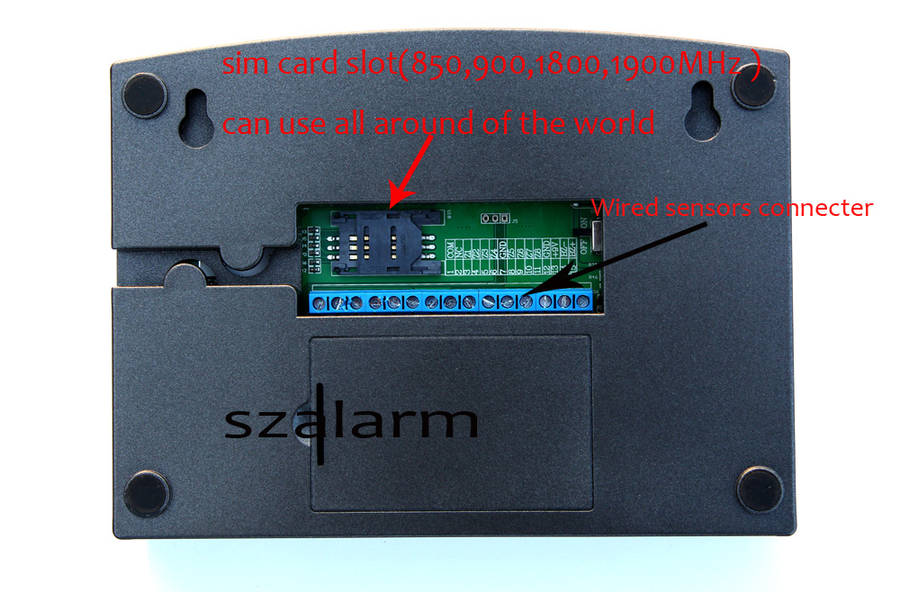

Rear View
Specifications
| GSM Control Panel | |
| Input Voltage | DC12V/1.2A |
| Standby Current | <55mA |
| Alarming Current | <450mA |
| Wireless Frequency | 433MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Sensors | can store Max. 99 wireless sensors |
| Remote Controllers | can store Max. 8 wireless remotes |
| Wired Sensor | can connnect Max. 7 wired sensors |
| Back-up Battery | can last 4 hours when power cut off |
| Siren | only support one wired siren OR more wireles sirens but with same transmitter |
| Wireless Gap Detector (Door / Window Contact) | |
| Power Supply | DC12V/23A Battery |
| Static Current | ≤20 mA |
| Transmission Current | ≤15mA |
| Transmission Frequency | 433MHZ ± 0.5MHZ |
| Transmission Distance | About 30m with one barrier |
| Internal Distance | 15 mm |
| Working Condition | Temperature –10 ~+ 40 |
| Humidity | ≤ 90% rh |
| Battery Life Time | About 6 months |
| Wireless P.I.R Motion Detector | |
| Power Supply | DC9V (6F22 battery) |
| Transmission Current | ≤20mA |
| Static Current | ≤10mA |
| Wireless Frequency | 433MHZ ± 0.5MHZ |
| Transmission Distance | About 30m with one barrier |
| Detective Speed | 0.3 - 3m/s |
| Detective Distance | 5 - 12m |
| Detective Range | Horizontal 110° Vertical 60° |
| Battery Life Time | About 6 months |
| Working Condition | Temperature –10 ~+ 40 |
| Humidity | ≤ 90 rh |
| Battery Life Time | About 6 months |
| Remote Controller (Keyfobs) | |
| Static Current | 0 |
| Emission Current | ≤15 mA |
| Transmission Frequency | 433MHZ ± 0.5MHZ |
| Emission Speed | T≤1 second |
| Emission Distance | About 30 meters |
| Working Condition | Temperature –10 ~+ 40 |
| Humidity | ≤ 90 rh |
| Battery Life Time | About 6 months |
