HOME VIDEO DOORPHONE - E-HP7

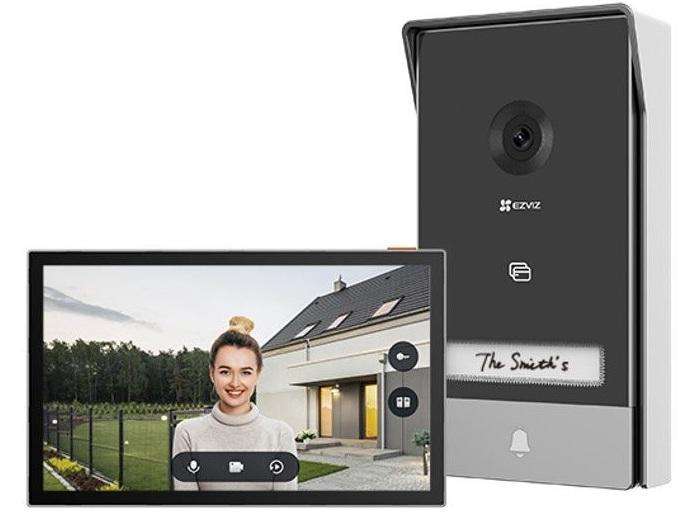

Ezviz HP7 2K Smart Home Video Doorphone
Built To Be Reliable For Houses And Villas
As the 2 In 1 Outdoor Camera and Phone helps Record Videos
In 2K clarity and detect people with Real-Time Mobile notifications
Specifications
Model: CS-HP7-R105-1W2TFC
Outdoor: Doorbell
Image Sensor_ 1/2.7 Progressive Scan CMOS (Supports low light sensitivity)
Lens: 2.0 mm @ F2.2, Viewing Angle_ 162° (Diagonal)
Day & Night_ IR-Cut Filter with Auto-Switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution: 2048 × 1296
DNR: 2D / 3D DNR
Video Compression: H.265 / H.264
Frame Rate: Max_ 15fps; Self-Adaptive during Network Transmission
Connection And Function
Connection Method_ Wired Connection (2-Wired, Capable with 4-Wired)
Digital Signal Transmission
Transmission Distance_ F 2 x 0.75mm² , Max. 50m F 2 x 1.5mm² , Max. 100m Twisted pair, Max. 120m
Open the door (Gate): Support 2 Wiring Ports. 1-10m Distance
The Intercom Panel provides a Dry - Contact Connection
Without an Electric Current, to Connect to the button for Automated Gate
Gate Breaking Capacity_ 12V / 2A
Unlock (Electric Strike Plate): Support 2 Wiring Ports. 1-10m Distance
The Electric Strike Plate or Lock that you order must have a Mechanical Memory
The Power Supply to the Electric Strike Plate or Lock must not exceed 12V / 1.1A
Otherwise, should do as User Manual
Door Open Methods
RFID Badges unlock (Badges × 3 pcs)
App Remote Unlock
Indoor Display Unlock
Outdoor Doorbell Interface
Audio Input: Built-In High-Sensitivity Microphone
Audio Output: Built-In High-Power Speaker
Doorbell Button_ Yes. The Light can be Set On or Off
Name Card: Three handwritten Name Cards in total
(One already on the Intercom Panel). The light can be Set On or Off
Terminal: Two Wiring Ports to Connect Screen
Two Wiring Ports to Connect Gate
Two Wiring Ports to Connect Electric Strike Plate
Functions
Intelligent Alarm_ Smart human motion detection, Lingering Detection
Tamper Alarm: Supports
Video Intercom_ Long-Distance Video Two-Way Talk
General
Operation Conditions: -30°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade_ Waterproof, with Shield Cover

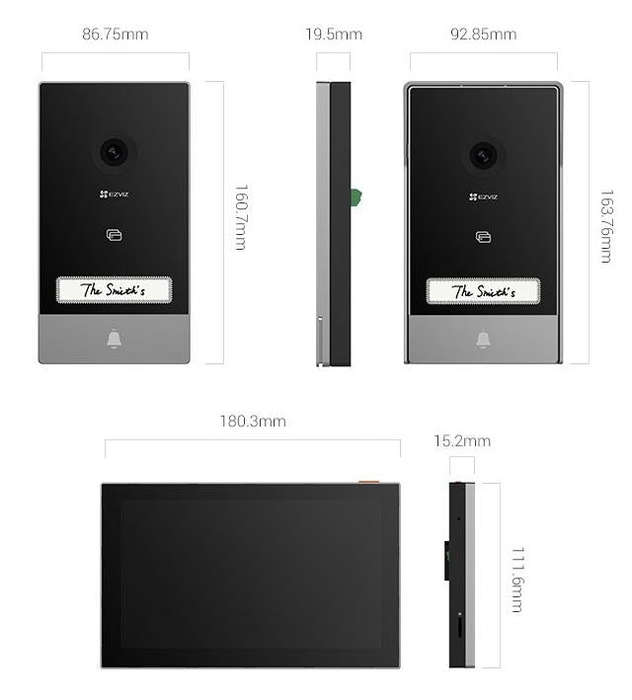

Size: 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)
Interior Display
Display Size: 7 Inch Touch Screen
Resolution: 1024 × 600
Interface
Audio Input: Built-In High-Sensitivity Microphone
Audio Output: Built-In High-Power Speaker
Button: Screen On / Off Button
Terminal: Two Wiring Ports to Connect 1st Outdoor Doorbell
Storage: Supports MicroSD Card up to 512 GB Supports EZVIZ Cloud Storage
Network Parameters
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol_ EZVIZ Cloud Proprietary Protocol
Protocol: EZVIZ Connect Protocol
Wi-Fi Parameters
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range: 2.4G: 2.4 GHz - 2.4835 GHz 5G_ 5.15 GHz - 5.25 GHz
Channel Bandwidth: Supports 20MHz
Security: 64 / 128-Bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b_ 11Mbps, 11g_ 54Mbps, 11n_ 150Mbps, 11ac_ 433.3Mbps
Function
Multiple Ringtones: Up to 20 Ringtones
Functions: Live View, Playback, Two-Way Talk, Video Call
General
Operation Conditions: -10°C to 45°C, Humidity 95% or less (non-condensing)
Weight: Net Weight_ 855 g (30.16 oz) With Package_ 1825 g (64.37 oz)
Size: 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Power Supply_ DC 24V / 1A Power Supply, Adaptor (100- 240Vac)
Power Consumption: 8W, Max. 24W
In The Box
Monitor
Wall Bracket For Monitor
Power Adapter For Monitor
Drill Template For Monitor
Intercom Panel
Drill Template For Intercom Panel
Screwdriver
Badges (×3)
Screw Kit (×2)
Name Card (×2)
Wires and Wire Connectors
DC 24V Power Supply Jack Connector Cable
Regulatory Information (×2)
Quick Start Guide
Certifications: CE / REACH / WEEE / RoHS
