Lead Time: 2-3 Weeks
1. Speed LED digital display, easy operation.
2. Dynamic speed detection function.
3. Speed memory function.
4. Overload protection function - safe operation.
TOPTION high shear homogenizer is widely used in experiments and production of lacquer, coatings and pharmaceuticals industry.
Suitable for:

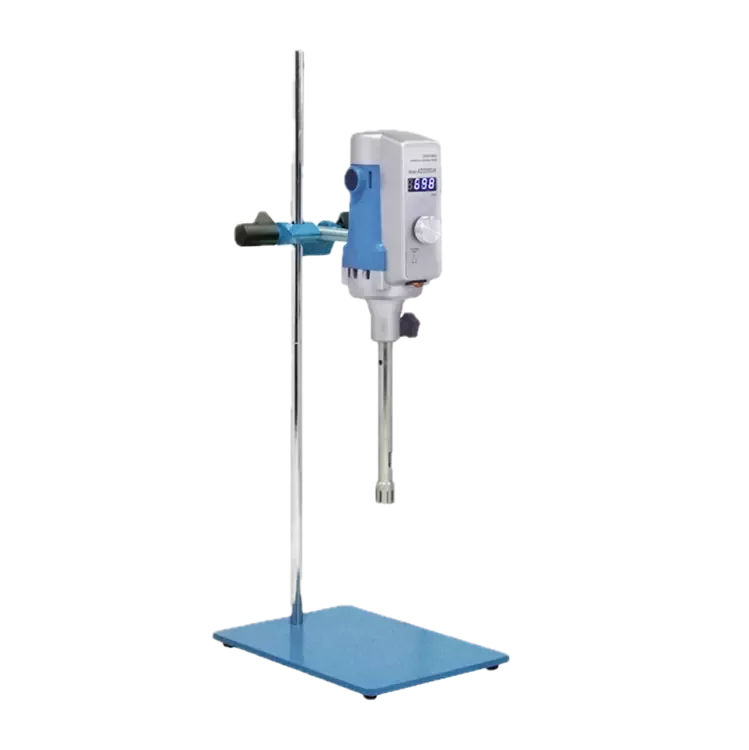

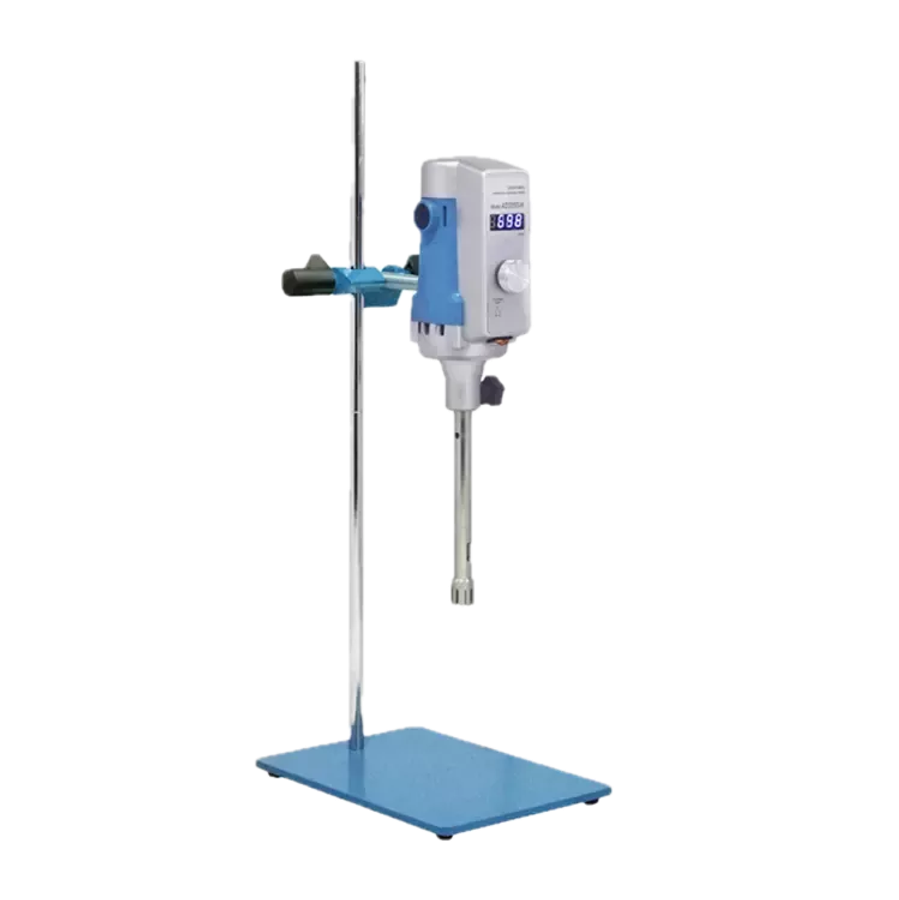

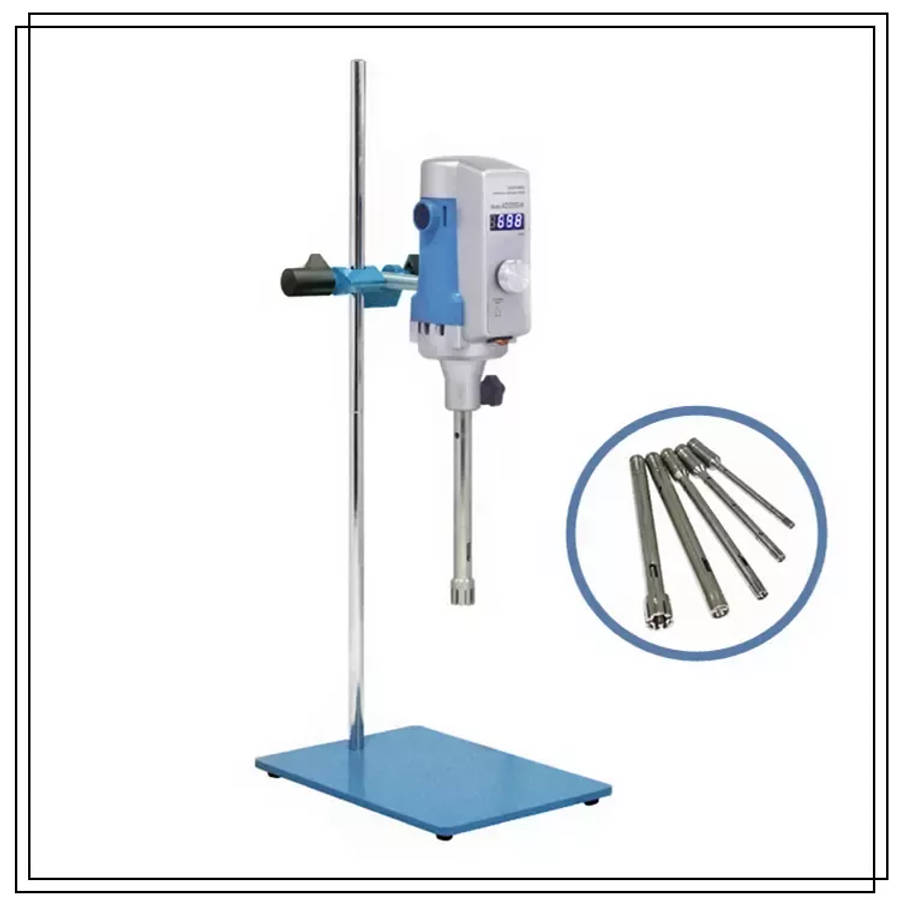

Ultrasonic High Shear Overhead Homogeniser Mixer, 28000rpm
high shear mixer homogenizer for medical laboratory, biological research, cosmetic products, chemical industry colleges and universities.
Model | AD500S-P digital display high shear emulsification machines |
Rated voltage | AC 220 V |
Rated frequency | 50/60 Hz |
Input Power | 850 W |
Output power | 500 W |
Rated torque | 17.1 N.cm |
Work mode | S1 (continuous) |
Operation control mode | Combined control knob |
Rotating speed adjustment range (idle running) | 2000~28000 rpm |
Rotating speed control type | Stepless |
Speed digital display | LED ( indicator bar ) |
Dynamic speed detection function | Yes |
Speed memory function | Yes |
Overload protection function | Yes |
Peak torque of the stirring head | 17.0 N.cm |
Stirring head material | AISI 316 |
Stirring head specifications | 12G 18G 24G 30G 36G |
Permissible ambient temperature | Not more than 40 degree centigrade |
Permissible relative humidity | Not more than 80% |
Size of the mixer (T * B * H) | 215*310*720 mm |
Weight | 8.7kg |
Dispersing and emulsifying working head parameters: | |||||
