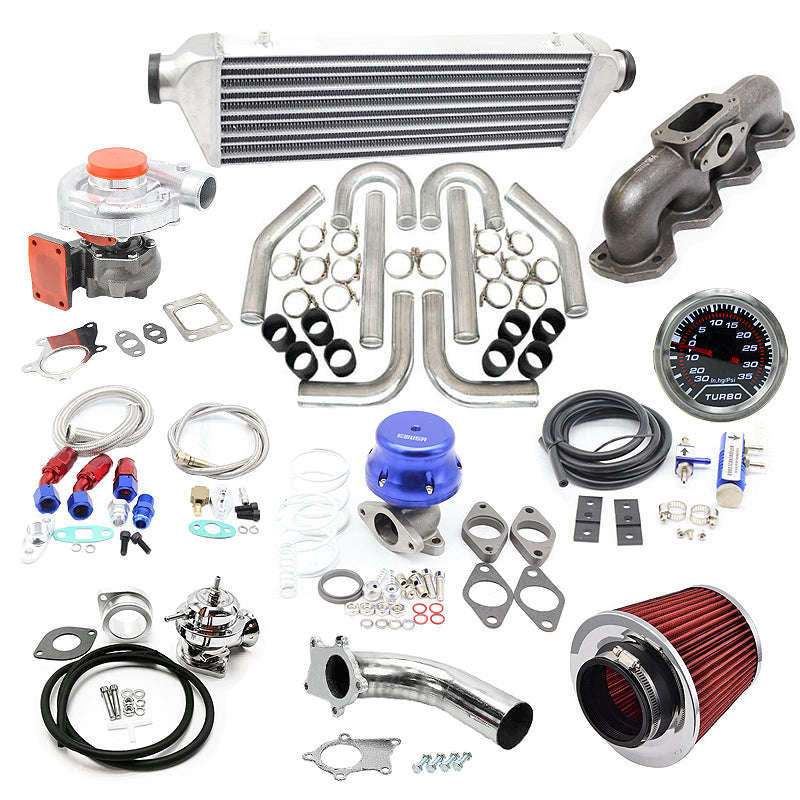

Honda H22a Bolt-On Turbo Kit

This is a complete Bolt-On Turbo kit rated for 300KW (400HP), Includes everything you need, Bolts and Gaskets included. Full bolt on kit, nothing else needed. Some vehicles will require certain fuel upgrades (Bigger Injectors/fuel pump) We recommend checking with your tuner/mechanic beforehand.

All prices include shipping, customs duties, and doorstep delivery no hidden fees, just hassle-free service.

PS: 2.2L H22A1/ H22A4 DOHC l4 Engine ONLY

T3/T4 Turbocharger

• 3" Inlet / 2" Outlet

• Hybrid Journal Bearing

• Oil-Cooled

• T3 Flange

• Thread Size: M10x1.25

• Compressor A/R: 0.50

  • Exducer: 3.0" (73.55 mm)

  • Inducer: 1.99" (57.75 mm)

  • Trim: 48.9

• Turbine A/R: 0.63

  • Exducer: 2.2" (75.46 mm)

  • Inducer: 2.56" (52.76 mm)

  • Trim: 61.9

• 5-Bolt Standard Exhaust Flange

• Boost Range: 2535 PSI Peak

• Includes: Gasket & Mounting Nuts

Stainless Steel Downpipe

• 3-Bolt Flange

• 3" Diameter

• TIG-Welded & Mandrel-Bent

• CNC Machined for Precision Fit

• Dual O2 Sensor Ports

• High Flow Design for Max Air Delivery

Front Mount Intercooler

• Oversize: 27" x 7" x 2.5"

• Core Size: 21" x 7" x 2.25"

• Inlet/Outlet: 2.5"

• Withstands 80+ PSI

• Temperature Drop: 150350°F

• Bar & Plate Design for Efficient Cooling

Intercooler Piping Kit

• Lightweight Aluminum Piping

• Includes Silicone Couplers & Clamps

• Bolt-On Kit Easy to Assemble

Cast Iron Turbo Manifold

• T3 / T4 / GT35 / T70 Compatible

• Wastegate Flange: 35mm / 38mm

• Bolt-On Fitment Durable & Reliable

RS-Type Blow-Off Valve (BOV)

• CNC Billet Aluminum Construction

• Adjustable to Prevent Boost Leak / Surge

• Aggressive Sound Profile

• Handles Up to 25 PSI / 450+ HP

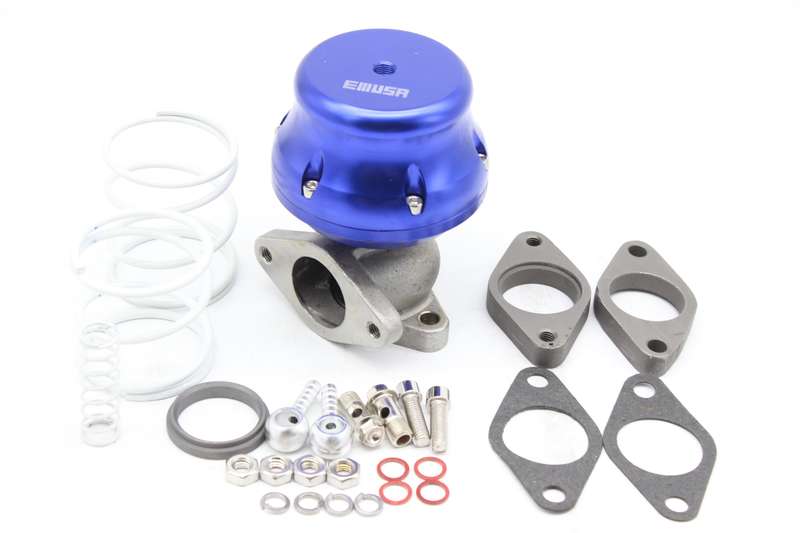

EMUSA Adjustable Wastegate (38mm)

• Spring Settings: 4 / 6 / 8 / 10 PSI

• High-Polish Finish

• CNC Machined

• Includes: Gasket, Flange & Hardware

Boost Controller

• Manual, TurboSmart Style

• Simple, Reliable Boost Control

Oil Line Kits

• Oil Feed Line: 36" Steel Braided

• Oil Return Line: AN-10, 20"

Note:
Exactly as pictured. No instructions included. Professional installation is highly recommended.
