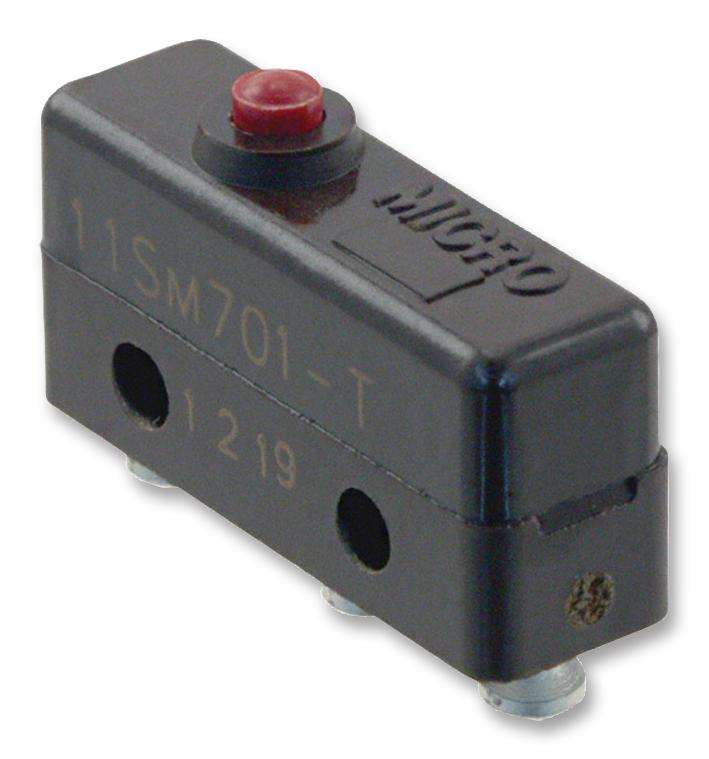

Microswitch, Subminiature, Pin Plunger, SPDT, Solder, 4 A, 30 VDCProduct InformationMicroswitch Type: SubminiatureMicroswitch Actuator: Pin PlungerContact Configuration: SPDTSwitch Terminals: SolderContact Current Max: 4AContact Voltage DC Nom: 30VDCProduct Range: SMContact Voltage AC Nom: 250VACOperating Force Max: 0.56NProduct OverviewThe SM series MICRO SWITCH subminiature Basic Switch combines small size andlight weight with ample electrical capacity, precision operation and long life.It is used for simple or precision on/off application needs in appliances,timing devices, office equipment, valves, vending machines and manually operateddevices.Long operating lifeElongated mounting hole for easier, more accurate mountingUL/CSA, cUL, ENEC and CE Approvals-54 to 121°C Operating temperature rangeChoice of actuation (plunger, integral and auxiliary actuators)Choice of electrical termination (solder, quick connect, PCB)ApplicationsCommunications & Networking, Aerospace, Defence, Military, Computers & ComputerPeripherals, Medical, Test & Measurement, HVAC, Sensing & Instrumentation
