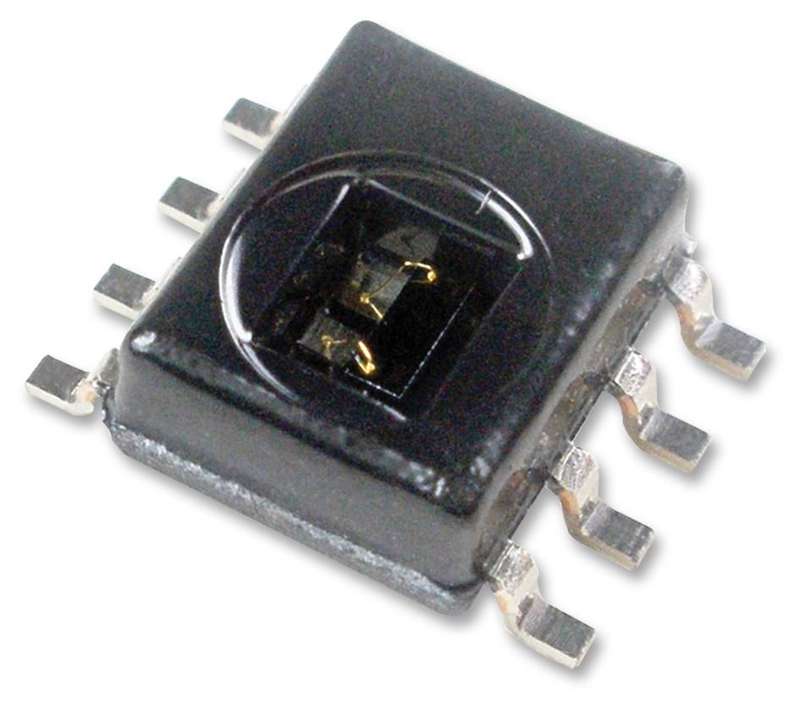

Honeywell (HIH6130-021-001) Temperature and Humidity Sensor, 10 to 90% RH

Temperature and Humidity Sensor, 10 to 90% RH, -25°C to 85°C, I2C, Digital,SOIC-8, 2.3 to 5.5 VProduct OverviewThe HIH6130-021-001 is a HumidIcon Digital Humidity/Temperature Sensor, digitaloutput-type relative humidity (RH) and temperature sensor combined in the samepackage. Industry-leading total error band (TEB) (±5%RH), Honeywell specifiestotal error band-the most comprehensive, clear and meaningful measurement - thatprovides the sensor's true accuracy of ±5%RH over a compensated range of 5 to50°C (41°F to 122°F) and 10 to 90%RH. Total error band should not be confusedwith Accuracy, which is actually a component of total error band. Manycompetitors simply specify the accuracy of their device; however, thespecification may exclude hysteresis and temperature effects and may becalculated over a very narrow range, at only one point in the range or at theirabsolute best accuracy level. It is then up to the customer to calibrate thedevice to make sure it has the accuracy needed for the life of the application.Industry-leading long term stability (1.2%RH over five years).Optional one or two %RH level alarm outputsMultifunction ASICHalogen-freeHydrophobic filter and condensation-resistantI²C digital communication formatIndustry-leading long-term stabilityEnergy efficientHigh resolutionApplicationsHVAC, Test & Measurement, Communications & Networking, Industrial, Sensing &InstrumentationProduct InformationHumidity Range: 10% to 90% Relative HumidityHumidity Accuracy: ± 4% RHTemperature Accuracy: ± 0.5°CRH Response Time: 6sTemperature Response Time: 30sSensor Interface Type: I2CSensor Output Type: DigitalSensor Case Style: SOICNo. of Pins: 8PinsOperating Temperature Min: -25°COperating Temperature Max: 85°CSupply Voltage Min: 2.3VSupply Voltage Max: 5.5VProduct Range: HumidIcon HIH6100
