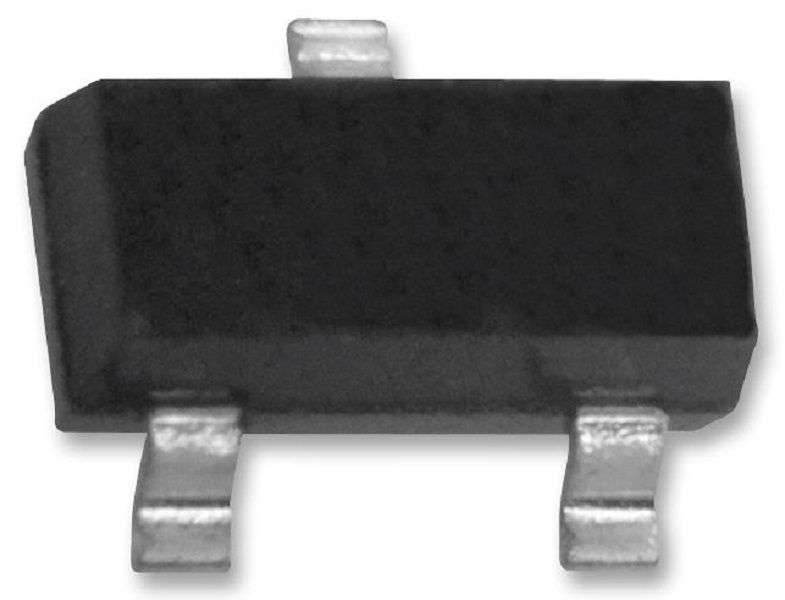

Honeywell (SL353LT) Hall Effect Sensor, Omnipolar, 1.8 µA, SOT-23, 3 Pins

Hall Effect Sensor, Omnipolar, 1.8 µA, SOT-23, 3 Pins, 2.2 V, 5.5 VProduct OverviewThe SL353LT is an omnipolar Sensor IC, small, versatile, digital hall-effectdevices operated by the magnetic field from a permanent magnet or anelectromagnet. This sensitive device is designed to meet a wide range ofpotential applications with low power requirements. The sensor IC responds toeither a north or south pole, meaning that they do not require the magnetpolarity to be identified, providing an easier installation and potentiallyreducing system cost. This low-power sensing devices use BiCMOS technology and atiming circuit that turns the power on for only a short time - it is off for therest of the period (duty cycle) - significantly reducing the average currentconsumption. Both products can operate from a supply voltage as low as 2.2V,promoting energy efficiency. The push-pull output does not require a pull-upresistor and can operate with very low current levels, potentially helping toreduce cost and minimizing the total current consumption.Very low duty cycle (0.013% typical)Energy efficientPush-pull output does not require external pull-up resistorNon-chopper stabilized designVersatileStable and wide temperature rangeSubminiature sizeHelps to reduce total system costApplicationsPower Management, Portable Devices, Industrial, Computers & ComputerPeripherals, Sensing & Instrumentation, Medical, Security, Test & MeasurementProduct InformationHall Effect Type: OmnipolarOutput Current: 1.8µASensor Case Style: SOT-23No. of Pins: 3PinsSupply Voltage Min: 2.2VSupply Voltage Max: 5.5VOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: SL353
