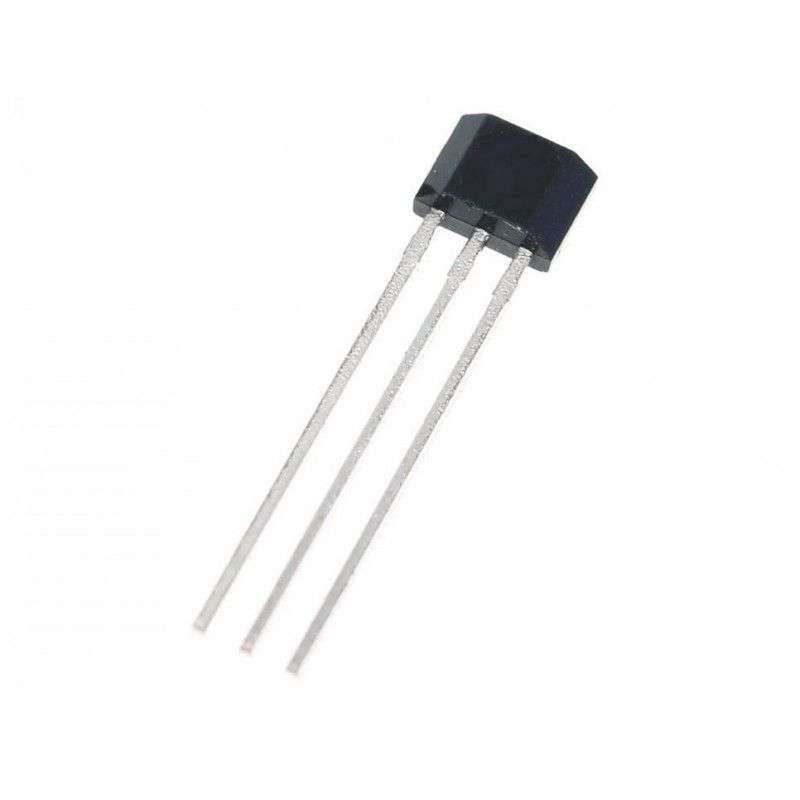

Honeywell (SS443A) Hall Effect Sensor, Unipolar, 20 mA, TO-92, 3 Pins

Hall Effect Sensor, Unipolar, 20 mA, TO-92, 3 Pins, 3.8 V, 30 VProduct OverviewThe SS443A is a temperature compensated digital hall effect sensor IC in 3 pinTO-92 package. This small, versatile digital hall effect device is operated bymagnetic field from permanent magnet or an electromagnet. It is designed torespond to alternating north and south poles or to south pole only. Band gapregulation provides stable operation over 3.8VDC to 30VDC supply voltage range.The SS443A is capable of continuous 20mA sinking output and may be cycled ashigh as 50mA maximum. Its 3.8V capability allows for use in many potential lowvoltage applications. The digital, open collector sinking type output is easilyinterfaced with wide variety of electronic circuits.Unipolar magnetics, medium gauss operating characteristicsStraight leads, 14.99mm long and 1.30mm spacingQuad hall IC design minimizes mechanical stress effectsTemperature compensated magnetics helps provide stable operation over a widetemperature rangeAutomated component placement and potentially reduces installation costsBroad supply voltage capability from 3.8VDC to 30VDC for application flexibilityDigital, open collector sink output for easy interfacing with variety of commonelectronic circuitsOperating temperature range from -40°C to 150°C (-40°F to 302°F)ApplicationsSensing & Instrumentation, Medical, Industrial, Robotics, Motor Drive & ControlProduct InformationHall Effect Type: UnipolarOutput Current: 20mASensor Case Style: TO-92No. of Pins: 3PinsSupply Voltage Min: 3.8VSupply Voltage Max: 30VOperating Temperature Min: -40°COperating Temperature Max: 150°CProduct Range: SS400
