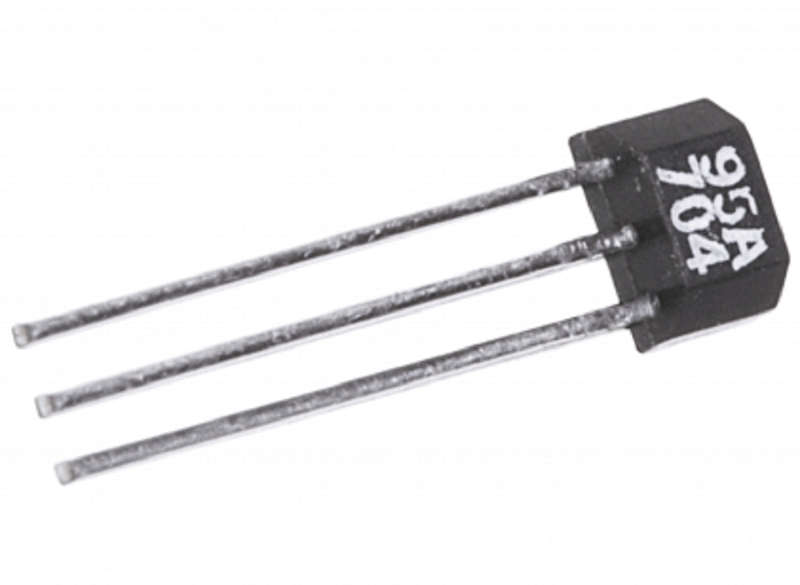

Honeywell (SS495A) Hall Effect Sensor, Linear, 600 µA, TO-92, 3 Pins

Hall Effect Sensor, Linear, 600 µA, TO-92, 3 Pins, 4.5 V, 10.5 VProduct OverviewThe SS495A is a high performance, miniature ratiometric linear (MRL) solid statehall effect sensor in 3 pin TO-92 package. This small and versatile sensor isoperated by magnetic field from permanent magnet or an electromagnet. Theratiometric output voltage is set by supply voltage and varies in proportion tostrength of magnetic field. The integrated circuitry provides increasedtemperature stability and sensitivity. Laser trimmed thin film resistors providehigh accuracy (null to ±3%, sensitivity up to ±3%) and temperature compensation.The quad hall sensing element minimizes the effects of mechanical or thermalstress on output. The positive temperature coefficient of sensitivity (+0.02%/°Ctypical) helps compensate for negative temperature coefficients of low costmagnets providing robust design over wide temperature range.Power consumption of 7mA at 5VDC for energy efficiencySingle current sinking or current sourcing outputLinear output for circuit design flexibilitySupply current of 8.7mA at 5VDCRail to rail operation provides more useable signal for higher accuracyOperating temperature range from -40°C to 150°CSupply voltage range from 4.5VDC to 10.5VDCSensitivity of 3.125mV/GLinearity (% of span) of 1.0%Response time of 3µsApplicationsSensing & Instrumentation, Motor Drive & Control, Automotive, IndustrialProduct InformationHall Effect Type: LinearOutput Current: 600µASensor Case Style: TO-92No. of Pins: 3PinsSupply Voltage Min: 4.5VSupply Voltage Max: 10.5VOperating Temperature Min: -40°COperating Temperature Max: 150°CProduct Range: SS490
