Note:
The expansion board cannot be used alone, it needs to be used together with the host and slave.
T-Keyboard-S3 Pro:

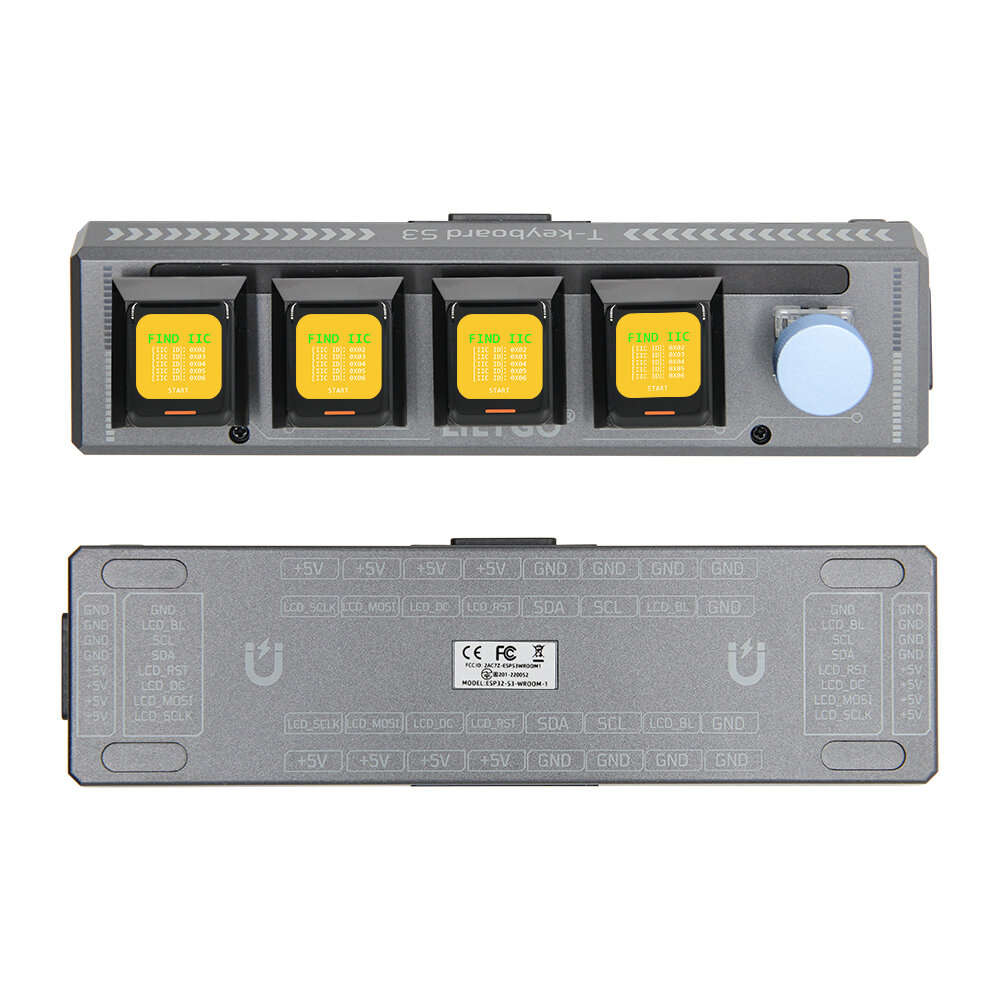

The T-Keyboard-S3 Pro is a USB mechanical keyboard powered by the ESP32-S3, featuring four customizable keys, each equipped with a 0.85-inch 128×128 color display that can show icons or characters for enhanced interaction. Additionally, it includes an encoder for precise control, offering more functionality. Ideal for development or DIY projects that require information display and accurate input, it is highly versatile and supports flexible customization.The T-Keyboard-S3 Pro differs from the T-Keyboard-S3 by adding an encoder for more precise control. It also supports expansion with a Magnetic 16 Pin-Holder for connecting additional boards. The T-Keyboard-S3 Pro features a more esthetically pleasing custom-molded shell, offering both improved functionality and enhanced durability.
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.

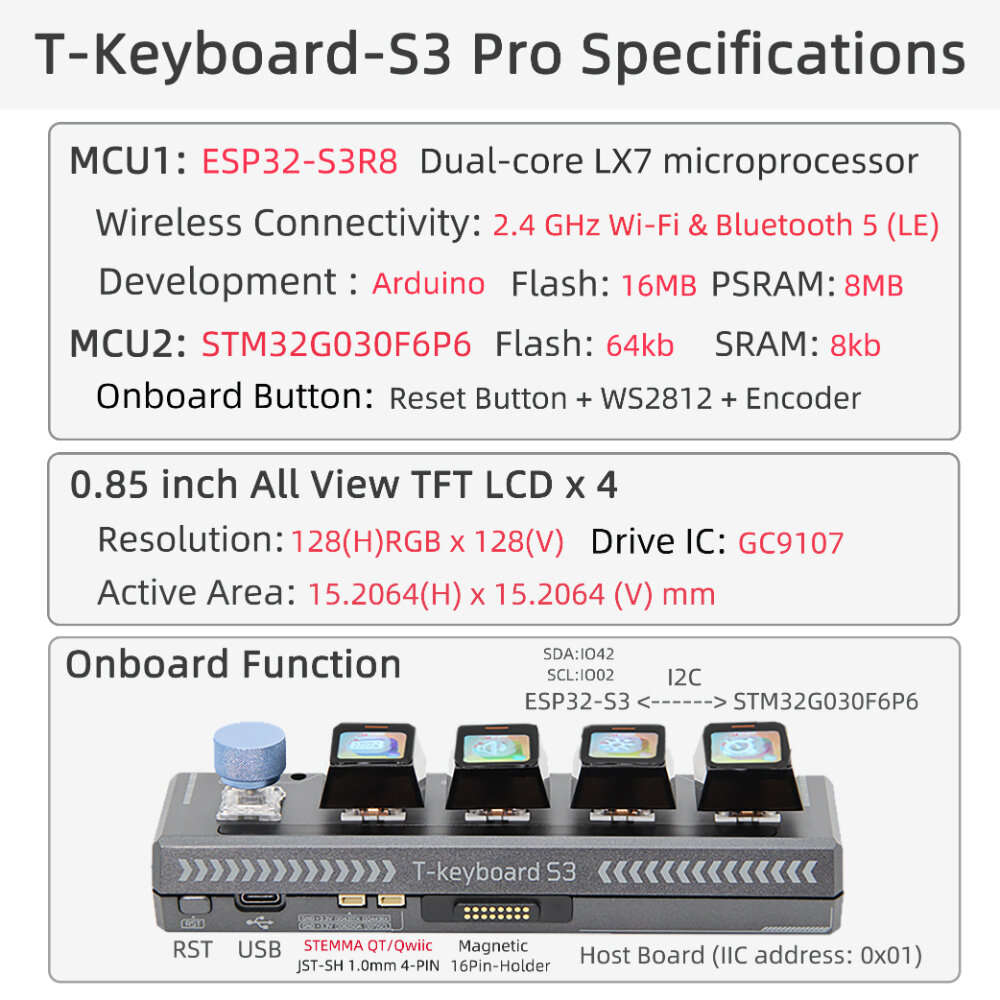

Specifications:
MCU1:
Type: ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity: 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Environment: Arduinos
Flash Memory: 16MB
PSRAM: 8MB
MCU2:
Type: STM32G030F6P6
Flash Memory: 64kb
SRAM: 8kb
Onboard Buttons: Reset Button + WS2812 + Encoder
Display:
0.85 inch All View TFT LCD x 4
Resolution: 128(H)RGB x 128(V)
Active Area: 15.2064(H) x 15.2064(V) mm
Drive IC: GC9107
Package Included:
1 x T-Keyboard S3 Pro Host
1 x USB Type-C cable 1M [180° rotatable]
or
1 x T-Keyboard S3 Pro Slave
