HOT MINI GPS/SMS/GPRS TRACKER TK103A VEHICLE CAR REALTIME TRACKING DEVICE SYSTEM
FEATURES and FUNCTIONS:
1. Car GPS Tracker & Alarm System with Web based and PC based software by SMS/GPRS, Geo fence supported
2. Support orientation without orientated server: it can find out Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually, you can find out the real-time information of position.
3. If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
4. Remote Engine-stop and Resume.
5. Tracking function by timing and frequency
6. Authorized number added and deleted function
7. Support hidden alarm and monitor function
8. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
9. Power supply disconnection alarm.
10. Door alarm
11. ACC alarm
12. Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
13. Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
14. Low battery alarm function
15. Check the vehicle status
Functions:
1. Support non-server based location
2. Location memorization
3. Auto location report
4. Authorize/delete the tracking phone number
5. Covert alert & voice surveillance
6. Geo-Fence: alert in case of breaching the predefined district
7. Movement alert: alert in case of movement
8. Speed alert: alert in case of excess of the pre-defined speed
9. Power alert: alert when device is being switched off
Applications:
1. Anti-theft of the vehicle/heavy equipment etc.
2. Protect the child / the old / the disabled / pet etc.
3. Provide peace-of-mind for businessman;
4. Personnel management;
5. Covert criminal Tracking
6. The GPS devices support phone tracking and 8 languages (English, Spanish, Portuguese, Arabic, Thai language, Italian, German, Chinese) website tracking.
7. Four types Tracking ways:
Tracking way A>: SMS + Map software; It's free
Tracking way B>: PDA Cell Phone; It's free
Tracking way C>: Real time tracking, and track via your computer; It's free
Tracking way D>: simple & useful real time tracking via our website which you can find on manual. [only the on-line web page tracking software has one week free trial, after that it is about 10USD per year.]
8. Build in 1M memory & Support 2G SD card: This is a latest update feature!
Specifications
1. DIM. 54*62*26mm
2. Weight: 120g
3. Network: GSM/GPRS
4. Band: 850/900/1800/1900Mhz
5. GSM/GPRS Module: Simcom300d or Simcom340d
6. GPS Chip: SIRF3 chip
7. GPS Sensitivity: -159dBm
8. GPS Accuracy: 5m
9. GPS Start time: Cold status: 45s, Warm status: 35s, Hot status: 1s
10. Voltage of car power system: 12 V -24V
11. Backup battery: Chargeable 3.7V 800mAh Li-ion battery
12. Storage Temp. -40 to +85
13. Operation Temp. -20 to +65
14. Humidity 5%--95% non-condensing
Functions
Tracking; Monitor; Geo-fence; Movement alert; Over speed alert; SOS Button; Low battery alert; Hidden number tracking; Power off alarm; Send SMS cut off/resume the oil and power system, arm, door alarm, sensor alarm, ACC alarm; Support 4G SD card; Support TCP and UDP protocol.
In The Package:

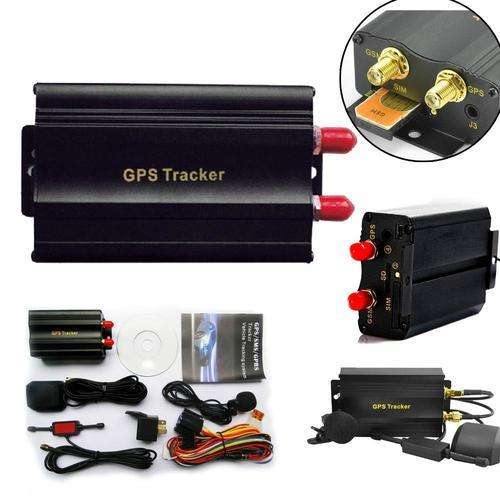

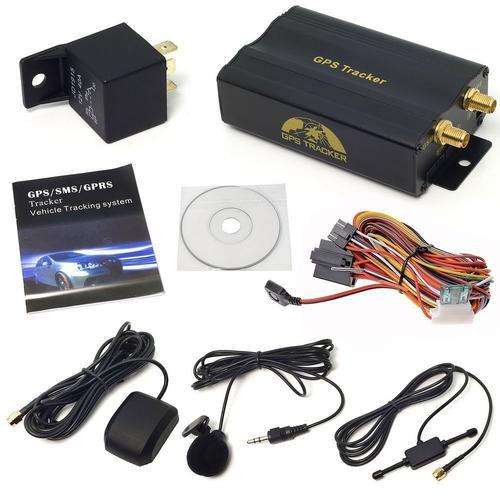

1 x Vehicle Car GPS Tracking Device tk103a
1 x GPS Antenna 3 meters long
1 x GSM Antenna 2 meters long
1 x 10-PIN Harness
1 x User Manual
1 x Lapel microphone
