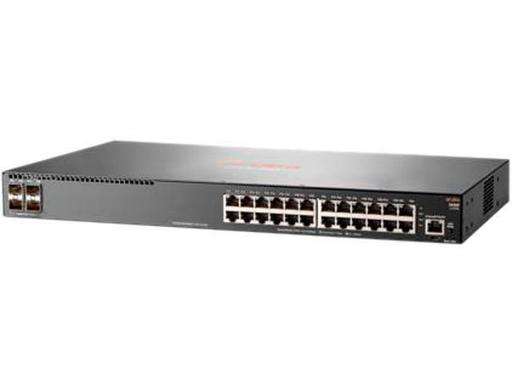

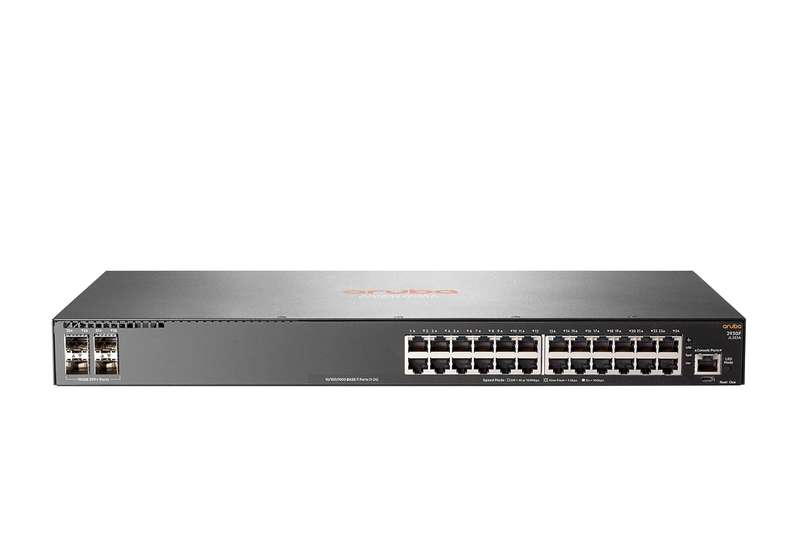

This high-performance Layer 3 access switch is ideal for enterprise edge, SMB, and branch office deployments. The HPE Aruba 2930F 24G 4SFP+ (JL253A) combines simplicity and advanced management with robust performance. With 24 autosensing 10/100/1000 RJ-45 ports and 4 SFP+ uplink slots, it delivers fast and flexible connectivity for growing networks.
The switch includes powerful Layer 3 routing, integrated security, and traffic prioritization features. Designed with side-to-side airflow and a compact 1U form factor, the 2930F enables efficient rack integration in diverse environments. It is compatible with HPE Aruba Central and AirWave for centralized management.
Key Features & Benefits
24 × RJ-45 10/100/1000 autosensing ports for versatile gigabit access
4 × 1/10GbE SFP+ uplinks provide fiber-ready high-speed expansion
Dual-core ARM Cortex A9 CPU with 1 GB RAM and 4 GB eMMC storage
Advanced Layer 3 routing: RIP, OSPF, static routes, and IPv6 support
Aruba Central, AirWave, and CLI/web/SNMP management ready
Ideal Uses
Enterprise branch offices requiring secure gigabit access switching
SMB networks looking for cost-effective, fiber-capable core switches
Education environments needing reliable Layer 3 switching and VLAN support
Government and healthcare sites with strict uptime and scalability demands
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: HPE Aruba Networking
Model: 2930F 24G 4SFP+ (JL253A)
Ports:
24 × RJ-45 10/100/1000 Mbps autosensing
4 × SFP+ 1/10GbE PHY-less
Console Port: 1 × dual-personality (RJ-45 or USB micro-B)
Switching Capacity: 128 Gbps
Throughput: Up to 95.2 Mpps
Latency:
<3.8 s (1000 Mb, 64-byte packets)
<2.9 s (10 Gb, 64-byte packets)
MAC Table Size: 32,768 entries
Routing Table:
2,000 IPv4
1,000 IPv6
200 OSPF
256 Static
10,000 RIP
Memory:
1 GB DDR3 SDRAM
4 GB eMMC
12.38 MB packet buffer
Power Rating: 29.3 W max, 19.5 W idle
Voltage/Frequency: 100127 / 200240 VAC, 50/60 Hz
Acoustic Levels: Power 49.7 dB, Pressure 37.1 dB
Airflow Direction: Side-to-side
Dimensions: 17.42" (W) × 7.88" (D) × 1.73" (H)
Weight: 5.31 lb (2.41 kg)
Certifications:
Safety: UL, EN, IEC, CSA
Emissions: FCC, CISPR 32, ICES-003, VCCI
Immunity: IEC 61000 series compliant
Management Support:
HPE Aruba Central, AirWave, IMC
CLI, Web GUI, SNMP v1/2/3, RMON, FTP, Telnet
Warranty: 3 Month Carry-in Warranty
What's in the Box: HPE Aruba 2930F 24G 4SFP+ Switch
