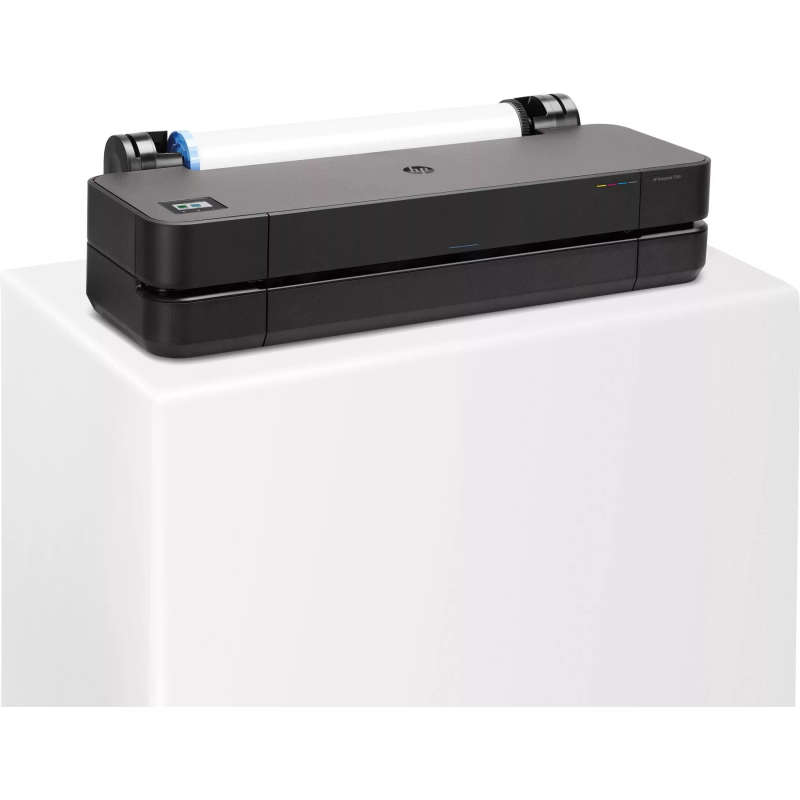

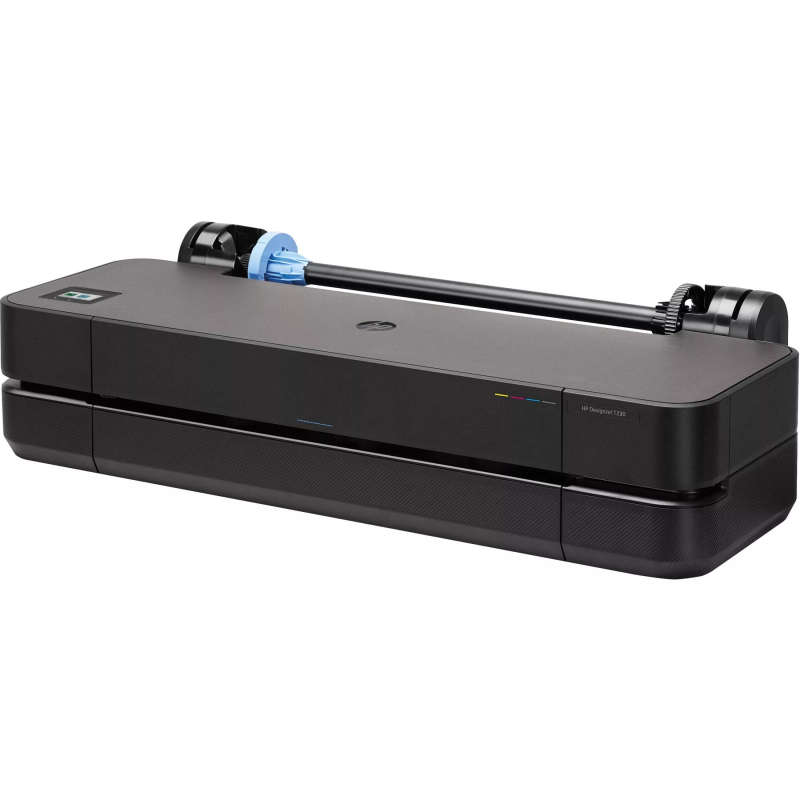

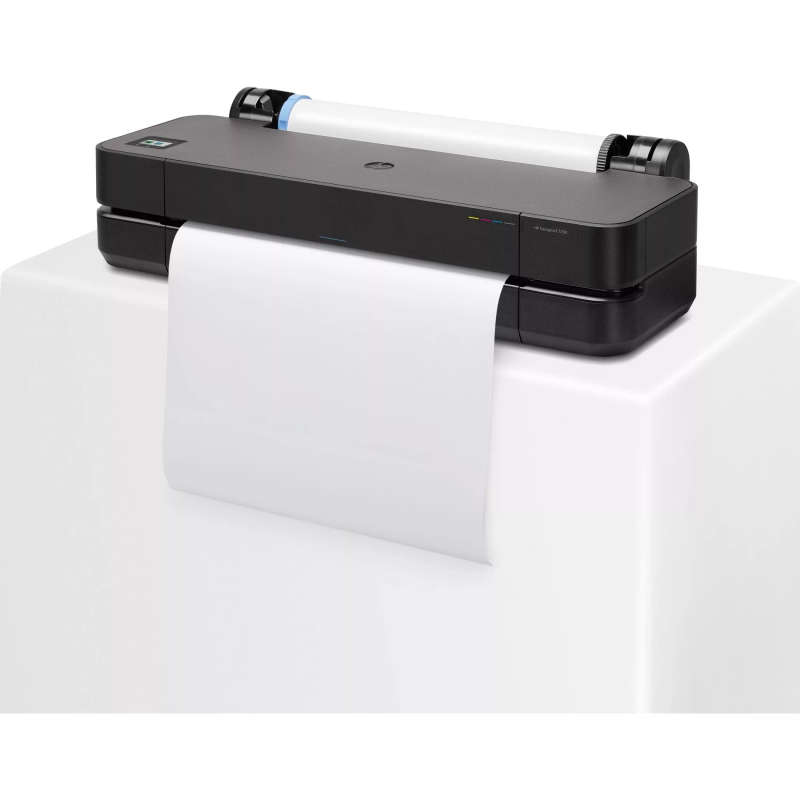

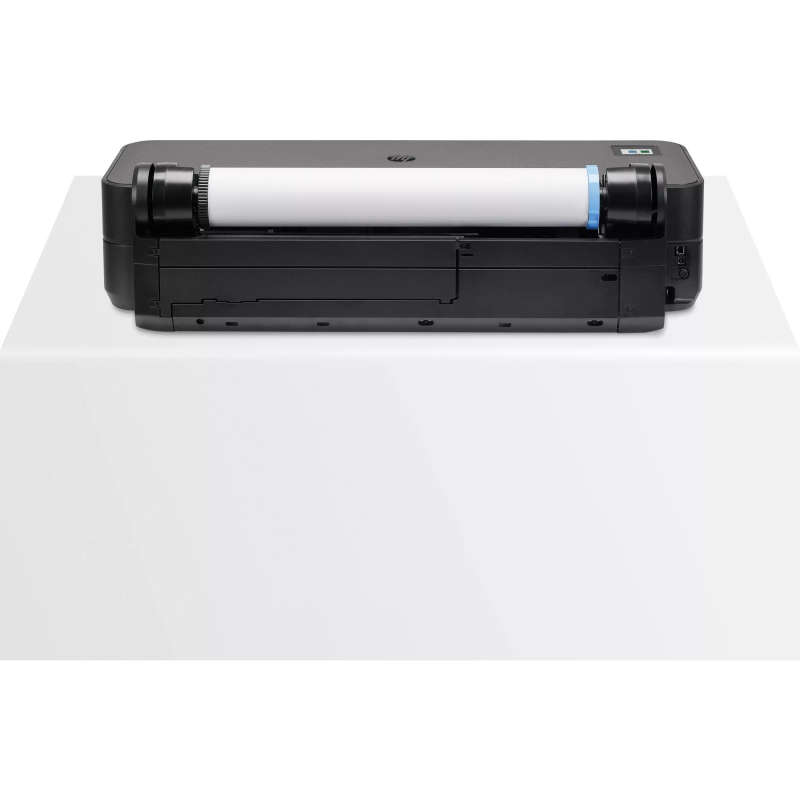

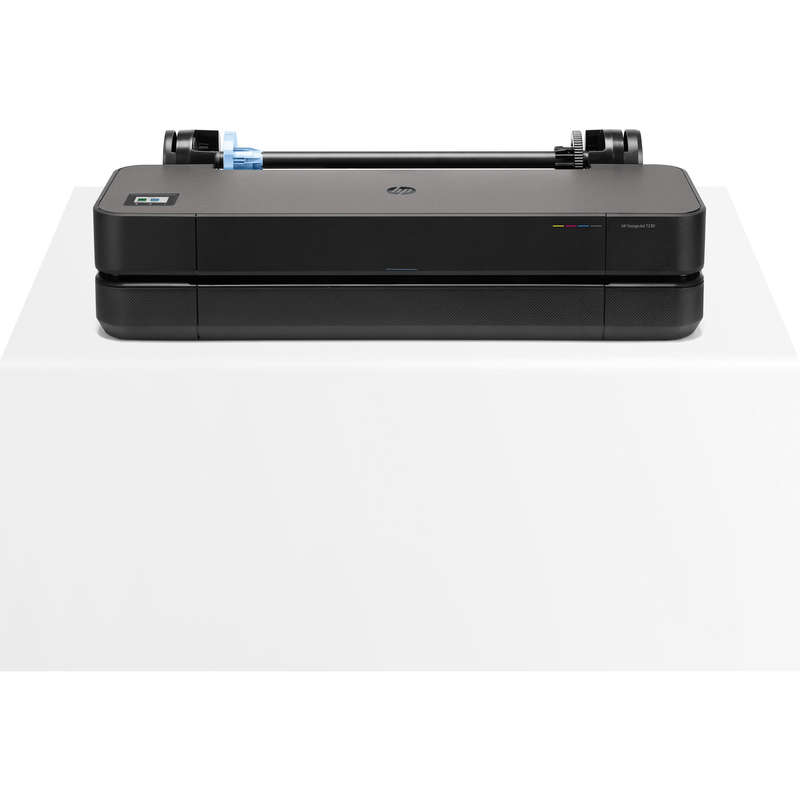

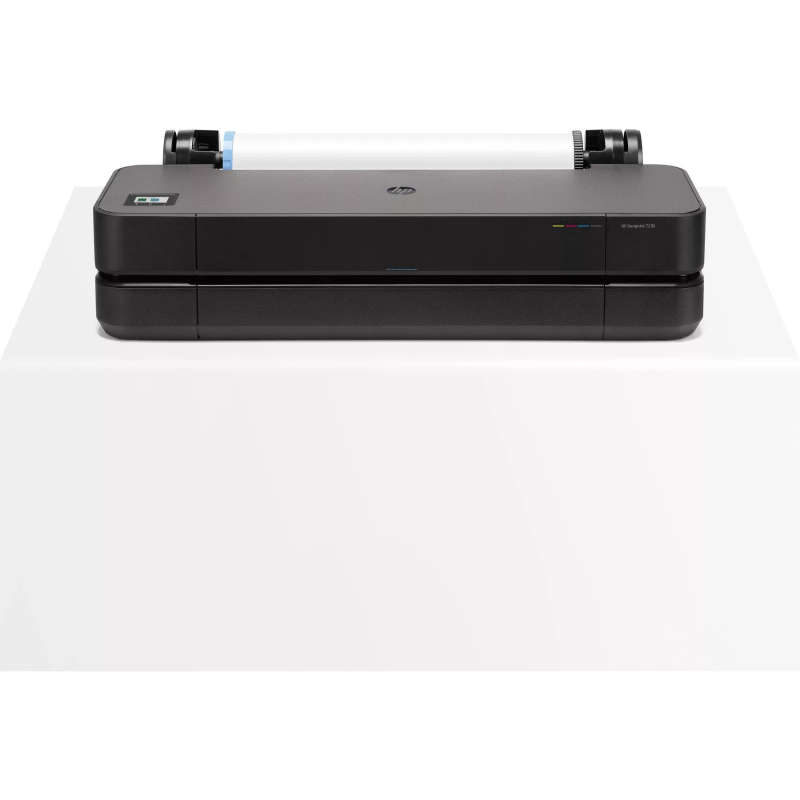

HP Designjet T230 Wi-Fi Thermal inkjet Colour Large Format Printer 5HB07A
Designed to fit your office, budget, and the way you work, the world's smallest plotters provide outstanding simplicity. Send multiple files in just one click. Print your A1 plot as fast as 35 seconds. 500 MB memory.
This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges
Extreme simplicity
Save time with the world's easiest job submission, send multiple files in one click with HP Click. Print with confidence you'll get the results you expect with an intuitive driver and true print preview. With an accessory option, print multi-size A3 and A1 projects without manually switching the media source.
Fits the way you work
Avoid waiting by the printer with high-speed printing as fast as 35 seconds per A1 plot. Be more productive, save time from job prep to final print by printing your projects up to 2X faster. Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
Fits your office and budget
Specifications:
Functions: Print
Model size: 610 mm
Print speed: 35 sec/page on A1, 68 A1 prints per hour
Print technology: HP Thermal Inkjet
Printer drivers included: Raster driver for Windows and macOS
Print quality color (best): Up to 2400 x 1200 optimised dpi
Print languages: JPEG, URF
Number of print cartridges: 4 (C, M, Y, K)
Ink types: Dye-based (C, M, Y); pigment-based (K)
Line accuracy: ±0.1%
Maximum optical density (black): 8 L* min/2.10 D
Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Memory: 512 MB
Internal Storage: None
Finished output handling: Sheet feed, roll feed, automatic horizontal cutter
Media sizes standard (metric rolls): 279 to 610 mm
Media sizes, custom: 210 x 279 to 610 x 1897 mm
Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended: 60 to 280 g/m²
Roll external diameter: 100 mm
Media thickness: Up to 11.8 mil
Power: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption: 35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Energy star certified: Yes
Operating temperature range: 5 to 40ºC
Minimum dimensions (W x D x H): 1013 x 440 x 285mm
Weight: 21.5 kg
What's in the box:
- HP DesignJet T230 24-in Printer,
- printhead, introductory ink cartridges,
- spindle, quick reference guide,
- setup poster, power cord
Software included: HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
