Designed for performance-driven enterprise networks, the HP ProCurve 3500yl-48G-PoE yl delivers full Layer 3 routing, exceptional Gigabit throughput, and reliable Power over Ethernet (PoE) across all 48 ports. With a switch fabric speed of 153.6 Gbps and forwarding rates up to 111.5 Mpps, it is engineered for core and edge deployment in businesses that demand speed, stability, and seamless scalability.
With robust IPv6 support, sFlow monitoring, extensive multicast and VLAN capabilities, and security protocols like 802.1X, this unit ensures high visibility and control across large-scale networks. Its open module slot provides flexibility to upgrade to 10GbE uplinks, making it a smart investment for high-performance, future-ready environments.
Key Features & Benefits
48 x 10/100/1000 autosensing ports with PoE power up VoIP phones, cameras, and APs directly
Layer 3 switching with advanced IPv4 and IPv6 support ideal for segmented enterprise routing
153.6 Gbps switch fabric with 111.5 Mpps throughput ensures high-speed performance
398W available PoE sufficient for high-density deployments without external injectors
Dual-personality uplinks and optional 10GbE module support scalable backbone integration
Full management suite CLI, Web, SNMP, sFlow, LLDP-MED, and advanced diagnostics
Ideal Uses
Core switch in SME networks requiring advanced Layer 3 capabilities
Campus, healthcare, or retail environments needing dense PoE for VoIP and IP surveillance
Industrial or multi-floor buildings with advanced VLAN and routing segmentation
Environments preparing for IPv6 migration or network-wide monitoring and traffic analysis
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.

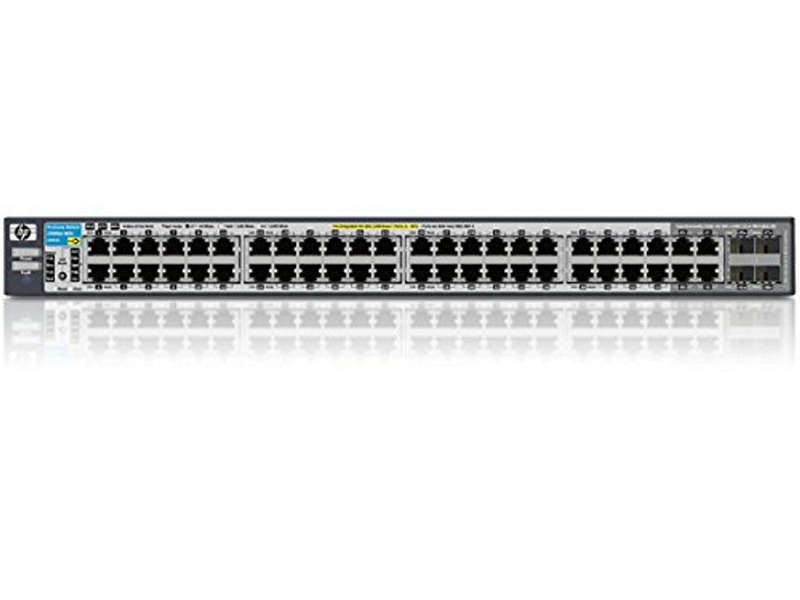

Manufacturer & Model: HP ProCurve 3500yl-48G-PoE yl (J8693A)
Form Factor: 1U Rackmount
Switch Fabric Speed: 153.6 Gbps
Forwarding Rate: 111.5 million pps
Ports:
44 x 10/100/1000Base-T PoE Ports
4 x Dual-Personality Ports (RJ-45 or SFP)
1 x Open Expansion Slot (for 10GbE module)
PoE Power Budget: 398 Watts
Layer Support: Layer 3
Routing Table Size: 10,000 entries
MAC Address Table: 64,000 entries
DRAM: 256 MB DDR SDRAM
Flash Memory: 128 MB Compact Flash
Protocols & Features: IPv6, OSPF, RIP, PIM, MLD, IGMP, sFlow, QoS, SSL, SSH, VLAN, RADIUS, 802.1X
Management: HP PCM, Web GUI, CLI, SNMP v1/v2/v3, LLDP-MED, XRMON
Power Input: 100127 / 200240 VAC | 50/60 Hz
Power Consumption:
Max: 705W
Standby: 142W
Thermal Output: 1144 BTU/hr
Operating Temperature: 0 to 55°C
Operating Humidity: 15% to 95% (non-condensing)
Dimensions: 16.93" W x 17.44" D x 1.73" H
Weight: 16.09 lbs (7.3 kg)
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch, Power Cable
