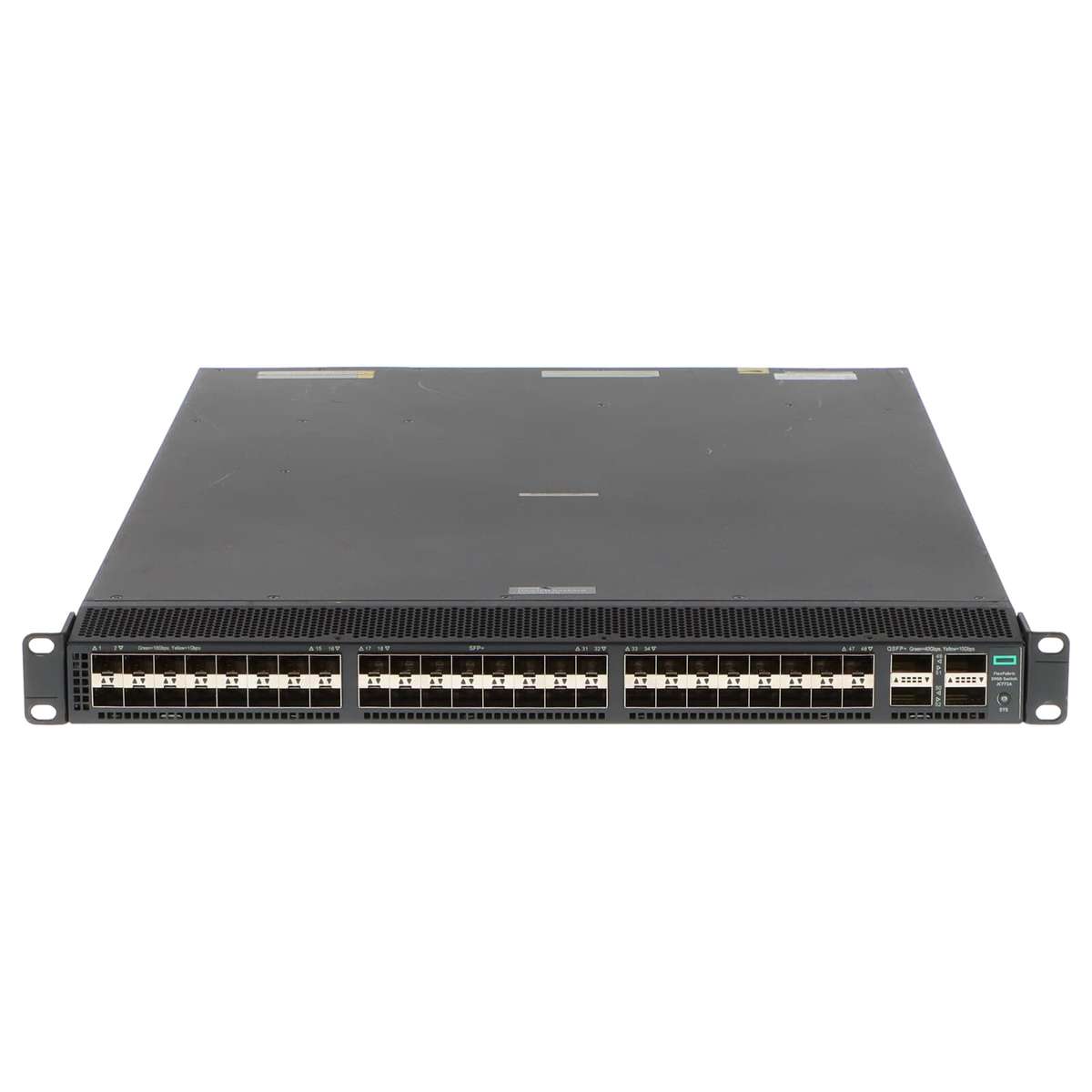

The HP JC772A 5900AF is a high-performance 48-Port 10GbE SFP+ switch with 4 × 40GbE QSFP+ uplinks, purpose-built for enterprise and data center networks. Offering a switching capacity of 1280 Gbps and a forwarding rate of 952 Mpps, it delivers reliable, high-speed traffic handling for demanding applications.
With support for advanced Layer 3 routing protocols, VLANs, QoS, ACLs, and IPv6, this refurbished HP switch provides resilient connectivity and consistent performance for growing business networks. Designed for rack-mount installations, it is an ideal choice for core, distribution, or high-performance access layers.
Key Features & Benefits
High-Speed Connectivity 48 × 10GbE SFP+ ports and 4 × 40GbE QSFP+ uplinks.
Enterprise-Class Performance 1280 Gbps switching capacity and 952 Mpps throughput.
Advanced Layer 3 Routing Supports OSPF, BGP, RIP, ECMP, and static routing.
Secure & Reliable Features ACLs, QoS, and full IPv6 support for modern networks.
Data Center Ready Built for performance-driven core or aggregation layers.
Ideal Uses
Enterprise data centers requiring high-bandwidth switching.
Businesses running virtualization and cloud applications.
Aggregation or distribution layers in high-performance networks.
Secure and scalable Layer 3 networking environments.
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: HP
Model: JC772A 5900AF-48XG-4QSFP+
Device Type: Managed Layer 3 Switch
Form Factor: Rack Mountable 1U
Performance:
Switching Capacity: 1280 Gbps
Forwarding Rate: 952 Mpps
Routing Table Entries: 16,000
MAC Address Table: 128K Entries
Memory:
2GB SDRAM
512MB Flash
Ports & Interfaces:
48 × 10GbE SFP+
4 × 40GbE QSFP+
1 × RJ-45 Console
1 × RJ-45 Management
1 × USB
Protocols & Features:
Routing: OSPF, BGP, RIP, ECMP, VRRP, Static Routing
Features: VLANs, QoS, ACL, DHCP, IPv6, STP, RSTP, MSTP, Port Mirroring, Storm Control, WRED
Security: SSH, ACLs, Secure Management
Standards: IEEE 802.1d, 802.1q, 802.1p, 802.1w, 802.1s, 802.3ad (LACP), 802.3ae, 802.1ab (LLDP)
Power:
Power Supply Hot-Plug, Plug-In Module
Input Voltage: 100240V AC, 50/60 Hz
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch, Power Cable
