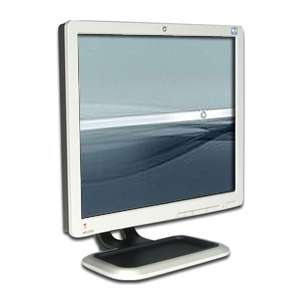

HP L1710 17" LCD Monitor
Panel Type 17-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
17 in (43.2 cm)
Screen Opening
(W x H)
13.3 x 10.6 in (33.9 x 27.1 cm)
Viewing Angle (typical)* 160 degrees horizontal/160 degrees vertical (10:1 minimum contrast ratio)
Brightness (typical)* 300 nits (cd/m2)
Contrast Ratio (typical)* 800:1
Response Rate 5 ms
Pixel Pitch 0.264 mm
Backlight Lamp Life
(to half brightness)
50 K hours
* All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
On Screen Display (OSD)
Controls
Buttons or Switches 3-button OSD (menu, minus, plus); power on/off
Languages English, French, German, Spanish, Italian, Dutch, Simplified Chinese
(Portuguese and Japanese on regional models)
User Controls Image Control (auto, horizontal, vertical)
Color Temperature (6500k, 9300k, Custom, sRGB)
Brightness
Contrast
Clock, Clock Phase
Monitor Management (power saver, sleep, power on recall, power on status,
DDC/CI support, bezel power LED)
Factory Reset
Signal Interface/
Performance
Horizontal Frequency 24 to 83 kHz
Vertical Frequency 50 to 77 Hz
Native Resolution 1280 x 1024 @ 60 Hz (recommended) (SXGA)
Maximum Resolution
(Digital)
N/A
Preset VESA Graphic
Modes (non-interlaced)
1280 x 1024 @ 60 Hz and 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, and 75 Hz
1152 x 870 @ 75 Hz (Mac)
1152 x 900 @ 76 Hz (Sun)
832 x 624 @ 75 Hz (Mac)
800 x 600 @ 60 Hz, 72 Hz, and 75 Hz
720 x 400 @ 70 Hz
640 x 480 @ 60 Hz, 72 Hz, and 75 Hz
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 15
Anti-Glare Yes
Anti-Static Yes
Default Color
Temperature
6500 degrees Kelvin
Video Input Plug and Play Yes
Input Signal 15 pin D-sub (Analog VGA)
Input Impedance 75 ohms (2 % value change allowed)
Sync Input TTL separate synch
Video Cable Detachable 15-pin D-sub mini connector
Video Cable Length 70.8 in (1.8 m)
Power Input Voltage 100 ~ 240 VAC
Nominal Current < 0.50 Ampere
Frequency 50 ~ 60 Hz
Maximum < 30 watts
Typical 29 watts
Power Saving < 2 watts
Power Cable Length 74.8 in (1.9 m); detachable
Mechanical Dimensions (H x W x D) Unpacked w/stand 15.2 x 14.8 x 7.5 in (38.6 x 37.7 x 19.2cm)
Display Head only 12.4 x 14.8 x 2.4 in (31.6 x 37.7 x 5.7 cm)
Packaged 17.2 x 17.6 x 6.9 in (43.7 x 44.8 x 17.5 cm)
Weight Head only 8.6 lb (3.9 kg)
Unpacked 10.4 lb (4.7 kg)
Packaged 13.5 lb (6.1 kg)
Tilt Range -5 to +25 degrees vertical tilt
Swivel Range None
Height Adjustable No
Pivot Rotation No
Base and Stand Detachable
Environmental Temperature –
Operating
41° to 95° F (5° to 35° C) non-condensing
Temperature –
Non-operating
-4° to 140° F (-20° to 60° C)
Humidity – Operating 20% to 80% non-condensing
Humidity –
Non-operating
5% to 90%
Altitude – Operating 0 to 12,000 ft (0 to 3,658 m)
Altitude –
Non-operating
0 to 40,000 ft (0 to 12,192 m)
Shipping will be R300 due too weight of item...
