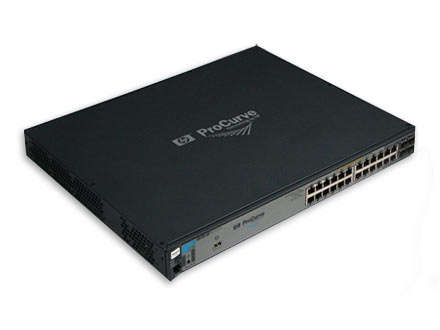

The HP ProCurve 2910al is more a design of function over form, with its 24 Power over Ethernet plus (PoE+) gigabit Ethernet ports on the front. The ProCurve offers configurable power up to 33W per portÃÂÂÂÂÃÂÂÂÂÃÂÂÂÂàalthough the switch only has a 382W PSU, so power has to be rationed accordingly across the ports, whether through a priority system or manually setting power output on each.
Like most network gear the RJ45 ports are auto-sensing, switching from 10Mbit, to 100Mbit, to 1000Mbit where necessary. To the right, there are four GbE SFP ports, however if you want to use these you'll have to sacrifice four of your RJ45s. If you plug in an SFP cable, the RJ45 port associated with it will automatically disable, including PoE.

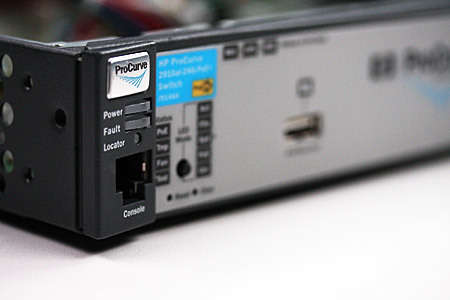

The left features a USB port for diagnosing and secure updating of the device (featured on the rear on the 48 port switch), and RJ45 console port and LEDs for power, fault and device location are here as well. A button on the front cycles the RJ45 jack lights between activity, full duplex, speed, PoE information, although a fifth "user" option is present, marked by HP to be used for "future development".
Reset and clear recovery pinholes are found under these. The first clears error conditions and runs a self test, or in combination with the clear button resets the switch to factory default. The clear button actually wipes out the admin password should you forget and allows access again to the device although those concerned with security can turn this off through the CLI.
Flipping around the back we're presented with redundant and external power supply inputs, the notched IEC cable that's indicative of a Power over Ethernet device and a single screw for earthing. The ProCurve can be built to your needs. It has two live swap-out bays into which three different types of modules can be put a dual 10-GbE CX4 module, a single 10-GbE Interconnect Kit or a dual 10-GbE SFP+ module.
This unit is brand new, never been used. It was purchased by our company but has not been needed ad is just gathering dust. Unit comes with power cables.
