HP ProCurve Gigabit-SX-LC mini-GBIC (J4858C)

P/N 1990-3657

Description:

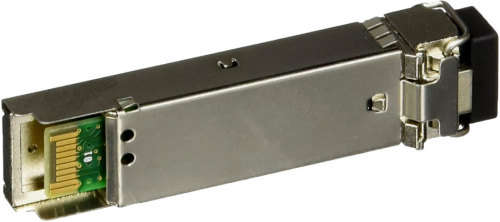

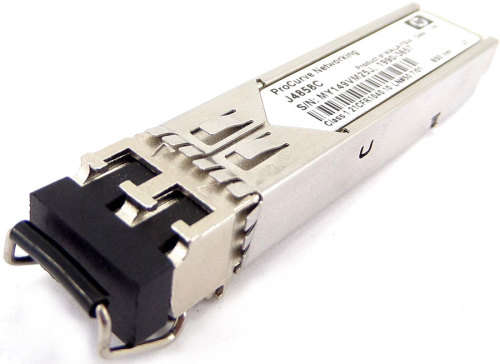

A small form-factor pluggable (SFP) Gigabit-SX transceiver that provides a full-duplex Gigabit solution up to 550m on multimode fiber. The J4858C is compatible with many HP switches. The maximum distance is dependent on the multimode fibre used and the bandwidth.

Ports:

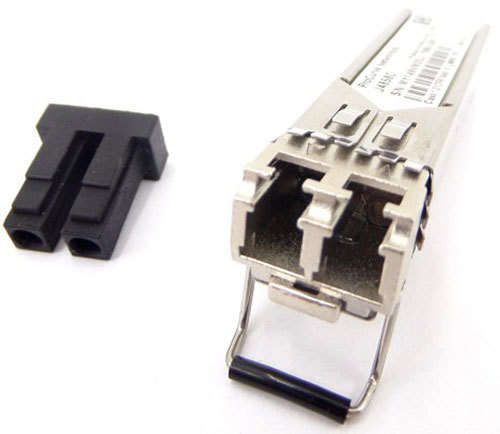

1 LC 1000Base-SX port (IEEE 802.3z Type 1000Base-SX)
Duplex: Full only

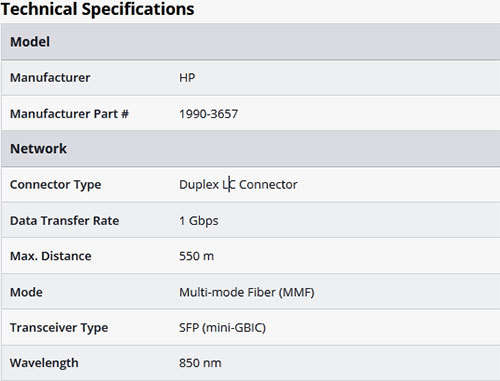

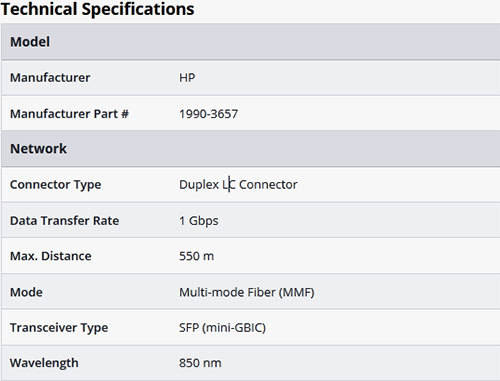

Physical Characteristics:
Dimensions (D x W x H): 5.69 x 1.37 x 1.23 cm
Weight: 0.02 kg

Cabling:
Type: 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index,
low metal content, multimode fiber-optic, complying with ITU-T G.651 and
ISO/IEC 793-2 Type A1b or A1a, respectively

Maximum Distance:
• 220 m (62.5 µm core diameter, 160 MHz/km bandwidth)
• 275 m (62.5 µm core diameter, 200 MHz/km bandwidth)
• 500 m (50 µm core diameter, 400 MHz/km bandwidth)
• 550 m (50 µm core diameter, 500 MHz/km bandwidth)
