Built for enterprise-grade performance in compact form, the HP ProLiant DL20 Gen9 is an ultra-dense 1U rackmount server ideal for small businesses, branch offices, or edge workloads. This model is powered by a 6th Gen Intel Xeon E3-1240 v5 CPU with 16GB ECC DDR4 memory, balancing compute capability with reliability.
With 4 x SFF drive bays and a Smart HBA H240 controller, the DL20 Gen9 supports high-speed SAS drives and RAID configurations. The integrated HP 332i dual-port Gigabit adapter and iLO 4 remote management make this unit ready for seamless network integration and remote deployment in constrained spaces.
Key Features & Benefits
Intel Xeon E3-1240 v5 CPU 4 cores, 8 threads, 3.5GHz base frequency, ideal for application servers and light virtualization
Enterprise-Class ECC DDR4 Memory 16GB Unbuffered DIMMs ensure data integrity in mission-critical workloads
Smart HBA H240 RAID Controller Supports SAS/SATA with RAID 0, 1, and 5 capability for data redundancy and performance
Flexible Storage Expandability 4 x SFF hot-plug drive bays populated with 1 x 300GB SAS for scalable storage solutions
Dual 1GbE Ports HP 332i Adapter provides reliable networking for file sharing, backup, or remote access
Compact 1U Rack Form Factor Space-saving design ideal for remote offices or co-location
iLO 4 Remote Management Full remote provisioning, firmware updates, and server health monitoring via HPE iLO
Ideal Uses
Branch or Remote Office File Server Reliable storage and compute in a space-efficient chassis
Firewall, DHCP, or Web Server Hosting Dual network ports and CPU capabilities support network service deployment
Edge Computing or IoT Gateway Compact, secure, and remotely manageable for edge environments
Virtualization Starter Node Suitable for entry-level Hyper-V, VMware, or Proxmox deployments with room to scale
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional

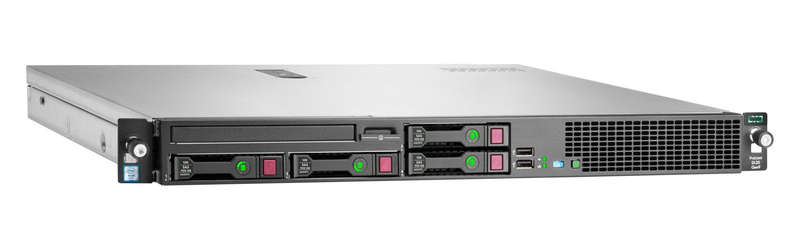

Chassis: HP ProLiant DL20 Gen9 1U Rackmount 4 x SFF hot-plug bays
Processor: Intel Xeon E3-1240 v5 4 cores / 8 threads 3.5GHz 8MB cache 80W
Chipset: Intel C232
Memory: 16GB DDR4 ECC UDIMM 2 x 8GB 2133MHz Max 64GB across 4 slots
Storage: 1 x 300GB SAS 2.5" 10K RPM Hot-plug
Storage Controller: HP Smart HBA H240 12Gb/s RAID 0, 1, 5 supported
Network Adapter: HP Ethernet 1Gb 2-Port 332i Adapter (Broadcom BCM5720)
Expansion Slots:
1 x PCIe 3.0 x8 (Half-length, half-height)
1 x PCIe 3.0 x8 (Half-length, full-height)
Power Supply: 1 x 550W Entry-Level PSU 92% efficiency 80 Plus Silver
Graphics: Integrated Matrox G200 VGA output
Interfaces:
2 x USB 2.0 (front)
2 x USB 3.0 (rear)
1 x internal USB 3.0
1 x VGA
1 x Micro SD slot
System Fans: 3-fan configuration (non-redundant)
Remote Management: HPE iLO 4 RESTful API, Intelligent Provisioning, Insight Online
Form Factor: 1U Height: 4.32 cm | Width: 43.46 cm | Depth: 38.22 cm
Operating Systems Supported: Windows Server, VMware, Red Hat, SUSE, ClearOS
Compliance: UEFI, PCIe 3.0, WOL, ASHRAE A3, USB 3.0
Warranty: 6 Month Carry-in Warranty
What's in the Box: Server, Power Cable
