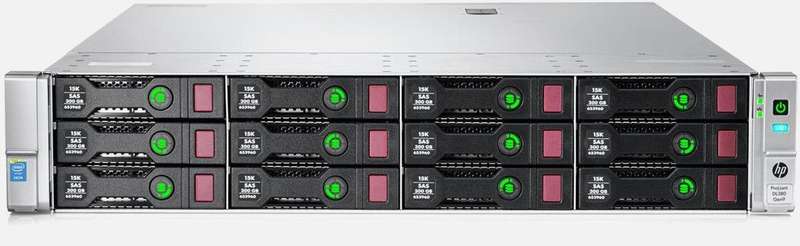

Designed for high-capacity enterprise workloads, the HP ProLiant DL380 Gen9 is a versatile 2U rackmount server equipped with dual Intel Xeon E5-2699 V3 processors and massive hybrid storage. With 128GB DDR4 RAM and a powerful P840 RAID controller, this server is optimized for data-heavy operations like virtualization, analytics, file hosting, and infrastructure scaling.
The unit supports 12 LFF bays in front and 2 LFF bays in rear, pre-installed with 10 x 6TB HDDs and 4 x 1.92TB SSDs, making it ideal for mixed-use environments requiring fast IOPS and large storage throughput. Dual 10Gb SFP+ and quad 1GbE onboard NICs ensure robust connectivity for modern data centers.
Key Features & Benefits
2 x Intel Xeon E5-2699 V3 CPUs 18 cores / 36 threads each, 2.3GHz base, 3.6GHz Turbo
128GB DDR4 ECC Registered RAM Scalable up to 768GB via 24 DIMM slots
10 x 6TB LFF HDD + 4 x 1.92TB SSD Balanced high-capacity and high-speed storage
HP Smart Array P840 RAID Controller 2GB FBWC, 12Gb/s SAS RAID 0/1/5/6/10
4 x 1GbE (HP 331i) + 2 x 10Gb SFP+ (HP 546-FLR) Versatile and high-speed networking
2 x 800W Redundant PSU Hot-swappable power supply units for failover protection
Advanced iLO & OneView Support Secure, remote hardware management included
Hot-swap Fans, Drive Bays & Redundant Cooling Designed for uptime-critical operations
Ideal Uses
Virtualization Environments Host multiple VMs with ease using 36 cores and high RAM scalability
Hybrid Storage Applications Use SSDs for speed and HDDs for bulk storage or backups
Enterprise File Servers Ideal for handling large volumes of file access across users
Data-Intensive Applications Perfect for analytics, surveillance storage, and application servers
Specifications
Condition: Refurbished device with scratches and scuffs. Device has been extensively tested and is fully functional.
Form Factor: 2U Rackmount 28.75" chassis depth (LFF configuration)
Processors:
2 x Intel Xeon E5-2699 V3 18 cores / 36 threads each 2.3GHz base 3.6GHz Turbo 45MB cache per CPU
Memory:
128GB DDR4 ECC RDIMM
24 DIMM slots total Max capacity: 768GB
Storage Configuration:
10 x 6TB LFF SAS HDDs (Hot-Plug)
4 x 1.92TB 2.5" SSDs (Mounted in LFF adapters)
RAID Controller: HP Smart Array P840 12Gb/s SAS 2GB FBWC RAID 0/1/5/6/10
Drive Bays:
Front: 12 x LFF Hot-Swap Bays
Rear: 2 x LFF Bays
Networking:
4 x 1GbE (HP 331i Embedded Quad-Port)
2 x 10Gb SFP+ (HP 546-FLR Dual-Port Adapter)
Management Tools:
HP iLO Advanced
HP OneView & Insight Online
Power Supplies: 2 x 800W Hot-Plug Redundant PSUs 94% efficiency Flexible Slot design
Expansion Slots:
Up to 6 PCIe 3.0 slots (CPU-dependent configuration)
Cooling: Hot-plug redundant fans N+1 Configuration
Ports:
VGA (front optional + rear standard), Serial, 6 x USB 3.0, SD slot
Environmental:
Operating Temp: 5°C to 45°C
Operating Humidity: 1090% RH
Dimensions: 8.73 x 44.55 x 73.02 cm (3.44 x 17.54 x 28.75 in)
Weight: Approx. 23.6 kg
Operating System: Not included (OS can be installed on request)
Warranty: 6 Month Carry-in Warranty
In the Box: Server, 2 x Power Cables
