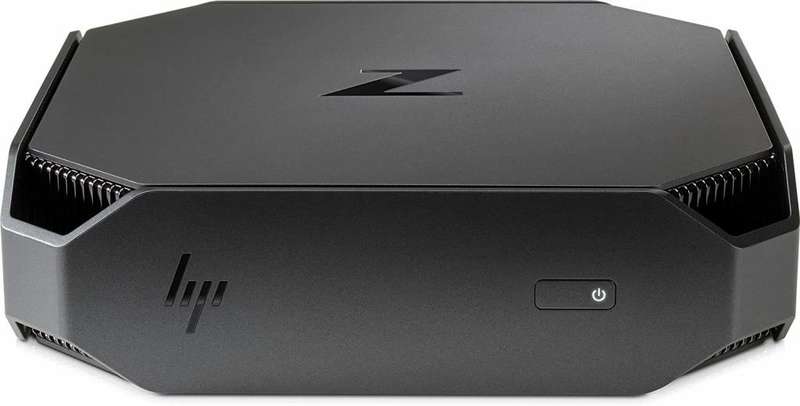

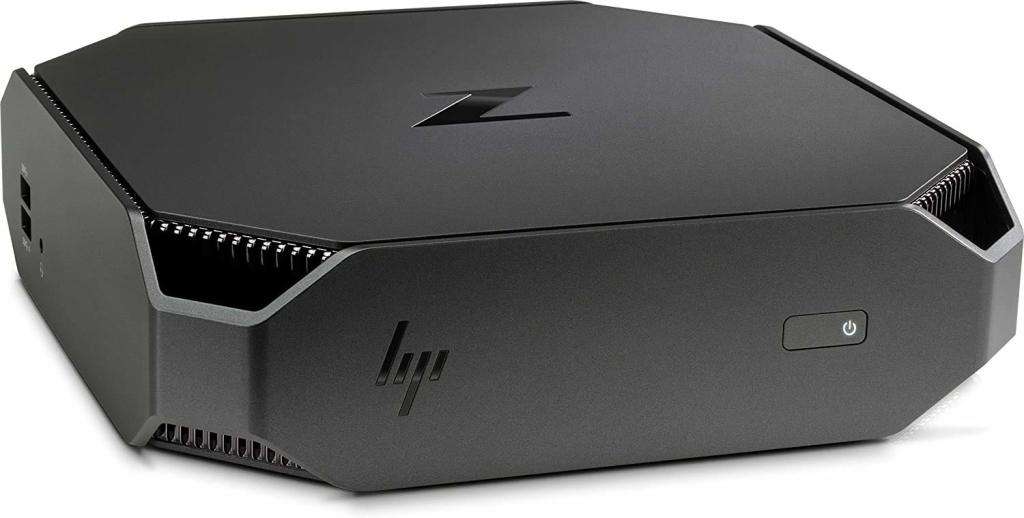

The HP Z2 Mini G3 Workstation is a revolutionary Workstation for CAD that delivers breakthrough power and versatility in a small, elegant design. Made by and for design professionals, the Z2 Mini gives you both performance and reliability for the best CAD experience.
Only at Bargain Hardware can you configure every aspect of this HP Z2 Mini G3 Workstation to meet your price and performance requirements. From SATA & SSD drives to a plethora of processors and graphics cards, every option is available to build your perfect system
.Features & details
Intel i7-6700 4-Core 3.40GHz (4.0GHz Turbo)
Windows 10 Professional 64-bit
Product information
Summary
Max Screen Resolution 3840 x 2160 pixels
Processor 3.4 GHz core_i7
RAM 16 GB DDR4
Hard Drive 256 GB SSD and 1TB NVMe
Chipset Brand NVIDIA
Card Description NVIDIA Quadro M620
Number of USB 3.0 Ports 1
Other Technical Details
Brand HP
Series Z2 Mini G3 Mini Workstation
Item model number Z2 Mini G3
Hardware Platform PC
Intel Core i7-6700 processor with Intel HD Graphics 530¹
4 cores²
Clock speed: 3.4 GHz
Intel Turbo Boost technology 4.0³
8 MB cache
Memory speed: 2133 MT/s
Hyper-threading
Intel vPro technology
TDP: 65 W

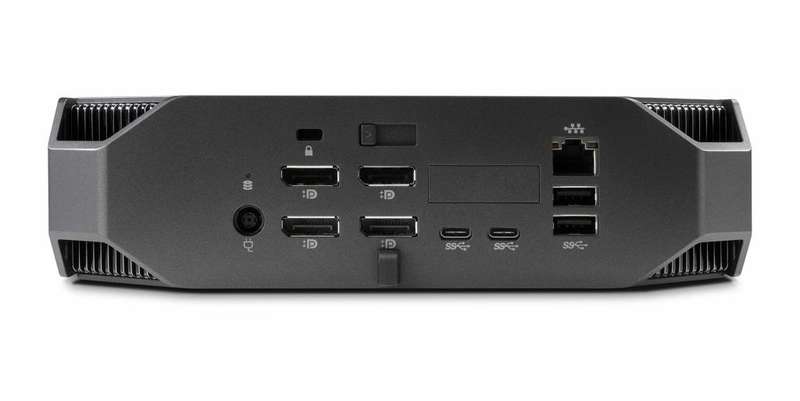

DisplayPort 1.2
Up to 4096 x 2160 x 30 bpp at 60 Hz
High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST) supported
HDMI 2.0
Up to 4096 x 2160 x 30 bpp at 60 Hz
Dual Link DVI(I)
Up to 2560 x 1600 x 32 bpp at 60 Hz
Single Link-DVI(I)
Up to 1920 x 1200 x 32 bpp at 60 Hz
VGA
2048 × 1536 × 32 bpp at 85 Hz
Intel HD Graphics P530 (on select processors)
Intel HD Graphics 530
Entry 3D
NVIDIA Quadro M620 2 GB Graphics
Specification
Description
System board form factor
200 mm x 200 mm (7.87 x 7.87 in)
Processor socket
Single LGA 1151
CPU bus speed
DMI link between CPU & PCH (Performance comparable to PCIe Gen3 x4)
Chipset
Intel PCH C236
Memory expansion slots
(2) SODIMM DDR4 memory slots
Memory type supported
DDR4, UDIMM (Unbuffered), ECC and non-ECC
Memory modes
Non-interleaved for single channel
Interleaved when both channels are populated
Memory speed supported
2133 MHz DDR4 for Skylake processors; pre-enabled for 2400 MHz DDR4
Maximum memory
32 GB
NOTE: Maximum memory capacities assume 64-bit operating systems, such as Windows 7 Professional 64-bit or Red Hat Linux 64-bit.
Memory Protection
ECC available on data
NOTE: Requires ECC DIMMs to be installed, as well as a CPU that supports ECC.
Memory configuration (supported)
4 GB, 8 GB and 16 GB non-ECC/8 GB and 16 GB ECC unbuffered DIMMs supported
ECC and non-ECC memory DIMMs cannot be mixed on the same system.
SATA
Integrated (1) Serial ATA interface (6Gb/s SATA)
Integrated graphics
Intel HD Graphics P530 (on select processors)
A region of system memory is reserved and dedicated to the graphics display.
Microsoft DirectX 12.1, OpenGL 4.4, and OpenCL 2.0 supported on Intel HD Graphics P530
DP 1.2 graphics ports integrated
Up to 3 simultaneous displays supported across DP outputs
Maximum resolution: 4096 x 2160 at 60 Hz
Network controller
Integrated Ethernet PHY Connection I219LM
Management capabilities: WOL, PXE 2.1, and AMT 11.0
Serial
(1) rear port (configurable option)
Flash ROM
Yes
CPU fan header
Yes
Additional CPU/GFX Cooler (Z2 Mini Performance only)
Front control panel/speaker header
Side In/Out
CMOS battery holder - lithium
Yes
Integrated trusted platform module
TPM 2.0
Power supply headers no power supply for this unit it comes without power supply
Yes
Single DC-in jack for external power supplies
Power switch, power LED, and hard drive LED header
Power and failure LED combined in the front power switch
HDD LED and DC-in LED combined within one port on the Rear In/Out. The LED is lit once the AC power is plugged in. As soon as the system is booted up, the LED functions as a standard HDD activity LED.
Clear password jumper
Yes
