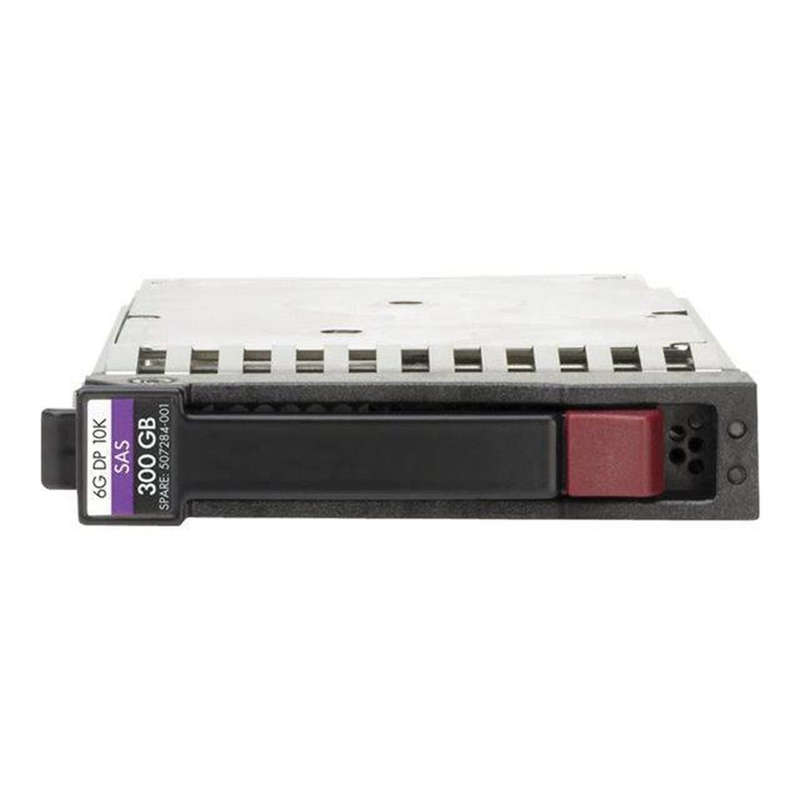

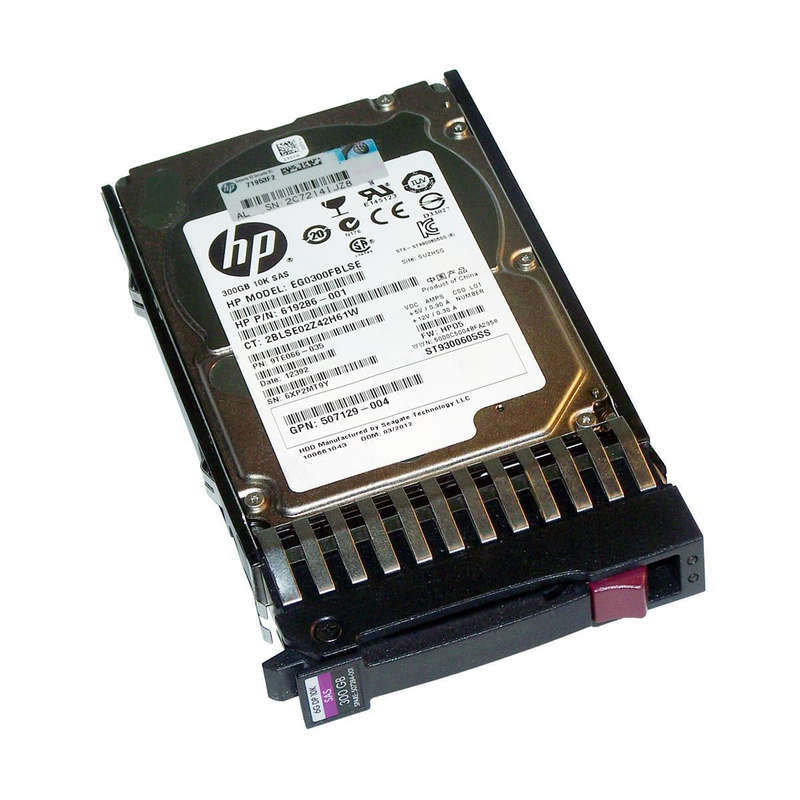

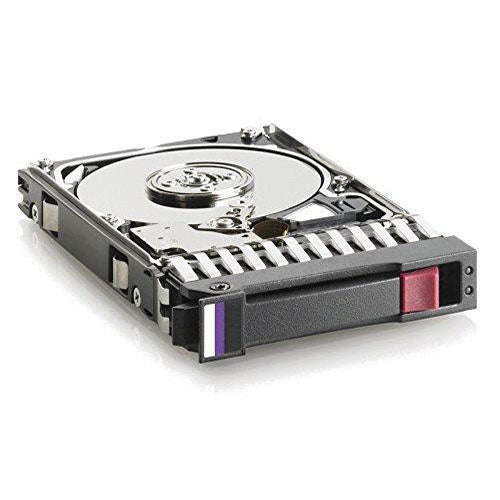

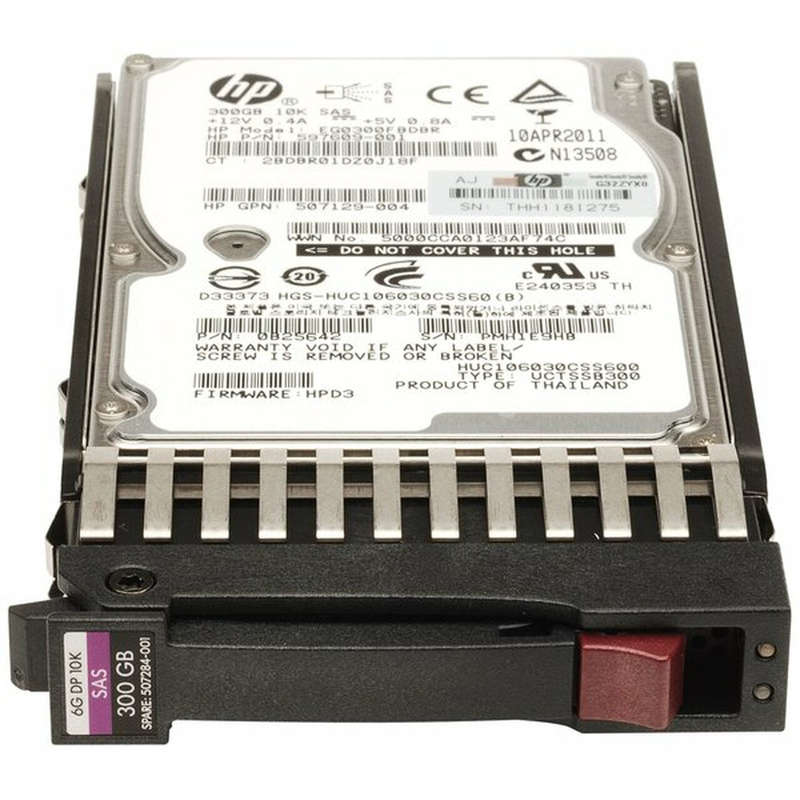

HPE 507129-004 300GB 10000RPM 2.5inch Small Form Factor Dual Port SAS-6Gbps Hot-Swap Enterprise Hard Drive for ProLiant Generation1 to Generation7 Servers and Storage Arrays
The HPE 507129-004 Enterprise Hard Drive has a 2.5inch form factor and 6Gbps external data transfer rate. It has a spindle speed up to 10000RPM and a 300GB capacity. This Small Form Factor Dual Port Hard Drive uses a SAS-6Gbps interface and has Lifetime Warranty from us.
Specification
Brand: HPE
MPN: 507129-004
Option Part Number: 507127-B21
Spare Part Number: 507284-001
Assembly Part Number: 507119-002
Assembly Part Number: 518194-002
Assembly Part Number: 518011-002
Assembly Part Number: 507119-004
Assembly Part Number: 518194-004
Assembly Part Number: 597609-001
Assembly Part Number: 599476-001
Assembly Part Number: 619286-001
Assembly Part Number: 689287-001
Assembly Part Number: 693569-001
Model Number: DG0300FAMWN
Model Number: DG0300FARVV
Model Number: EG0300FARTT
Model Number: EG0300FAWHV
Model Number: EG0300FAWJD
Model Number: EG0300FBDBR
Model Number: EG0300FBDSP
Model Number: EG0300FBLSE
Model Number: EG0300FCSPH
Model Number: EG0300FCVBF
HPE GPN: 507129-004
SmartBuy Number: 507127-S21
General
Device Type: Hard Drive - Hot-Swap
Capacity: 300 GB
Form Factor: 2.5 Inch SFF
Interface: SAS 6Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Carrier Type: Standard Carrier
Workload: Enterprise
Features: Dual Port
Bundled with: HPE Standard Carrier
Enclosure Type: Hot-Swap
Performance
Drive Transfer Rate: 600 MBps (external)
Spindle Speed: 10000 rpm
Seek Time: 4 ms (average) / 7.45 ms (max)
Track-to-Track Seek Time: 0.2 ms
Expansion & Connectivity
Interfaces: 1 x SAS 6Gb/s (Serial Attached SCSI 2)
Compatible Bays: 2.5" SFF
Product Dimensions & Weight
Width: 3.11 inch (7.9 cm)
Height: 0.63 inch (1.60 cm)
Depth: 5.45 inch (13.8 cm)
Weight: 1.60 lbs
Environmental Parameters
Max Operating Temperature: 35 °C
Min Operating Temperature: 10 °C
Compatibility Information
Designed for
HPE Integrity BL Series: BL860c i2, BL870c i2, BL890c i2 Servers
HPE ProLiant BL Series: BL460c G6, BL460c G7, BL465c G6, BL465c G7, BL620C G7, BL680c G7, BL685c G6, BL685c G7 Servers
HPE ProLiant DL Series: DL160 G6, DL160se G6, DL165 G7, DL165 G7 Performance, DL180 G6, DL320 G6, DL360 G6, DL360 G6 Base, DL360 G6 Efficiency, DL360 G6 Entry, DL360 G6 Performance, DL360 G7, DL360 G7 Base, DL360 G7 Central Management Server, DL360 G7 Efficiency, DL360 G7 Entry, DL360 G7 Performance, DL370 G6, DL370 G6 Base, DL370 G6 High Performance, DL370 G6 Performance, DL380 G6, DL380 G6 Base, DL380 G6 Entry, DL380 G6 High Efficiency, DL380 G6 Performance, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL385 G6, DL385 G6 Base, DL385 G6 Entry, DL385 G6 High Performance, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL580 G5 Highly Serviceable Tower, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, DL585 G5 Performance, DL585 G6, DL585 G6 Base, DL585 G6 Performance, DL585 G7, DL585 G7 Base, DL585 G7 Performance, DL785 G6, DL785 G6 Base, DL785 G6 Performance, DL980 G7 Servers
HPE ProLiant ML Series: ML110 G7, ML350 G6, ML350 G6 Base, ML350 G6 Performance, ML370 G6, ML370 G6 Base, ML370 G6 Entry Servers
HPE ProLiant WS Series: WS460c G6 Workstation Blade
HPE Modular Smart Array: P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit
HPE StorageWorks D2200sb PCIe Storage Blade
HPE StorageWorks Disk Enclosure D2700
HPE StorageWorks Modular Smart Array: 2324fc G2 Dual Controller, 2324sa G2 DL380 G6 Package Cluster, 2324sa G2 Dual Controller, 70 Dual Domain, P2000 2.5-in Drive Bay Chassis and P2000 G3 FC/iSCSI Dual Combo Controller SFF Array
HPE StorageWorks Network Storage Blade X1800sb G2
HPE StorageWorks Network Storage Gateway X3800sb G2
HPE StorageWorks Network Storage System: X1600, X1600 292GB SAS Model, X1600 3TB SAS Model, X1600 5.4TB SAS Model, X1600 7.5TB SAS Model, X1600 G2, X1800, X1800 2.4TB SAS Model, X1800 292GB SAS Model, X1800 3.6TB SAS Model and X1800 G2
Product Features
HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second and accelerate data transfer (I/O) speeds. Drives are backed by over 3.35 million hours of the industry's most rigorous testing and qualification program ensuring customer's reliable, rugged drives.
Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise d...
