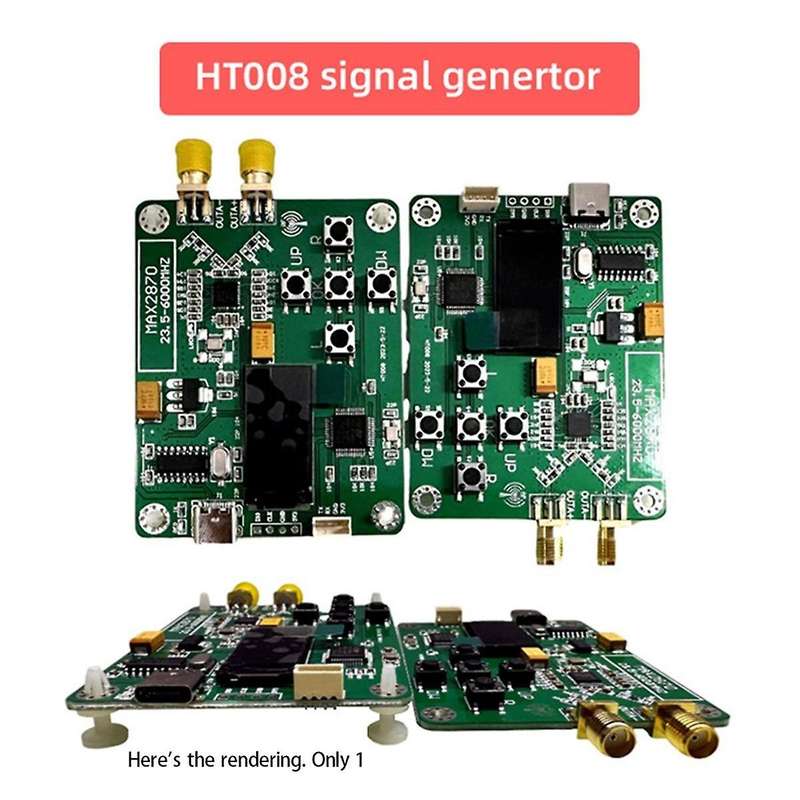

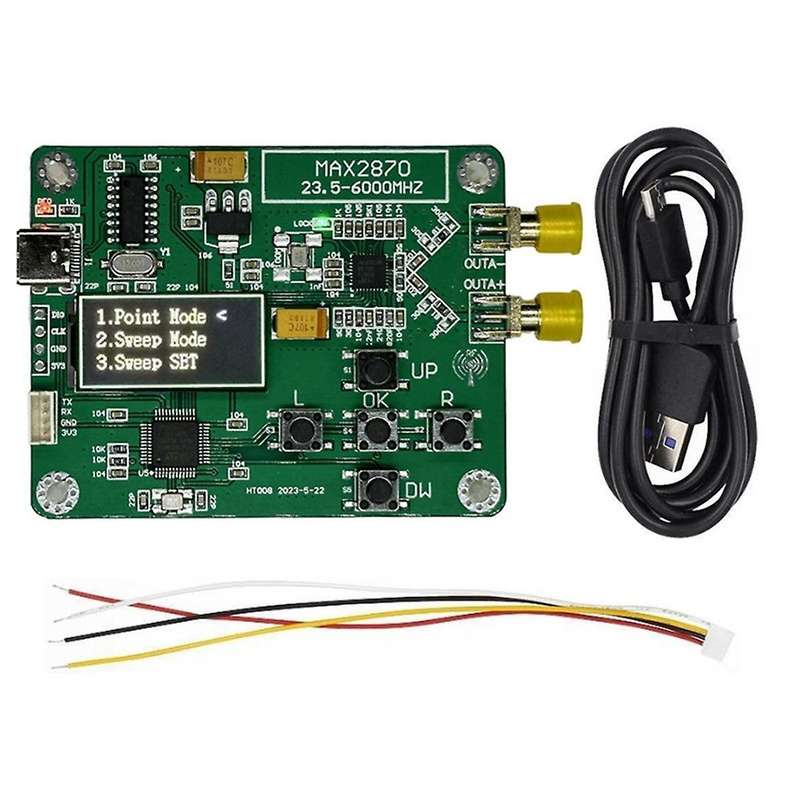

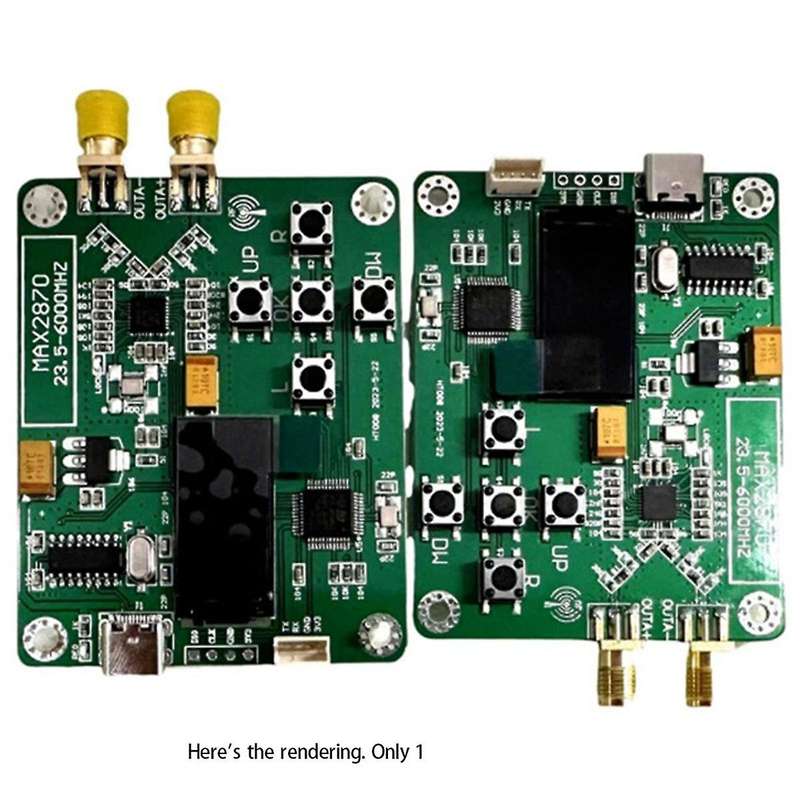

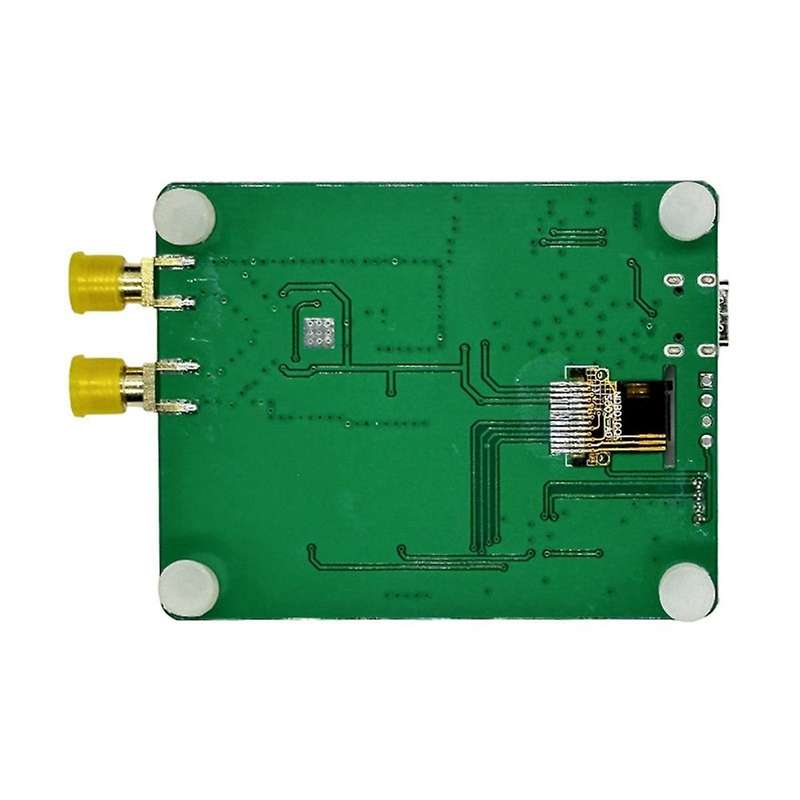

HT008 Signal Source MAX2870 STM32 23.5-6000Mhz Signal Generator Signal Source Supports Point/Sweep M

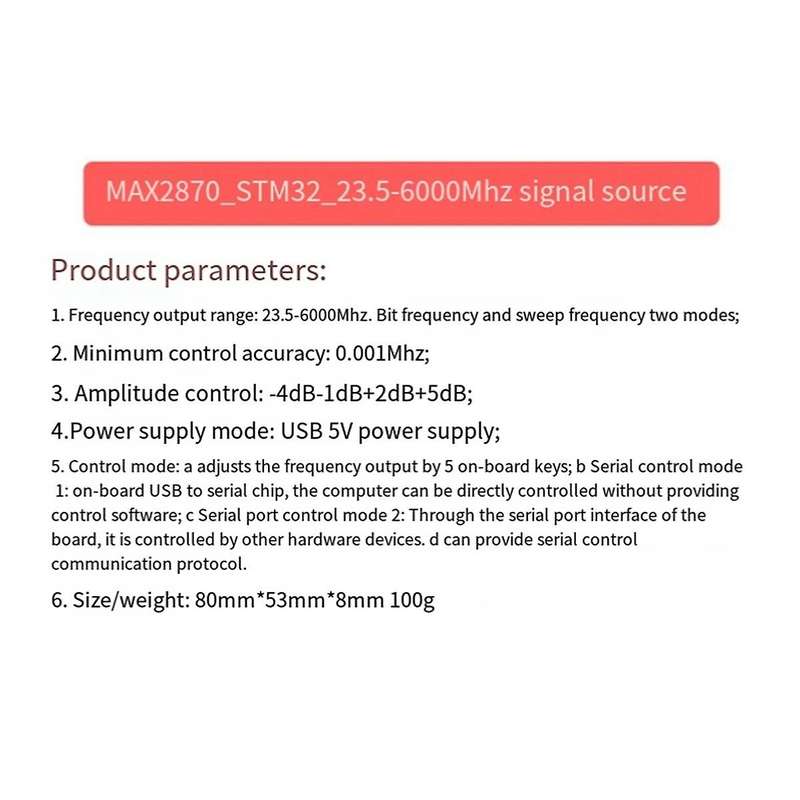

1. Frequency output range: 23.5 - 6000MHz, with point\/sweep mode2. Minimum control accuracy: 0.001MHz3. Amplitude control: -4dB, -1dB, +2dB, +5dB4. Adjust frequency output via 5 onboard buttons.5. Serial port control 1: Onboard USB to serial port chip can be directly controlled by the computer without providing control software.Serial port control 2: controlled by other hardware devices through the board serial port interface.type function signal generatorModel HT008Processor speed NSupply current NPower supply voltage 5VPowerNUse MAX2870ETJ+ 23.5-6000Mhz signal sourcePower supply : USB5V power supplyColour:greenMaterial:PCSize: 8 x 5.3cmPackage Contents:1 x Function Signal Generator1 x serial cable1 x type-c USB data cableOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
