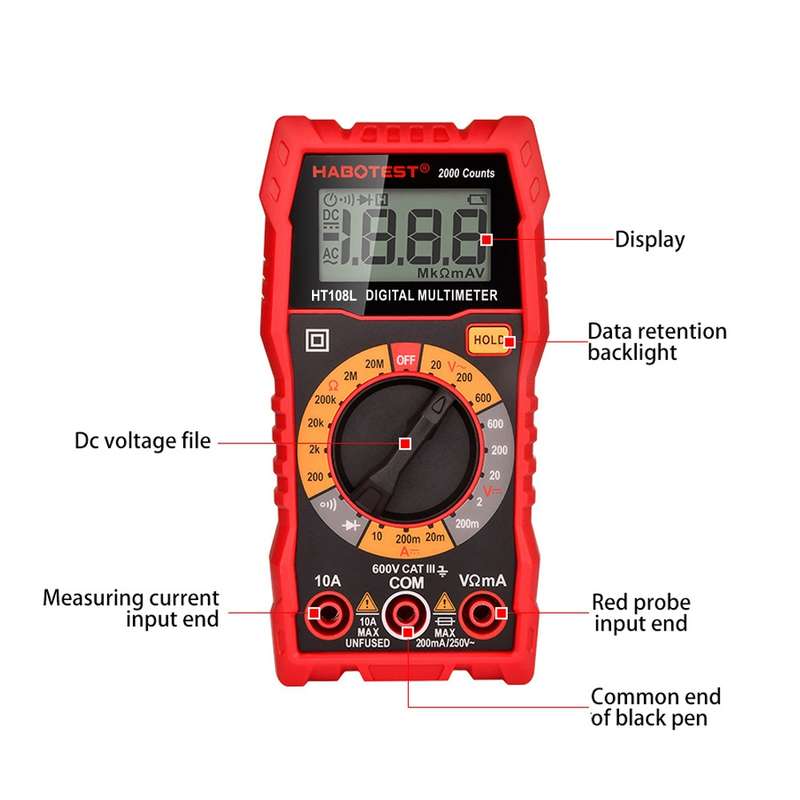

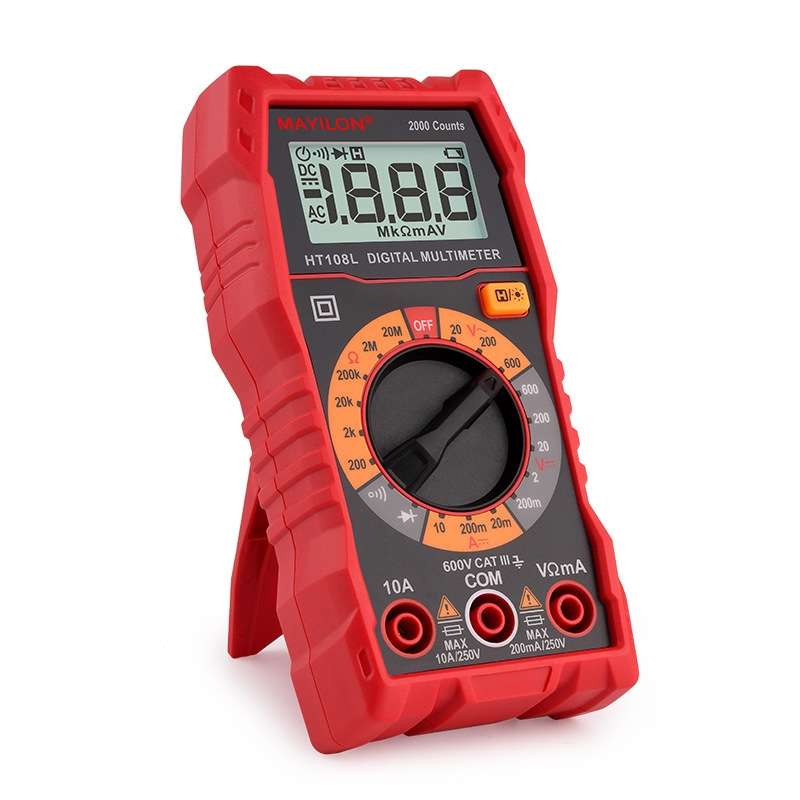

HT108L 600V 10A LCD Digital Multimeter DC Voltage Diode Frequency Multitester Current Tester

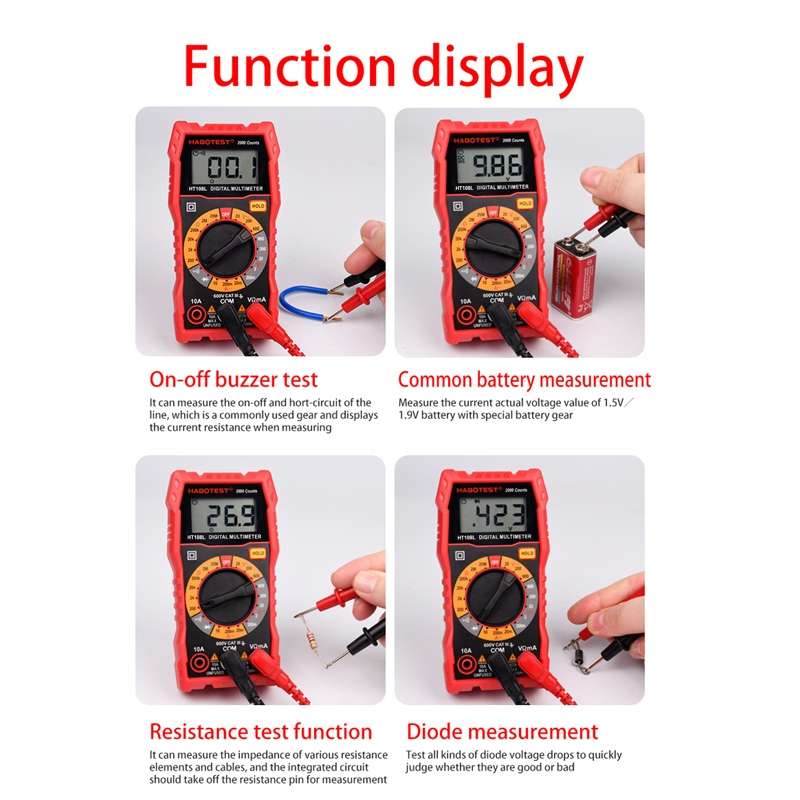

1. Multi-function: It can test AC and DC voltage, DC current, resistance, continuity, and diodes. It is lightweight and fully functional.
2. Precision circuit board and overload protection: Equipped with overload protection, quick voltage test, interference shielding, continuity test up to 30ￎﾩ. If overloaded, OL will be displayed on the LCD screen.
3. More function options: After enhanced insulation protection testing to ensure your life safety, it has low battery indication, data retention, automatic power-off function, and clear display of complete symbols.
4. Easy to use, clear readings, low power consumption, and rubber protection to prevent falling.

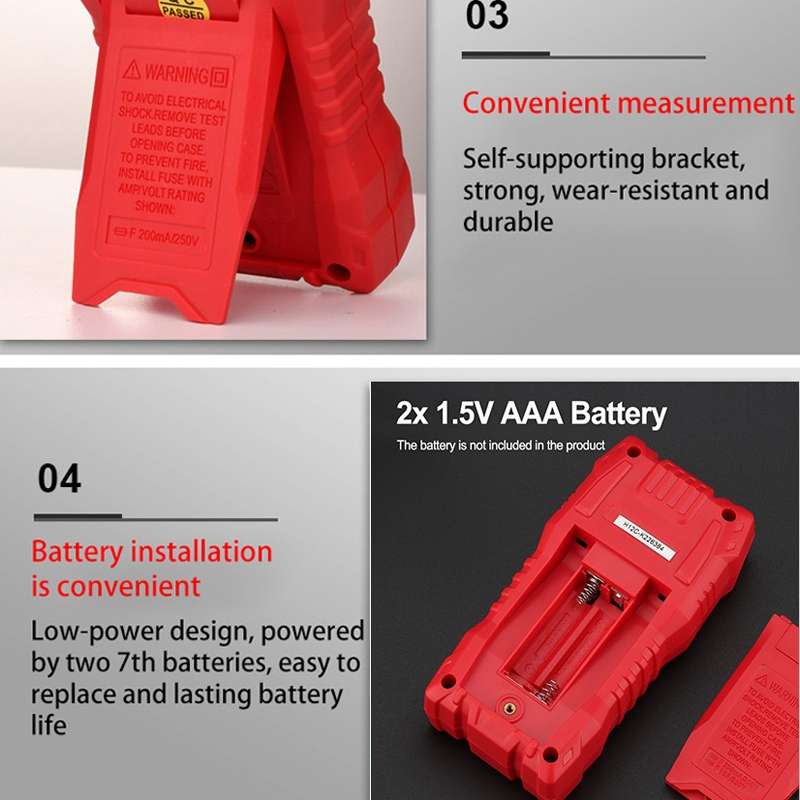

5. There is a bracket at the rear that can support the multimeter and collect test probes for your convenience.
6. Backlit LCD screen, easy to operate in low-light environments.

Specification:
1. AC voltage: 20V/200V/600V
2. DC voltage: 200mV/2V/20V/200V/600V
3. AC current: Not applicable
4. DC current: 20mA/200mA/10A
5. Measuring resistance range: 200ￎﾩ/2kￎﾩ/20kￎﾩ/200kￎﾩ/2Mￎﾩ/20Mￎﾩ
6. Operation mode: manual
7. Measuring inductance range: Not applicable
8. Display type: digital display
9. Measuring capacitance range: not applicable
10. Working temperature: 0-40 degrees Celsius
11. Display: 2000 counts
12. True valid value: Yes
13. Diode/Continuity: Yes
14. Data retention: Yes

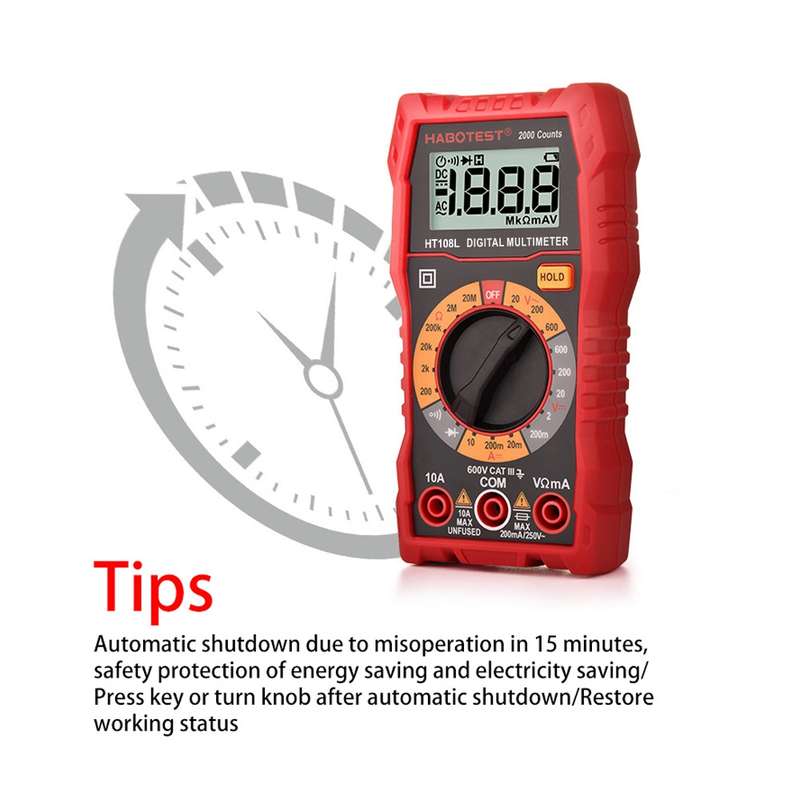

15. Automatic power off: Yes
16. Low battery indicator: Yes
17. Backlight: Yes
18. Weight: about 105 grams
19. Power supply: 2 AAA (1.5V) batteries (not included)

Packing list:

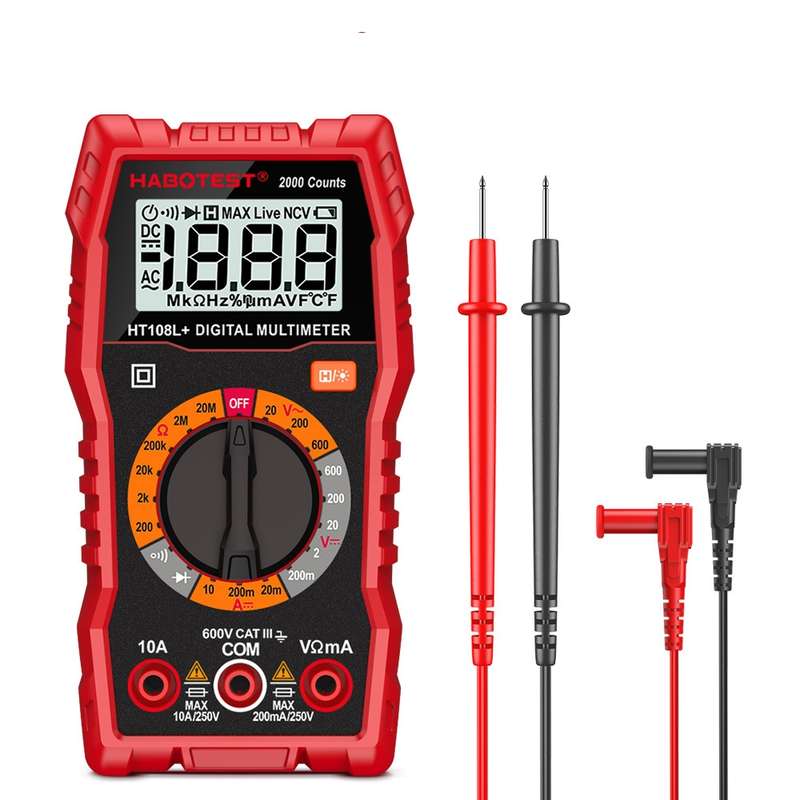

1 x digital multimeter (battery not included)
1 x test lead
1 x instruction manual
