SELECTED OPTION:
MODEL: HT206D
Description:

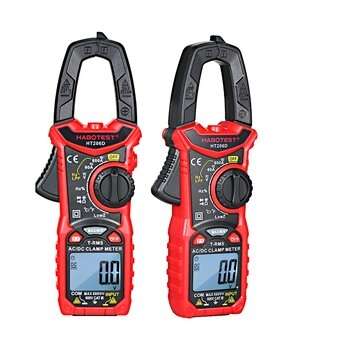

The new generation of high-performance digital clamp meter makes your work easier, more efficient and safer. Measurable AC/DC voltage, AC/DC current, frequency, duty cycle, resistance, temperature, diode, continuity, NCV, etc.
Features:
--Made of high-quality materials, it is durable, very practical, wear-resistant and stable in performance.
--It features hold result and max value buttons that makes it quicker and easier to use.
--A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
--LCD Display: Ultra-clear display, clear reading, easy to read the values when you operate.
--Hold and backlight button:The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring.
--Avoid hazardous situations by using the convenient clamp to safely measure AC currents without having to strip a cord or break a circuit.
--Auto power off: no operation in 15 minutes. The instrument will shut down automatically to save battery energy.
--Multifunctional: Accurate AC/DC voltage, AC/DC current, frequency, duty cycle, capacitance, resistance, temperature, diode, continuity, NCV, etc.
--Wide range of applications, ideal for home and professional use, automotive, home and industrial electrical troubleshooting.
Specifications:
Brand Name: HABOTEST
Color: Red
Model: HT206A/HT206B/HT206D(optional)
Material: ABS
Display: LCD Display
Jaw Opening: 25cm
DC voltage: 600mV/6V/60V/600V(±0.5%reading+5)
AC voltage: 6V/60V/600V(±1.0%reading+5)
AC current: 6A/60A/600A(±2.5%reading+8)
Resistance: 600/6K/60K/600K/6M/60M(±1.0%reading+5)
Duty cycle: 1-99%
Frequency(Hz):10Hz~10MHZ
Maximum count: 6000
Temperature: -40~1000a / -40~1832a
Power Supply: 2x 1.5V AAA Batteries (Not Included)
Operating Temperature & Humidity: 0-40a (<80%RH ,<0a non-condensing)
Storage Temperature & Humidit: -10-60a (<70%RH,remove the battery)
MAX.Voltage between terminals and earth ground: 600V
Over range indication: it displays OL
Continuity: orange backlight on
Type:
HT206A(AC)
Item weight: 190g/0.418lb
Item size: 19.3x7.3x3.4cm / 7.6x2.9x1.3in
Package weight: 377g/0.83lb
Package size: 22.5x11.5x4.5cm/8.86x4.53x1.77in
HT206B(AC)
Item weight: 191g/0.42lb
Item size: 19.3x7.3x3.4cm / 7.6x2.9x1.3in
Package weight: 392g/0.86lb
Package size: 22.5x11.5x4.5cm/8.86x4.53x1.77in
HT206D(AC/DC)
Item weight: 194g/0.43lb
Item size: 19.3x7.3x3.4cm / 7.6x2.9x1.3in
Package weight: 395g/0.87lb
Package size: 22.5x11.5x4.5cm/8.86x4.53x1.77in
Package includes:
1 x Digital clamp meterNOTE: Only HT206D can measure DC current
1 x User Manual(English)
1 x Pair of Test Leads
1 x Temperature Probe
Details Pictures:
